on:
Condition: 100% Brand New
Item Type: Camera Converter
Material: Zinc Alloy
Color: As picture shown
Operating Voltage: 9-16V
Operating Current: <10mA
Operating Temperature: -10℃ - 70℃
Relative Humidity: ≤ 95%
Voltage Output: DC12V

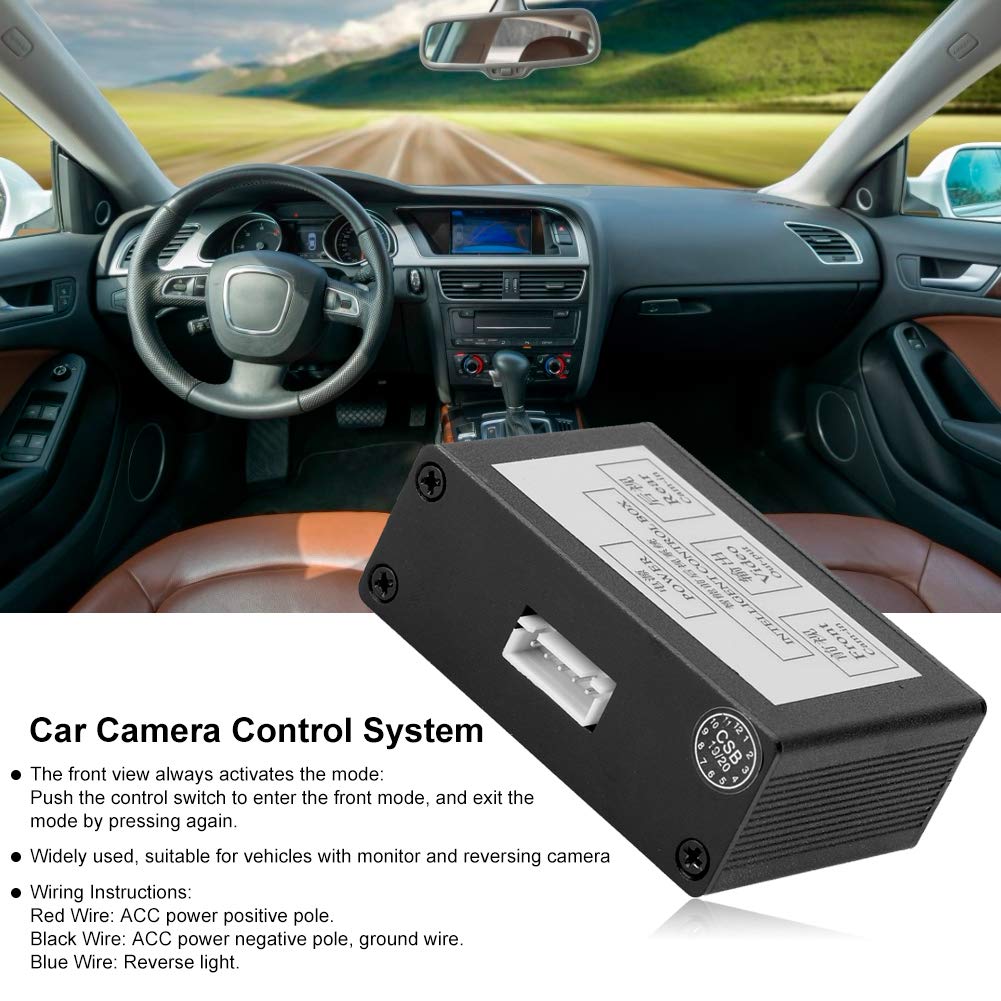

Wiring Instructions:
Red Wire: ACC power positive pole.
Black Wire: ACC power negative pole, ground wire.
Blue Wire: Reverse light.
Application:
As long as the car with a display (such as for android navigation, rearview mirror display, and the factory's own screen needs to be decoded before use), and with a reverse camera, all can be used, the ordinary display only one reversing camera signal input, after installing the switcher can be an additional front camera signal input, it had no effect on the original screen
Package List：
1 x Camera Converter
4 x Power Cable
1 x Insruction
Note:
1.The small red wire at the temporary input port of the camera video is connected to the positive pole of the front and rear camera power supply respectively.
2.The small red wire of the output port is connected to the trigger wire of the display screen. If the original trigger line of the display screen is connected to the inverted headlight, it should be disconnected from the backlight firstly and then connected to the small red line.
3.Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Camera Switch,Camera Converter,Smart Car Parking Camera Converter Front Rear View Video Switch Channel Control Box Adapter Suitable for Vehicles With Monitor and Reversing Camera
$82.99

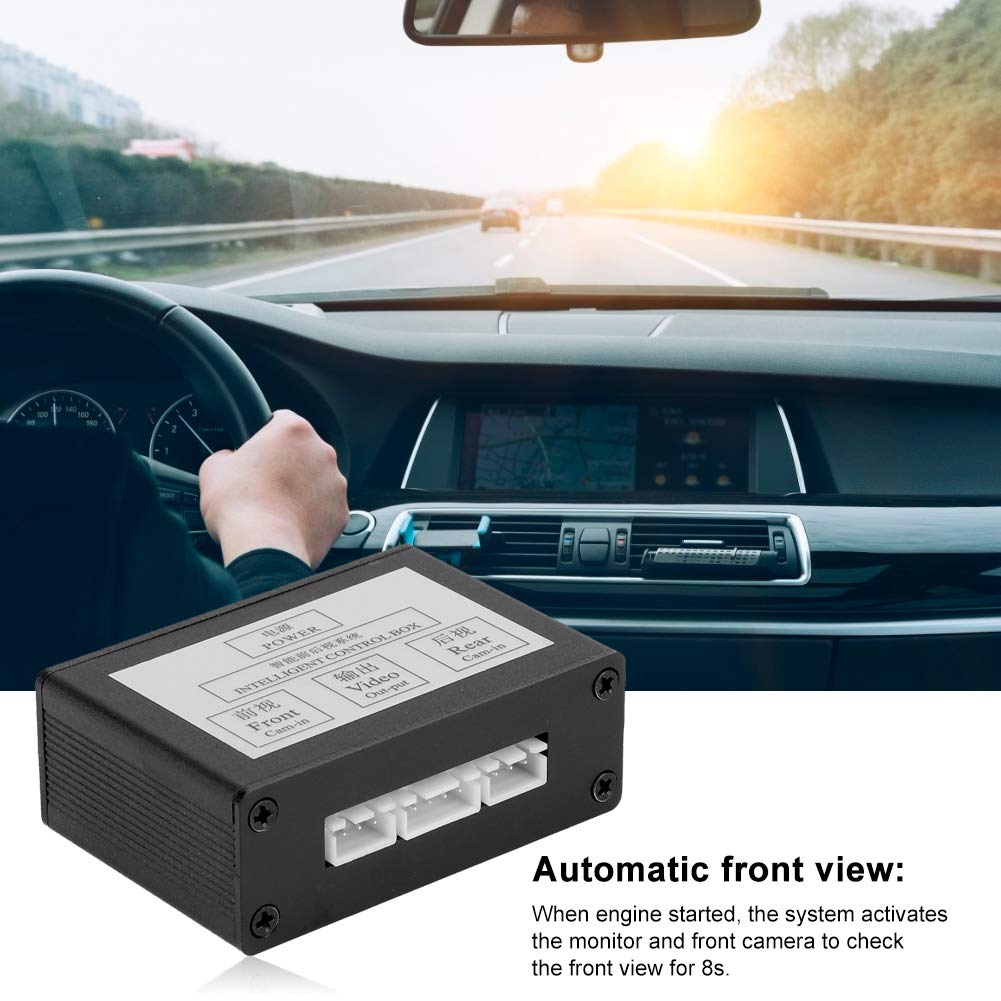

- FeaturesWhen reversing, the system automatically activated rear view camera, and switches to the front view of the video camera in 15 seconds, then stops.When the engine is started, the system activates the monitor and the front camera to check the front view for 8 seconds, then turn it off.
- High PerformancePush the control switch to enter the front mode, in this mode, the system will monitor and activate the front of the camera at all times. Exit the mode by pressing the control switch again.
- Wide ApplicationWidely used, suitable for vehicles with monitor and reversing camera, it has no impact to oringal monitor.
- Simple To InstallSimple installation, no complicated tools required, it is convenient to use.
- What You Will GetWe stand behind all of our them with a 100% product guarantee and promise to give you the best in customer care! If you have any issue about the item, please contact us by e-mail, we will try our best within 24 hours to reply
In stock
Additional information
| Weight | 0.203 kg |
|---|---|
| Brand | CHICIRIS |
| EAN | 9134821018461 |
