This M6013 is auto-ranging capacitor capacitance meter. Using 128*64 LCD, can display 5 digit reading. Large range of measuring 0.01pF to 470mF(470000uF) capacitance, which enough for DIY user and professional engineer usage. Features: New large 128*64 LCD, can display 5 digit reading. Larger measuring range, V2 can read up to 470mF. More stable on reading, (with auto running averaging function, can read pF more stable and accuracy). Reading a 2200uF capacitance only takes ~0.2s. Suitable for DIY user and professional engineer usage. Can use mirco USB as external powerifications: Color: Orange Accuracy: Up to 1% (detail on above table) High Resolution: 5 digit Measuring Voltage: 80 Hours Size: 14.5*8*3cm/5.7*3.1*1.2in Weight: Approx 217g/7.7oz Range–Accuracy(After zero,test1nf,1uf,1000uf)–Refresh Time(Manual Mode) ;Auto mode take 0 to 2s, It also depends on the capacitance of the measurement Large capacitors require more response time 0.01pF to 47.000nF–1%+2Digit– 0.2s to 1s 47.00nF to 47.000uF–1%+1Digit–0.2s to 2s 47.00uF to 470.00mF–1 to 3%+1Digit–0.2s to 30sPackage list: 1 * Capacitance Meter ( Battery not included) 2 * Test Clips 1 * User Manual

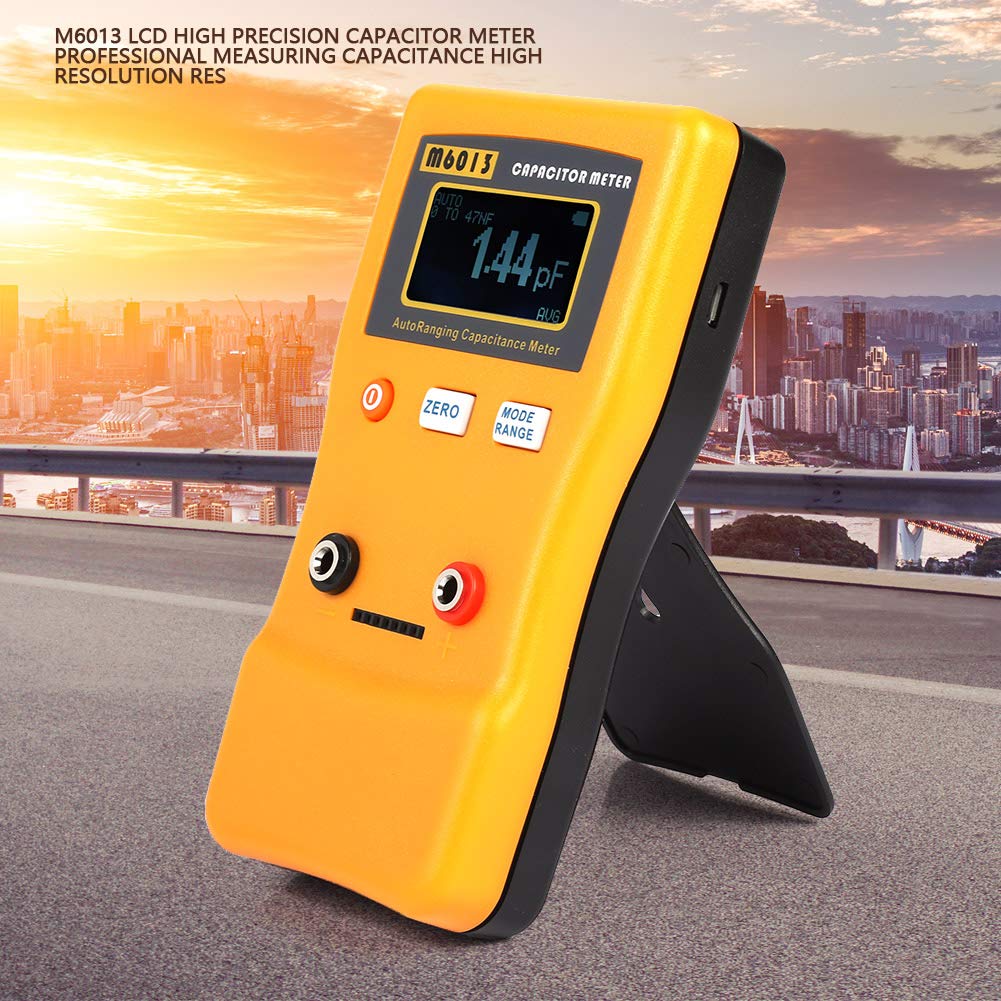

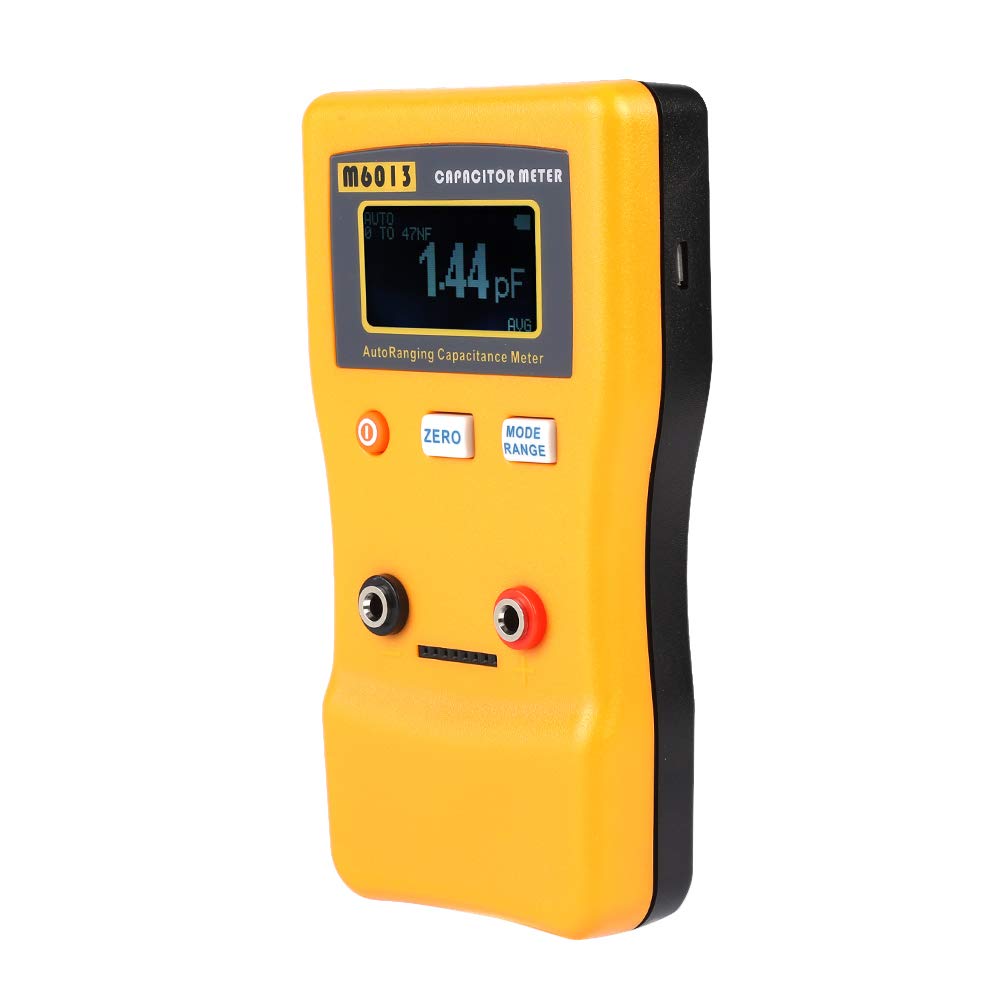

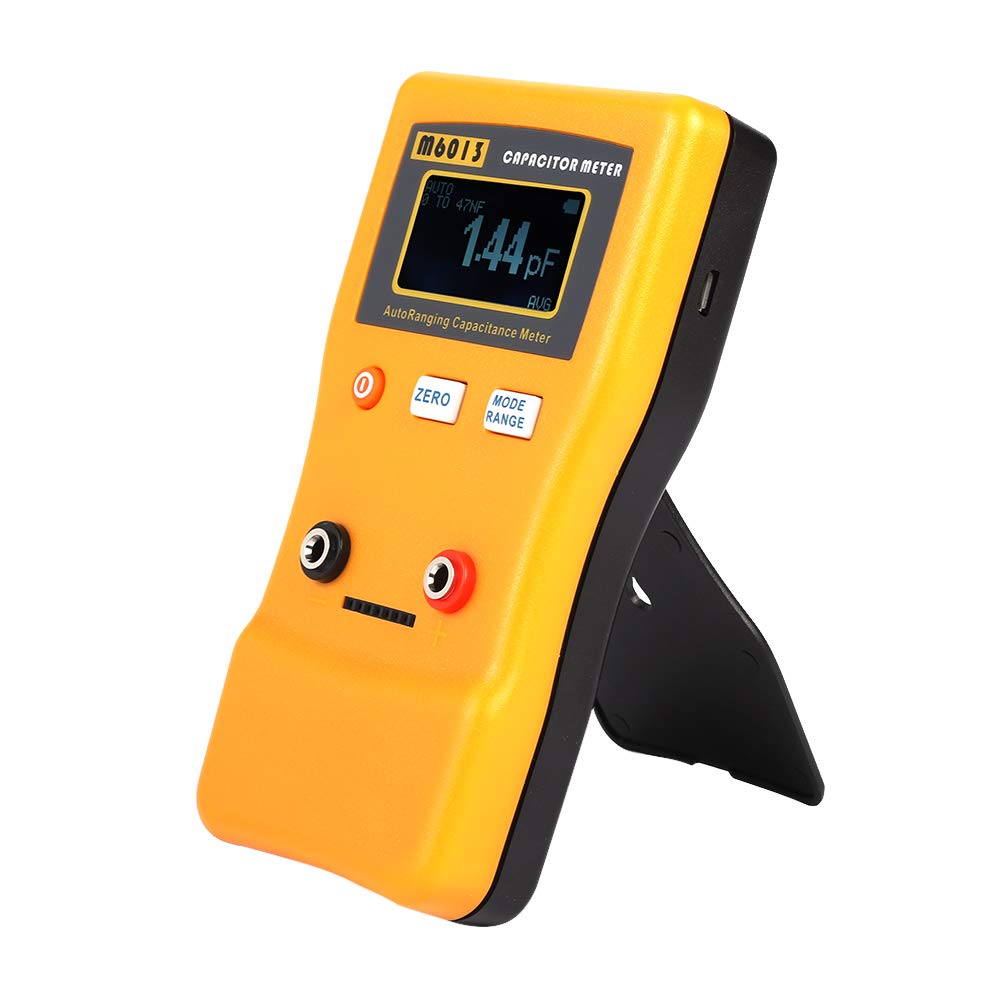

Capacitance Meter, Akozon M6013 Auto-ranging Capacitor Meter 5 Digit Measuring Backlight Measuring Capacitance Resistance Circuit Tester
$107.99
- 【Application】This automatic range capacity meter is suitable for professional engineers and home improvement for voltage measurement and capacity measurement.
- 【8-pin Socket】8-pin socket is used for capacity tests, which makes measurement more convenient. A miniaturized MIRCO USB interface was added to support the external power supply.
- 【Powerful】M6013 V2.0 automatic range capacity meter, test speed, high precision up to 1%, large-scale test V2 can read 0.01pF to 470mF (470mF = 470000uF) capacitor, read 2200uF capacitor only about 0.2s.
- 【Accurate reading】AVG moving average function can start automatically, after the test is stable, you can read the value more accurately; The automatic area and the manual area can be activated. One button clear button for more stable and accurate tests and fewer errors.
- 【LCD Display】This capacitor measuring device is equipped with a new large matrix LCD screen with 128 x 64 pixels, a new housing and a support design. Automatic switch-off function to save energy.
In stock
Additional information
| Weight | 0.22 kg |
|---|---|
| brand | Akozon |
| dimensions | 14.5 x 8 x 3 cm; 217 Grams |
