Specification: Item Type: Brushed Motor Material: Metal Optional Type: 12T, 21T, 29T, 35T Size: 550 Color: Black Axle Diameter: D Axle 3.175mm Output Shaft Length: Approx. 15mm / 0.6in Outer Diameter: Approx. 36mm / 1.4in Body Length: Approx. 60mm / 2.4in Distance of Mounting Hole: Approx. 25mm / 1in Screw Hole: Approx. 3mm / 0.1in Fitment: Fit for 4 Series Car Model Fit for 6 Series Car Model 12T No load Maximum efficiency Maximum Output Power Rotor blocked Current(A) 3 14.4 36.2 70 Efficiency(%) 73 51 Output Power(W) 78 137 RPM 22500 18600 112500 Torque(G) 410 1190 2370 Voltages(V) 7.4V Temperature ‑10‑50℃ 21T No load Maximum efficiency Maximum Output Power Rotor blocked Current(A) 1 7 24.7 48.3 Efficiency(%) 77 49.5 Output Power(W) 40 91 RPM 12900 11300 6450 Torque(G) 350 1370 2730 Voltages(V) 7.4V Temperature ‑10‑50℃ 29T No load Maximum efficiency Maximum Output Power Rotor blocked Current(A) 1 6.3 20 39.1 Efficiency(%) 72.8 47.8 Output Power(W) 34 71 RPM 10500 9050 5250 Torque(G) 370 1320 2630 Voltages(V) 7.4V Temperature ‑10‑50℃ 35T No load Maximum efficiency Maximum Output Power Rotor blocked Current(A) 0.6 3.8 12.5 24.3 Efficiency(%) 76.1 49.7 Output Power(W) 22 46 RPM 7900 6830 3950 Torque(G) 310 1130 2260 Voltages(V) 7.4V Temperature ‑10‑50℃ Package List: 1 x Brushed Motor

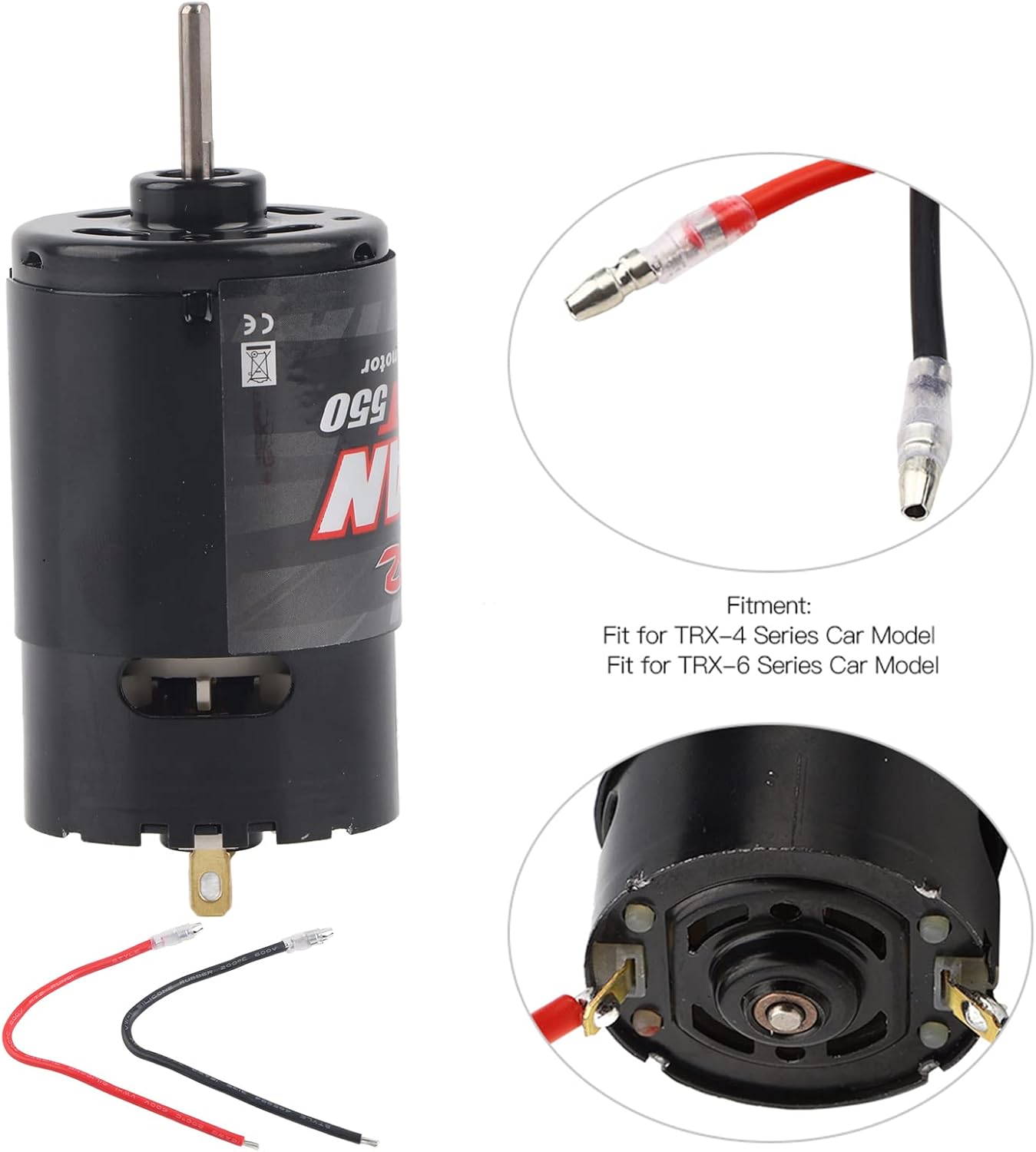

Carbon Brushed Motor 550 Strong Brushed Motor RC Brushed Motor 12T/21T/29T/35T High Precision Low Noise Motor Crawler Motor Fit for 4 RC Model Car Boat(12T)
₪182.99
- 550 Brushed Motor: Standard specification 550 high torque and low noise brushed motor for RC car and boat.
- High Precision Motor: The front part is ball bearing with high precision and long service life; Lengthened oil bearing shaft at tail, low noise and long service life.
- Low Noise: Extended oil‑bearing sleeve at the tail, low noise, built‑in cooling fan, with degaussing sleeve outside.
- Finer Linearity: Internal rotor adopts multi‑pole winding, with strong torque and low‑speed performance. Ordinary 3‑winding rotor motor has finer linearity.
- 4 Different Types Available: There are 4 different types available, you can choose by your needs.
In stock
Additional information
| Weight | 0.22 kg |
|---|---|
| brand | AYNEFY |
| dimensions | 12 x 10 x 6 cm; 226 Grams |
