30A 600V Power Connector Battery Plug+terminals Connectors kits For forklift electrocar Wire diameter:16-20 gauge wire Shell fire rating: UL 94 V0 Terminal: copper silver plated terminals The shell material: PC or unknown Products are widely used in: electric vehicles (electric buses. Forklift. Electric vehicles, tractors, golf cart, sightseeing car, battery), communication power supply (UPS). Dc regulated power supply, EPS, inverter power supply and the high frequency, high frequency module charger system), electric machinery, electric wheelchair. Electric washing machine. The lawn mower, vacuum cleaners, electric forklift), medical equipment (attract machine. Decompression machine. Electric bed), and other enterprises Package include: 10Pcs red housing 10Pcs black housing 20Pcs silver plated copper contacts 100% Satisfaction Guarantee: ● If the goods are defective or have other problems, please feel free to contact us by email. ● We will try our best to meet your needs. ● We will answer your questions as soon as possible. ● If you are not satisfied with our products, we can give you a 100% refund. ● We strive to provide you with the best quality products and the best products. service, your satisfaction is our highest priority!!!
CESFONJER Powerpole Quick Connect Battery Connectors – 10 Pair Quick Disconnect 30A 600V Power Connector Battery Plug+terminals Red Black
$29.99
- Make sure this fits by entering your model number.
- ★Package Includes: everything shown in the first photo. Contact Material: Silver-plated Copper. Rated Current (amps): 30 A. Rated Voltage (Volts): 600 V.

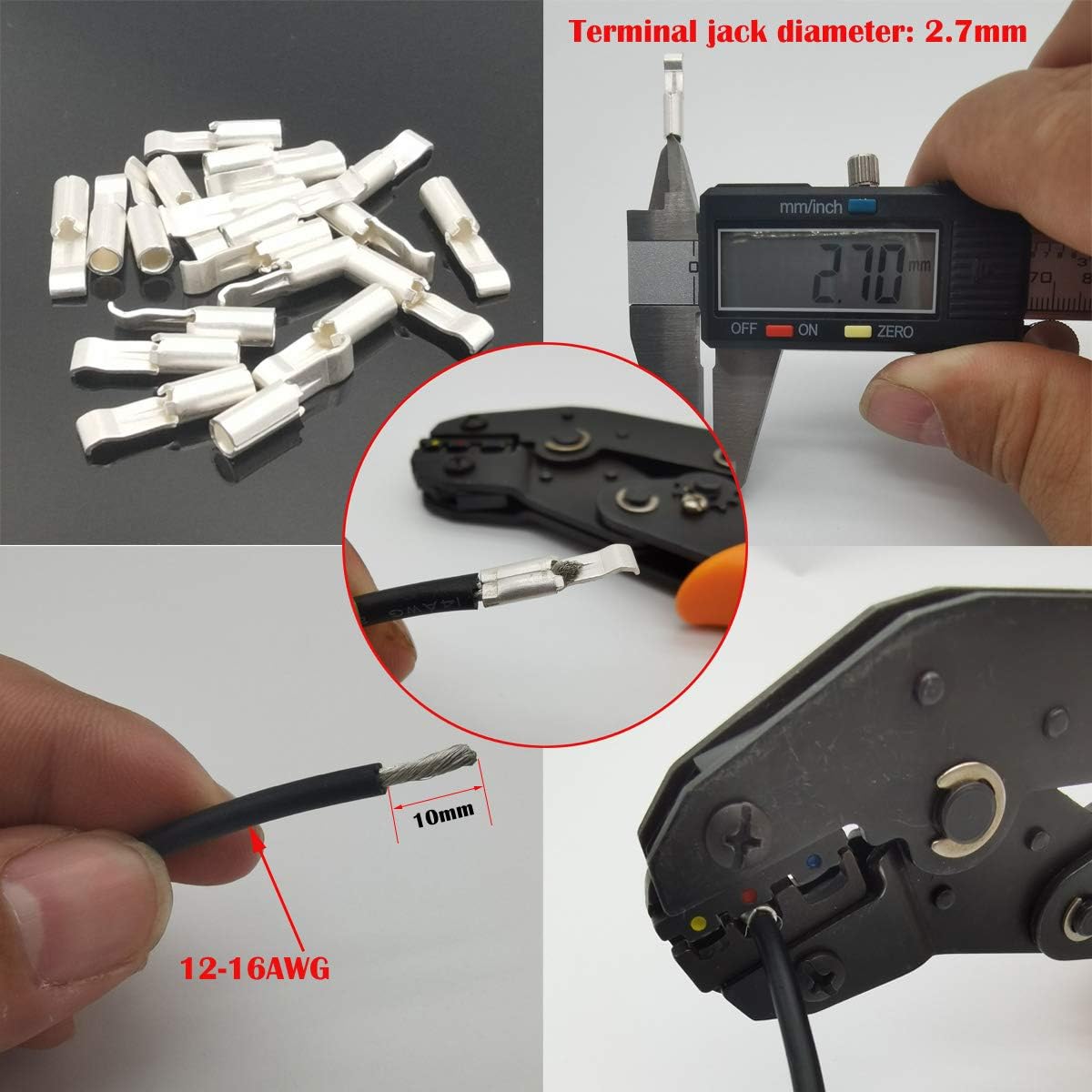

- ★30 Amps: Suitable for cables of 1.3 mm2 -3.3 mm2 (16-12 AWG). Medium contact resistance (micro ohm): <500. Resistant to test voltage insulation (Volts AC / DC): 2200 V. Contact retention force (lbf): 25 lbf.
- ★No charge (contact/disconnection cycles): 10,000. Under Load (Hot Plug 250 cycles @ 120 V). Average insertion force (lbs): 3-5lbf. Operating Temperature: -20 °C to 105 °C. Flammability Class of shell material: UL 94-V0.

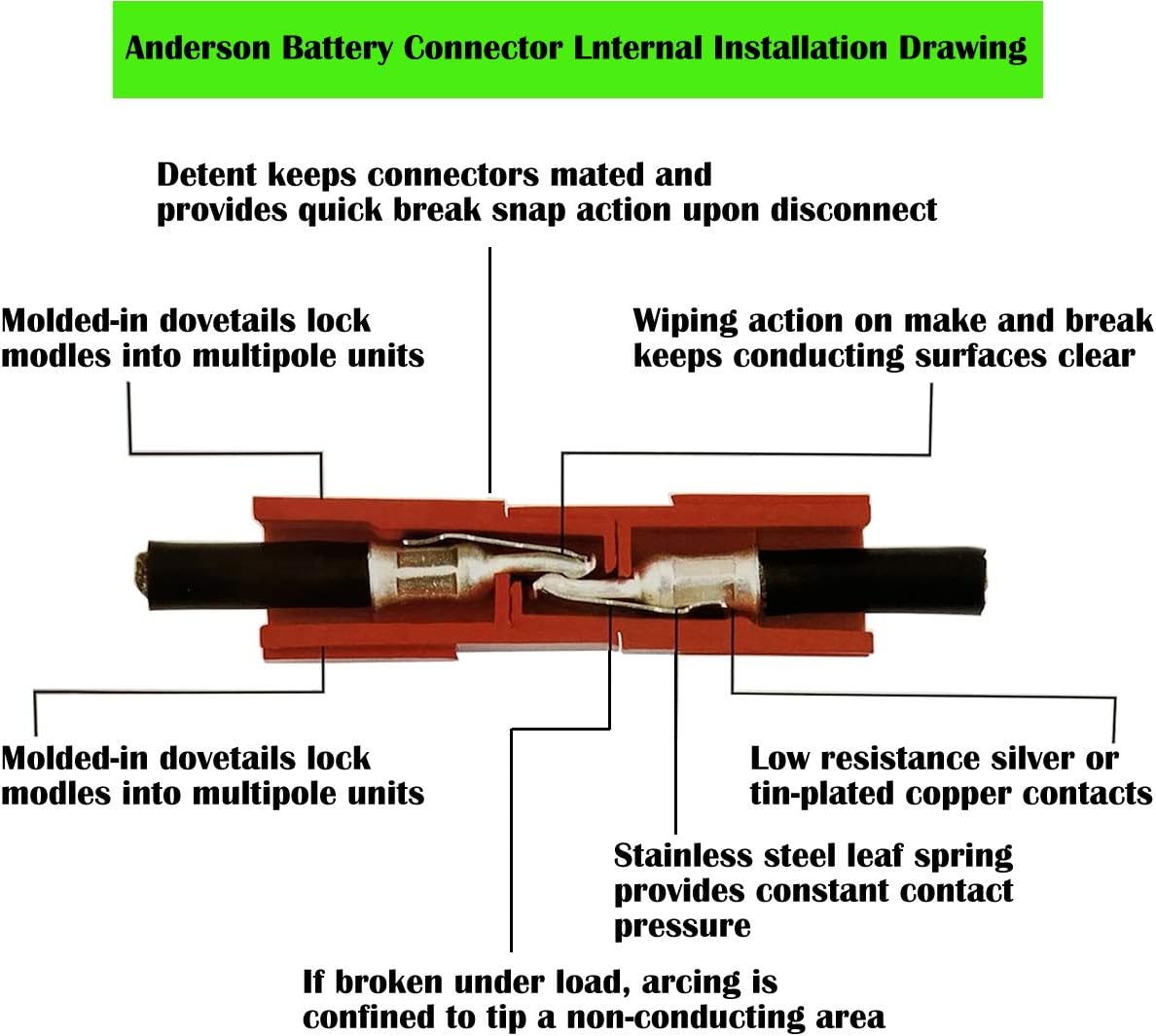

- ★flat wiping contact system. minimal contact resistance at high current. the wiping action cleans the contact surface during connection/disconnection. Coloured Modular enclosures, provides a visual identification of compatible connectors.
- ★Moulded dovetail tips. Keyed connectors. assembly to prevent connection errors. with similar configurations. Designed without gender, making for quick & easy assembly and reducing the number of pieces you have to store.
In stock
Additional information
| Weight | 0.09 kg |
|---|---|
| brand | CESFONJER |
| dimensions | 18.1 x 10.7 x 2 cm; 90 Grams |
