When you set the temperature, the thermostatic mixer into the outlet by adjusting the proportion of hot and cold water, the effluent temperature is always constant, in a very short period of time will automatically balance the cold and hot water pressure to maintain water temperature stable, eliminating the need for manual adjustment. Saving water, convenient and safe.
1/2 inch outlets
Anti-scalding device set at 38 degree C, can be overridden from temperature control
Inlet pipe centres: 150mm

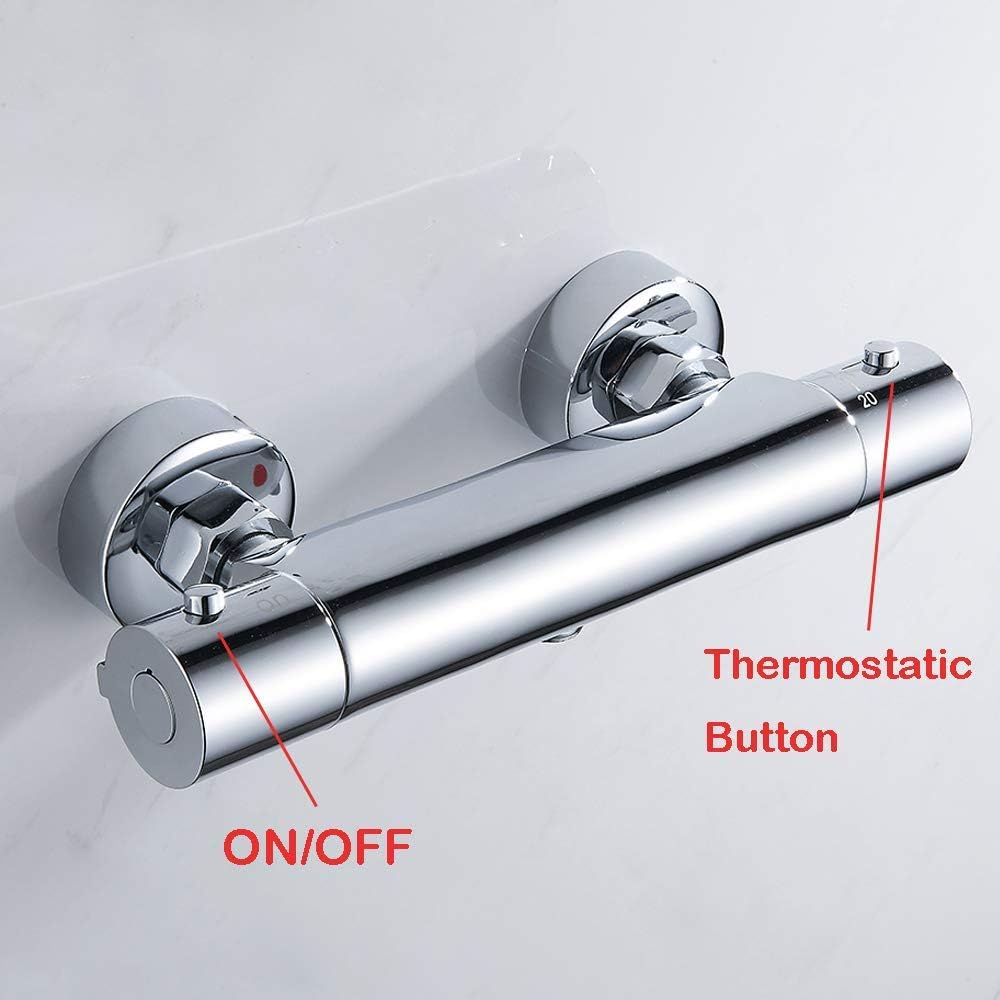

Separate controls for temperature and flow.
Durable chrome finish
Anti-scaled thermostatic control
Non-return valves
Specification:
Outlet water temperature range: 20-50°C
Safety button temperature: 38°C
Recommended pressure: 0.1MPa-0.5MPa
Cold water supply temperature: 5-29 °C
Hot water supply temperature: 55-85 °C
Size of inlet: G 1/2″”/Size of outlet: G 1/2″”
The distance between the hot water inlet and cold water inlet is: 150mm. Length: 257mm Inner bore: 25mm Seat diameter: 20mm
Material: Chrome-plated Brass
The basic attention point of thermostatic taps:
1. Install hot water pipe on the left and install cold water pipe on the right
2. Clean the wall and installation holes before installation
3. The main principle is that the built-in probe, you can control the temperature in the 38 safe temperature, if the temperature is too high, the probe will automatically detect the temperature, stop the water.
