Features:
100% new high quality, quality guaranteed. Using high-quality materials, fine workmanship, sturdiness and durability. With thermal shutdown, current limiting protection. Power is great, ensuring minimal transmission distortion. Easy to install.
Specifications:
Left and right channels: TDA2030Ax2
– Peak power: 18Wx2
– Horn: Recommended 2.5-4in 4-8 Euro 10-30W full-range speaker.
Bass output: TDA2030Ax1
– Peak power: 30W
– Horn: Recommended 5-8in, 4-8 Euro 30-50W woofers are recommended.
Power supply: AC dual AC9-15V transformer
Output power: DC 12V 1.5A
PCB material: FR-4 glass fiber board
Thickness: 1.6mm
PCB size:
– Motherboard: Approx. 80 x 65mm / 3.1 x 2.5in
– Tone board: Approx. 80 x 20mm / 3.1 x 0.7in
Potentiometer:
– Center distance between shafts: 28mm
– Shaft diameter: 6mm
Packing List:

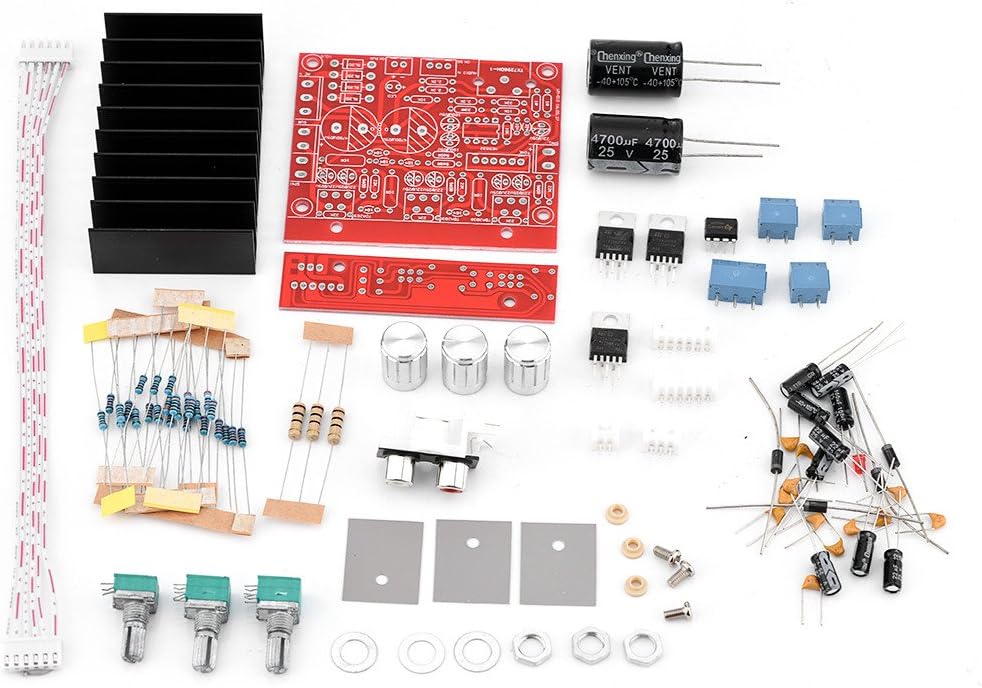

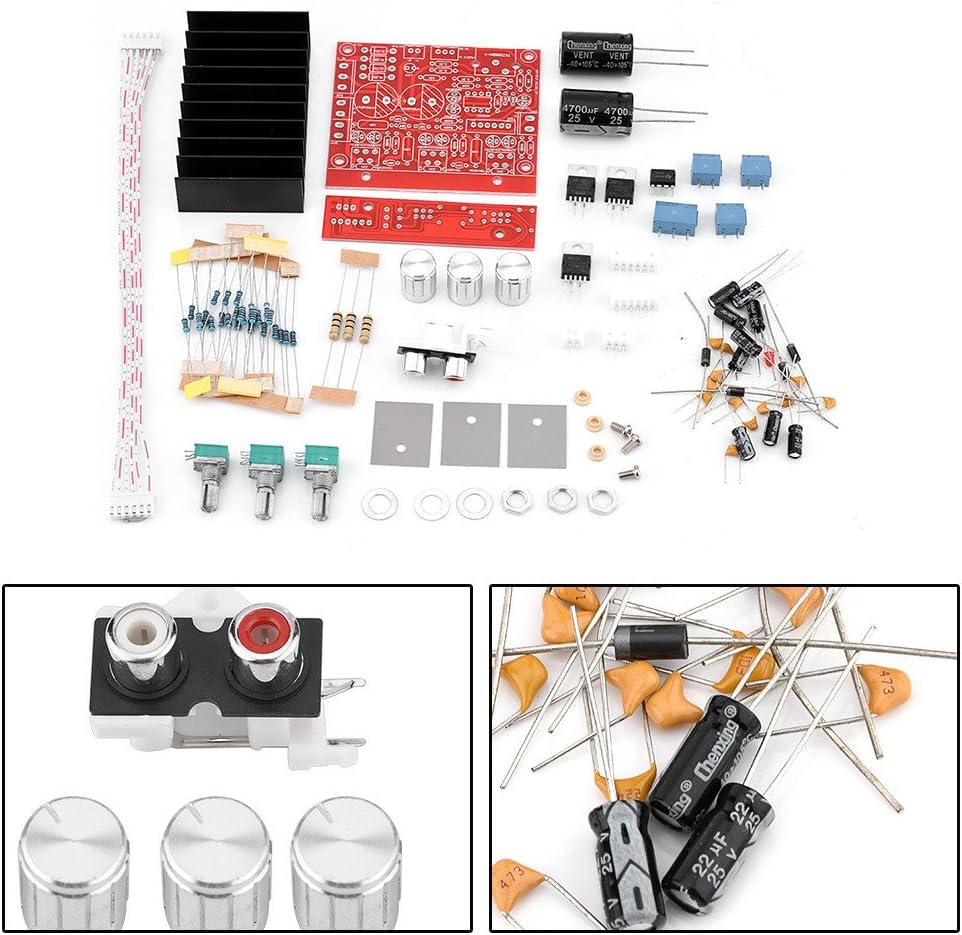

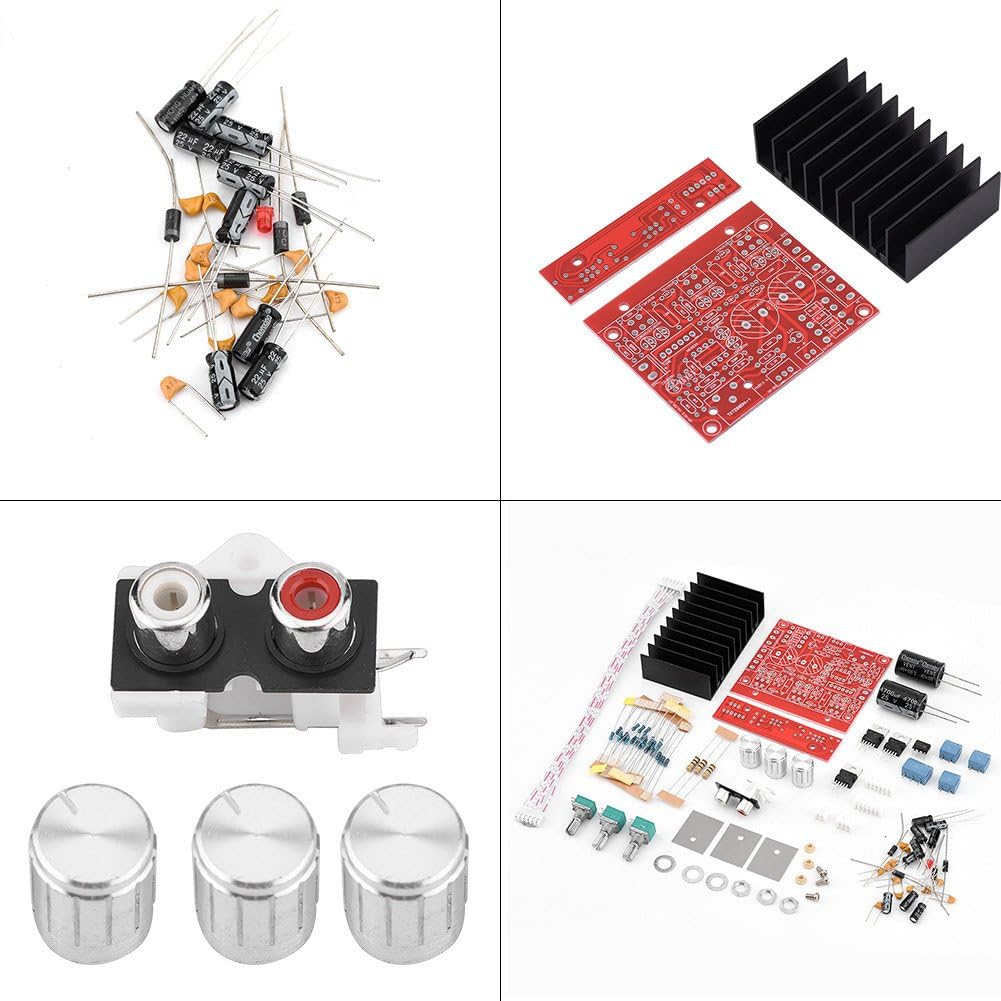

1 x DIY Parts Package
Circuit Board 2.1 Mini Digital Amplifier Board 3 Channel Speaker DIY Auto Audio Stereo Subwoofer Amplifier Module
$37.99
- Make sure this fits by entering your model number.
- –QUALITY MATERIAL: The board is using FR-4 glass fiber board, which is fine workmanship, sturdiness and durability.
- –CURRENT LIMITING PROTECTON: With thermal shutdown, the board has current limiting protection. The power is great, ensuring minimal transmission distortion.
- –DIMENTION: 80mm(Length)x 65mm(Width)x 1.6mm(Height); perfect size of the amplifier board which will not take you too much room and it is easy to install
- –OVER TEMPERATURE PROTECTTION: The board is provided with over temperature protection, besides, it has high efficiency which is up to 90%.
- –GUARANTEE: If you are not satisfied with our product you received, you can send emails to us at any time. We will reply you instantly and help you solve your problem.
In stock
Additional information
| Weight | 0.1 kg |
|---|---|
| brand | Zerone |
| dimensions |
