Features:
1. Parameter Setting: Various control parameters related to processing and operation can be set to achieve better processing effect.

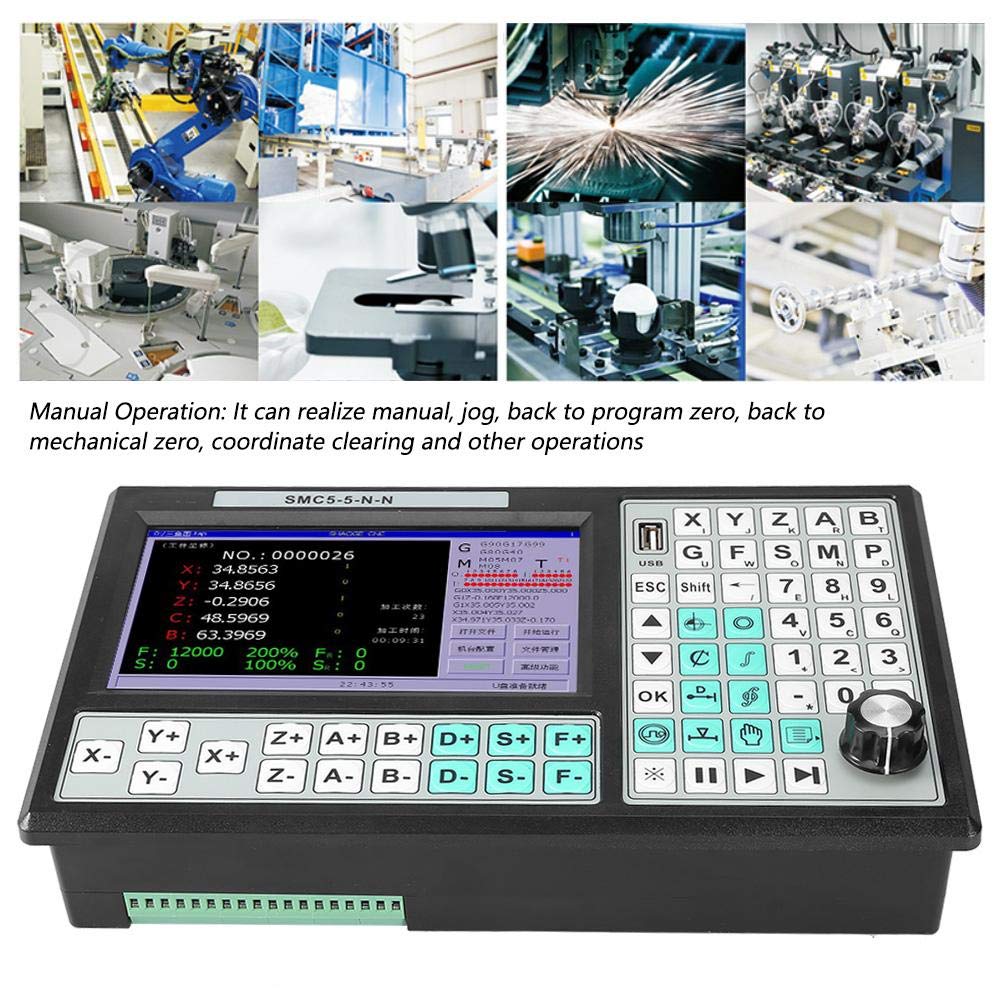

2. Manual Operation: It can realize manual, jog, back to program zero, back to mechanical zero, coordinate clearing and other operations.
3. Program Management: Program can create, delete, modify, read, save, copy and paste, automatic processing, continuous, pause. etc.
4. Externally Manual: A variety of externally manual functions can be defined for easy use.
5. External Handwheel Controller: You can set the step size of each step, supporting both position and speed modes.
6. Tutorial Function: Can define external input and panel control input.
7. Choose Input Function Freely: Enable the limited input ports to achieve various users’ needs
Specification:
Standard data unit 0.001mm General accuracy: ±2PP Continuous straight-line corner accuracy: 1/4 of the corner bow height under normal state
Max. data size: ±99999.999mm Max. pulse output frequency: 500KHz (all of five axis can be 500KHZ at the same time) Number of control axis: 5 axis (X, Y, Z, A, B) Number of linkage axis: 5-axis linkage and 5-axis multi-micro multi-line forward-looking interpolation control Support U disk, built-in memory, which can expand to 32G
Weight: Approx. 1174g/41.4oz
Package list:
1 * 5 Axis Offline Motion Controller
