Coaxial CCTV Tester IPC9310S CCTV tester monitor Coaxial CCTV Tester :The instrument adopts a smart operation system, mainly used for the installation and maintenance of network monitoring cameras, analog video monitor cameras and other security monitoring equipments, the instrument adopts a 4-inch HD IPS full view display screen, can clearly display the IP and analog camera video images. It is built in a variety of network tools including PING, IP address scan, and standard PoE power output, DC12V/3A power output, it is an essential tool for security monitoring projects and integrated wiring projectsing: 1* Tester monitor 1* Tool bag 1* Power plug 1* BNC cable 1* power cable Detail? Product Model :IPC9310 HD Video Monitor Tester . Touch Screen :4 inch capacitive touch screen . LCD Screen:4 inch resolution 800 × 480 IPS HD full view . Ethernet Port :10/100/1000M adaptive . WIFI :Built-in wireless WIFI, speed 150M . H.265 Mainstream test : Support H.265 mainstream display camera video, resolution up to 4 Battery: Built-in 7.4V polymer lithium battery, capacity 3200mAh, can work continually for 8-10 hours . Language : Chinese Simplified, Chinese Traditional, English, Russian, etc. more than 10 languages . Internal SD Storage : 8G . Working Temperature: -10?–+50? . Working Humidity : 30%–90% .
Coaxial CCTV Tester H.265 4K IP 5MP AHD 8MP CVI TVI CVBS Camera Testing Monitor ONVIF POE UTP/RJ45 TDR Test IPC9310SN (with Cable tracker)
$528.99

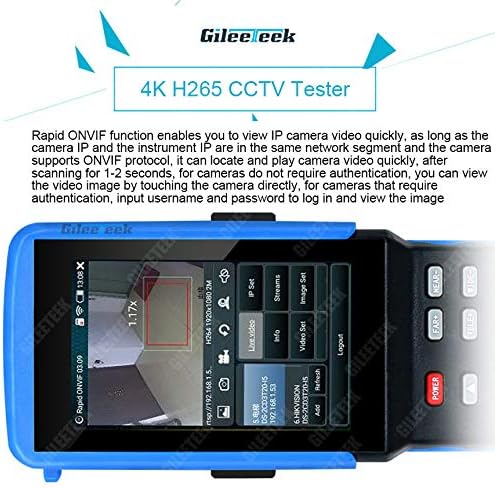

- ❤【 Coaxial CCTV Tester ,IP camera test and CVBS test】 IP Camera test :ONVIF (support PTZ operation), major camera brand IPC tool customization, display video by private protocols, almost support all brand cameras in the market Analog Camera test,Focus Information test . support IP Discovery , Full network segment IP scan to discover camera IP addresses .
- ❤【 Coaxial CCTV Tester use for HIK SADP tool and Dahua test tool 】use for HIK SADP tool: use for HIK camera batch activation, batch IP modification, be able to modify username and passworda camera batch activation, batch IP modification, cross network segment IP modification, modify username and password .
- ❤【 Coaxial CCTV Tester for 8MP TVI 8MP CVI 5MP AHD Coax HD Camera test: 】Support HD TVI 8MP resolution 3840 X 2156 15P ort HD CVI 8MP resolution 3840 X 2156 15P ort HD AHD 5MP resolution 2560 X 1920 15P .
- ❤【 Coaxial CCTV Tester for POE，DC12V Power Output，Photo, Video and Playback】PoE Power Output : 48V standard PoE output, max 25.5W o, support Video and Playback ，Support all camera videos photo taking, video recording and stored as H264 format ort PSE Voltage test:Display PoE power supply device voltage and circuit conditions 12V power output, max current 3A, provide temporary power for cameras .
- ❤【 Coaxial CCTV Tester for Cable TDR Quality test and UTP Cable test， PTZ Control ，RS485 Serial Port tool】 Test network cable pair connection status, length, attenuation, quality, impedance, delay deviation parameters, etc . Test any 2 cable core connection sequence and on-off status Control: Support Pelco-D/P, Samsung, Panasonic, etc. more than 30 protocols or receive any data and hex data .
In stock
Additional information
| Weight | 1.265 kg |
|---|---|
| brand | POMIACAM |
| dimensions | 23 x 9.2 x 4.1 cm; 506 Grams |
