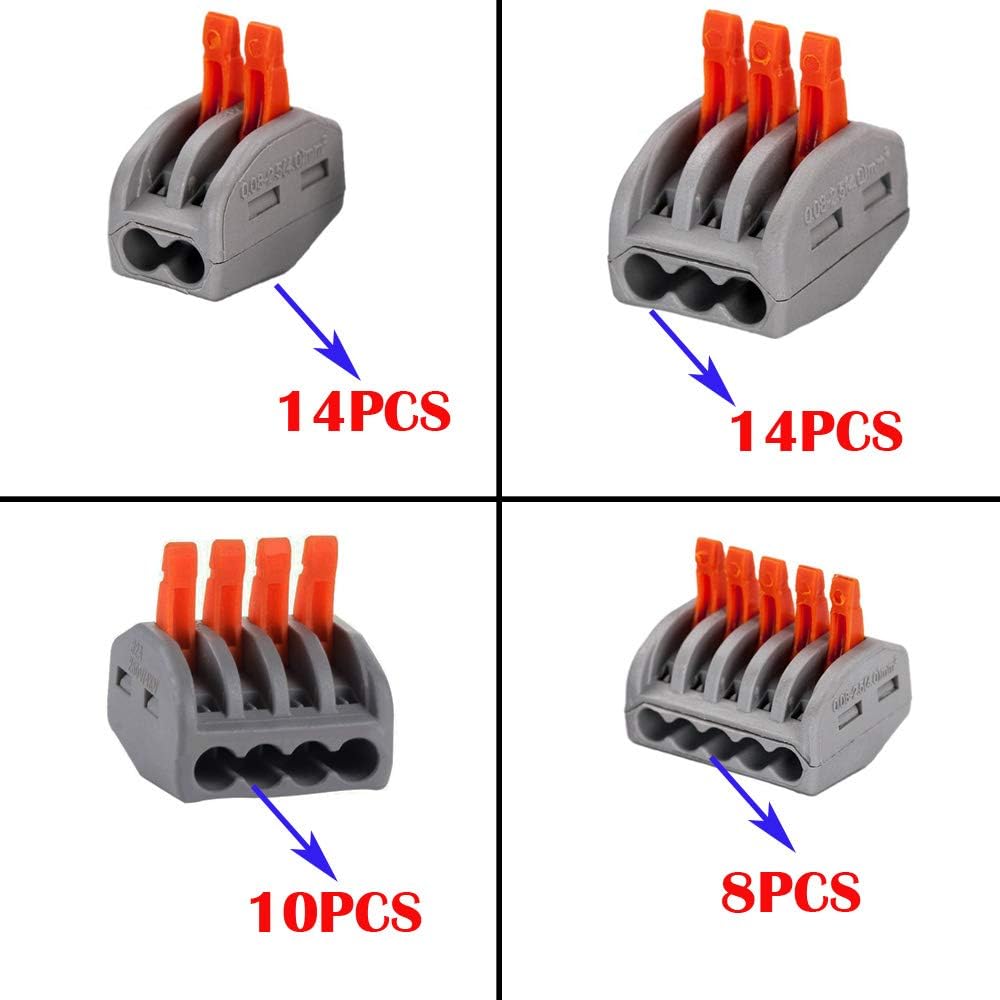

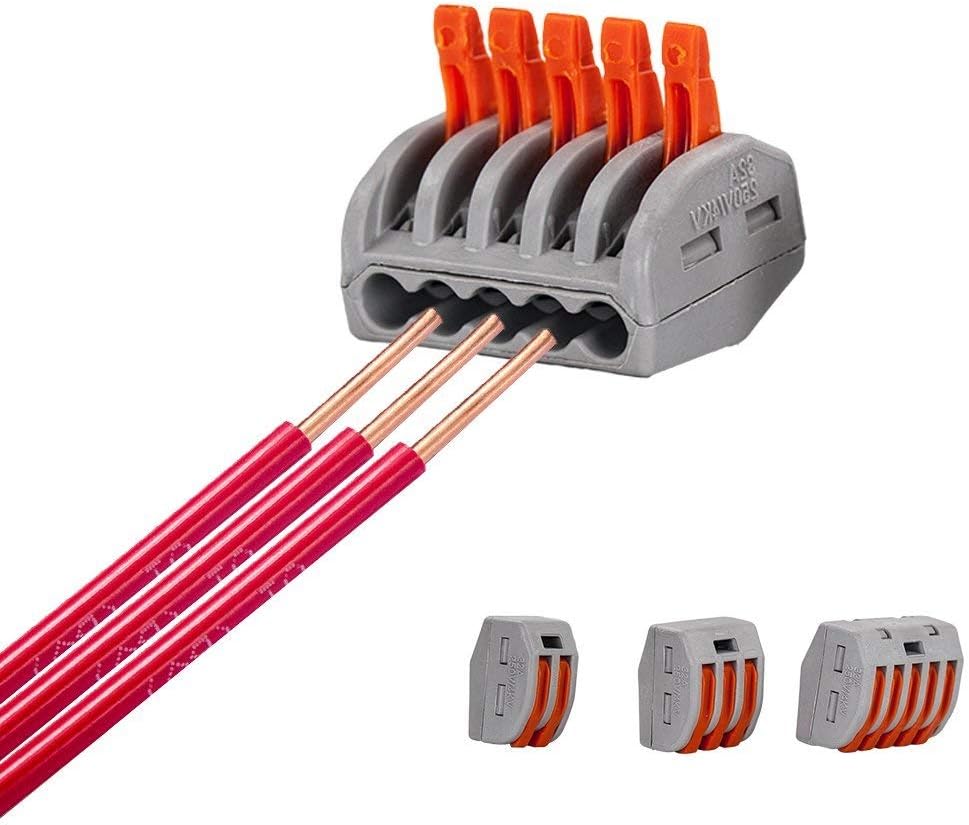

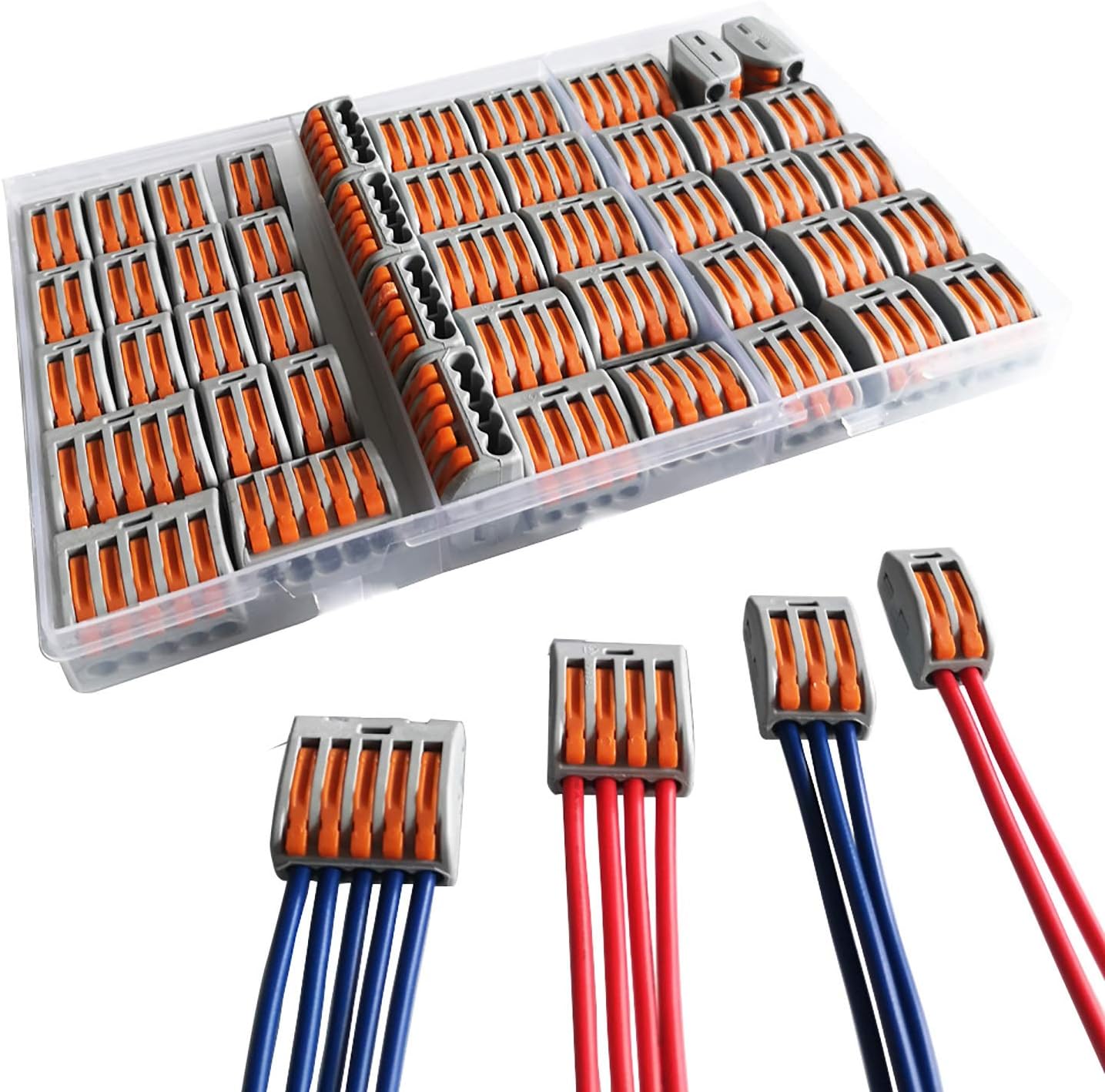

Product description This connector is suitable for lighting equipment and small electrical appliances, is the ideal connector between various types of wire, its clever dragon spring structure ensures the safety and reliability of the electrical connector. How to use 1. Strip wilre lead to 9-10mm 2. Open clamping unit and insert your wire lead 3. Lower lever to close the clampSpecifications Hard wire: 0.75-2.5mm² Soft wire: 0.75-4.0mm² Maximum voltage/current: 400V/4KV/2, 32A Wiring length: 9-10mm Dimensions : PCT-212 : 2.1 X 1.2 X 1.5cm PCT-213: 2.1 X 1.7 X 1.5cm PCT-214: 2.1 X 2.2 X 1.5cm PCT-215: 2.1 X 2.7 X 1.5cm Package include 2 Port Wire Connector X 14Pcs 3 Port Wire Connector X 14Pcs 4 port wire connector X 10pcs 5 Port Wire Connector X 8Pcs Total is 46pcs 1*（transparent plastic storage box）Warranty Our professional customer service team is ready to solve the after-sales problem for you. Please feel free to purchase it. For any possible defective products, please contact us first. We will do our best to make it right with either a replacement or refund.
Conductor Compact Connectors, Premium PCT-212/213/214/215 Lever-Nut Assortment Pack, Terminal Block Wire Push Cable Connector (2 Port 14Pcs 3 Port 14Pcs 4 Port 10pcs 5 Port 8Pcs)
$41.99

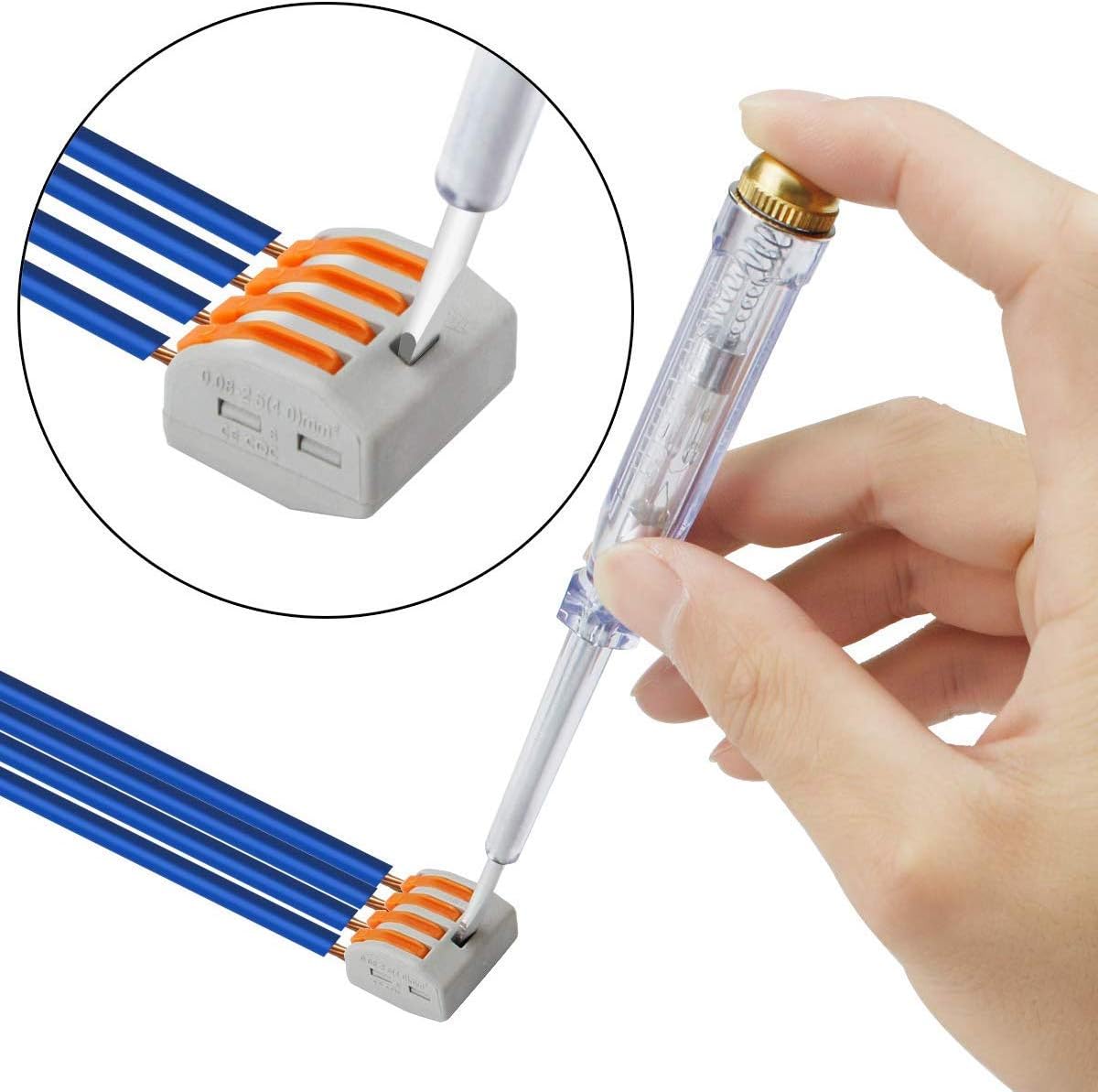

- ★REUSABLE: This Compact Wire Connectors is suitable for Soft and Hard wire. Every junction independent shrapnel, different wire managed separately, different diameter can be connected safely. There are test hole in every cage surface, electric test no need to remove tape, which is intuitive and easier. More importantly, it is a reusable connector.
- ★WIDELY APPLICATION: Compact Wire Connectors is widely applied to building wiring, such as used for controlling multiple lights by one switch. It is ideal for compact and complex applications.
- ★SAFETY: The Compact Wire Connectors selects the best flame-retardant insulating material modified nylon PA66, which is long service life, anti-corrosion and anti-aging. Internal shrapnel copper material, better conductive properties. Rate Voltage 400V, Rate Surge Voltage 4KV, Rated Current 32A. Can work in 105°C stable and continuous.
- ★PRACTICAL: Compact Wire Connectors are great for removable connections as soldering does not need to occur. Connect any combination of solid, stranded, and flexible copper wires faster and more reliably. Suitable for Solid copper wires size 0.08-2.5mm2 / 28-14 AWG; Suitable for stranded Hard copper wires size 1.5-2.5mm2 / 16-14 AWG; Suitable for stranded Soft copper wires size 0.08-4 mm2 / 28-12 AWG.
- ★EASY TO USE: Easy to install, Compact Wire Connectors is no need operated by tools. Just plug and play, and then finished. Instead of traditional electrical tape and electrical butt connectors twist-type, technological innovations reduce wiring time by more than 50%, and they seem to hold on quite well. They make the work much easier and neater.
In stock
Additional information
| Weight | 0.25 kg |
|---|---|
| brand | CESFONJER |
| dimensions | 23.9 x 14.7 x 2.7 cm; 250 Grams |
