CQRobot Ocean: TCS34725FN RGB Color Sensor Compatible with Raspberry Pi/Arduino/STM32. I2C Interface, Output RGB Data/Light Intensity Table. for Light Test, Phones, Computers, Industries, Lighting.
$32.99
- Wiki: http://wwwbot/index/TCS34725_Color_Sensor
- Onboard TCS34725FN, embedded ADC, high sensitivity, wide dynamic range. I2C communication, uses a few pins. Integrates IR blocking filter, minimizes the IR spectral component of the incoming light.
- Outputs RGB data without white balance. Outputs light intensity, feels the light like human eyes. Supports light intensity interrupt output, programmable upper and lower thresholds. Supports fill-light by onboard LED, adjustable brightness by PWM.

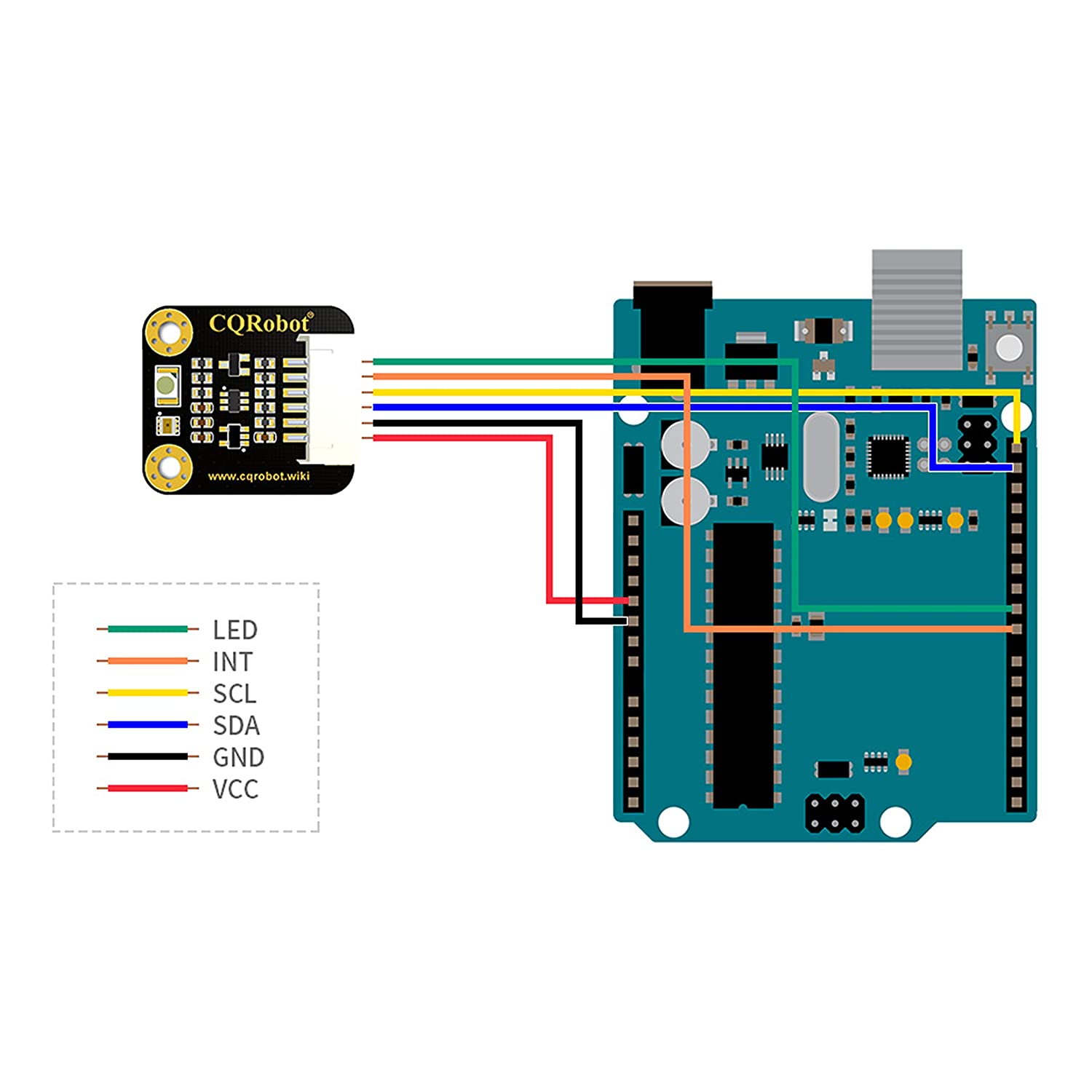

- Onboard voltage level translator, compatible with 3.3V/5V operating voltage. Compatible with motherboards such as Raspberry Pi/Arduino/STM32.
- for Medical Health, Fluid and Gas Analysis, Color Temperature Measurement, Backlight Control for RGB LED, Product Color Verification and Classification, Ambient Light Sensing for TVS, Cell Phones, Tablets, Printer, Computers and Monitors, etc.
In stock
This is a color sensor that supports RGB color data and light intensity output via the I2C interface. The color sensor is based on TCS34725FN color optical digital converter, it output red, green, blue (RGB) clear optical sensor value of digital. The integrated infrared blocking filter minimizes the infrared spectral of incident light , the sensor can accurately measures color. it has high sensitivity, wide dynamic range. Minimize IR and UV spectral component for accurate color measurements. It also has ambient light intensity detection and can be shielded interrupt.
APPLICATION
– Medical Health – Automated Industry – Fluid and Gas Analysis – Color Temperature Measurement – Backlight Control for RGB LED, etc. – Product Color Verification and Classification – Solid State Lighting (SSL) and Digital Signage – Ambient Light Sensing for TVS, Cell Phones, Tablets, Printer, Computers and Monitors, etc.
SPECIFICATIONS
– Product Category: Light to Digital Converters/TCS34725FN – Peak Wavelength: 525 nm – Maximum Operating Frequency: 400 kHz – Operating Supply Voltage: 3.3V to 5V – Operating Current: 235 uA – Maximum Operating Temperature: +70 Degree Celsius – Minimum Operating Temperature: -30 Degree Celsius – Interface Type: I2C – Maximum Fall Time: 300 ns – Maximum Rise Time: 300 ns – Resolution: 4-ch RGBC, 16-bit per ch – Recommended Measuring Distance: 2mm – Dimension: 28mm * 25mm – Mounting hole size: 3.0mm
DISTRIBUTION LIST
1 * Color Sensor (TCS34725FN) 1 * PH2.0 6-Pin Cable (20cm)
