CSL – Full HD mini HDMI to VGA adapter including audio transmission line-out – Converter – Up to 1080p HDTV support – Digital to analogue – black

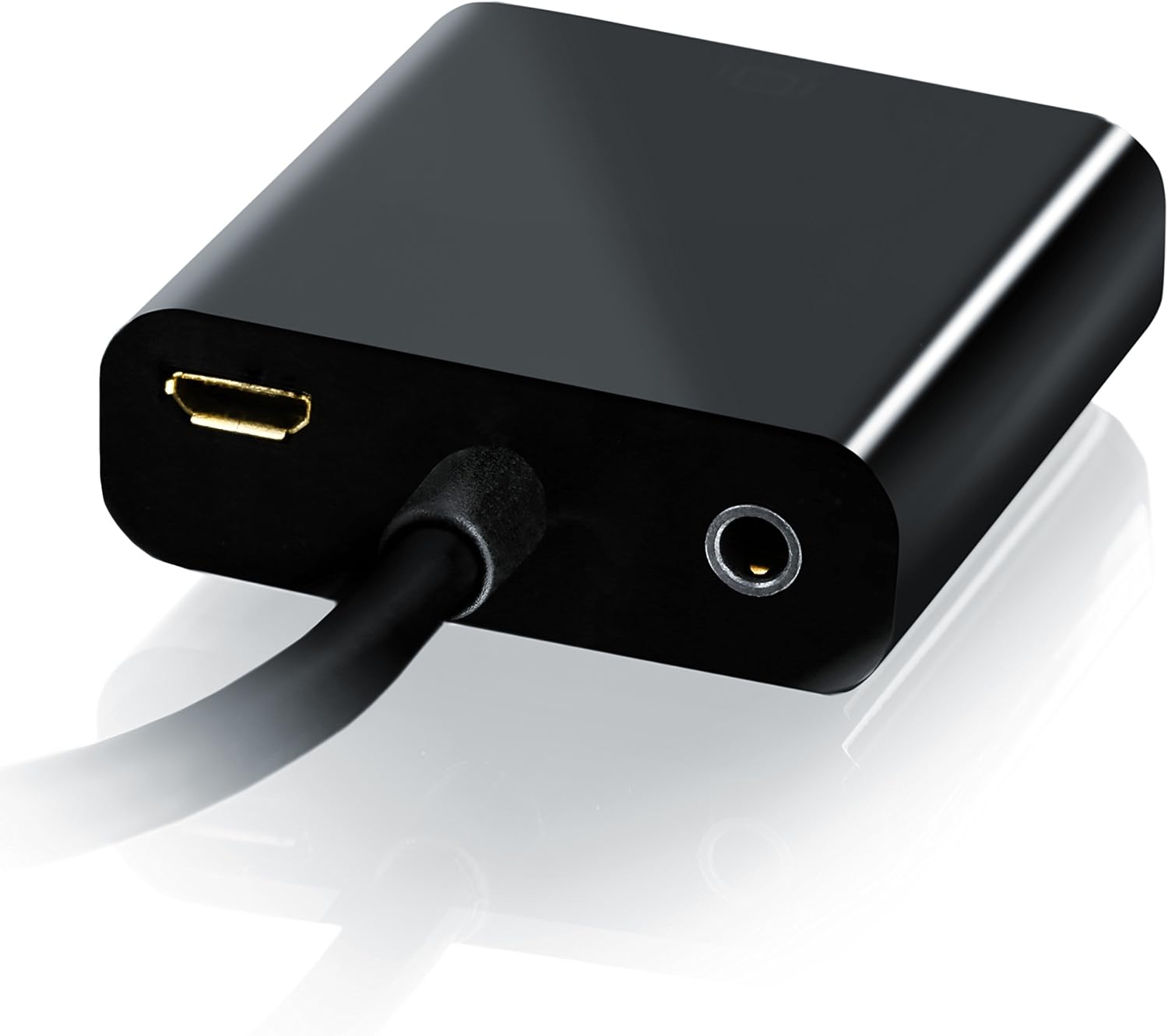

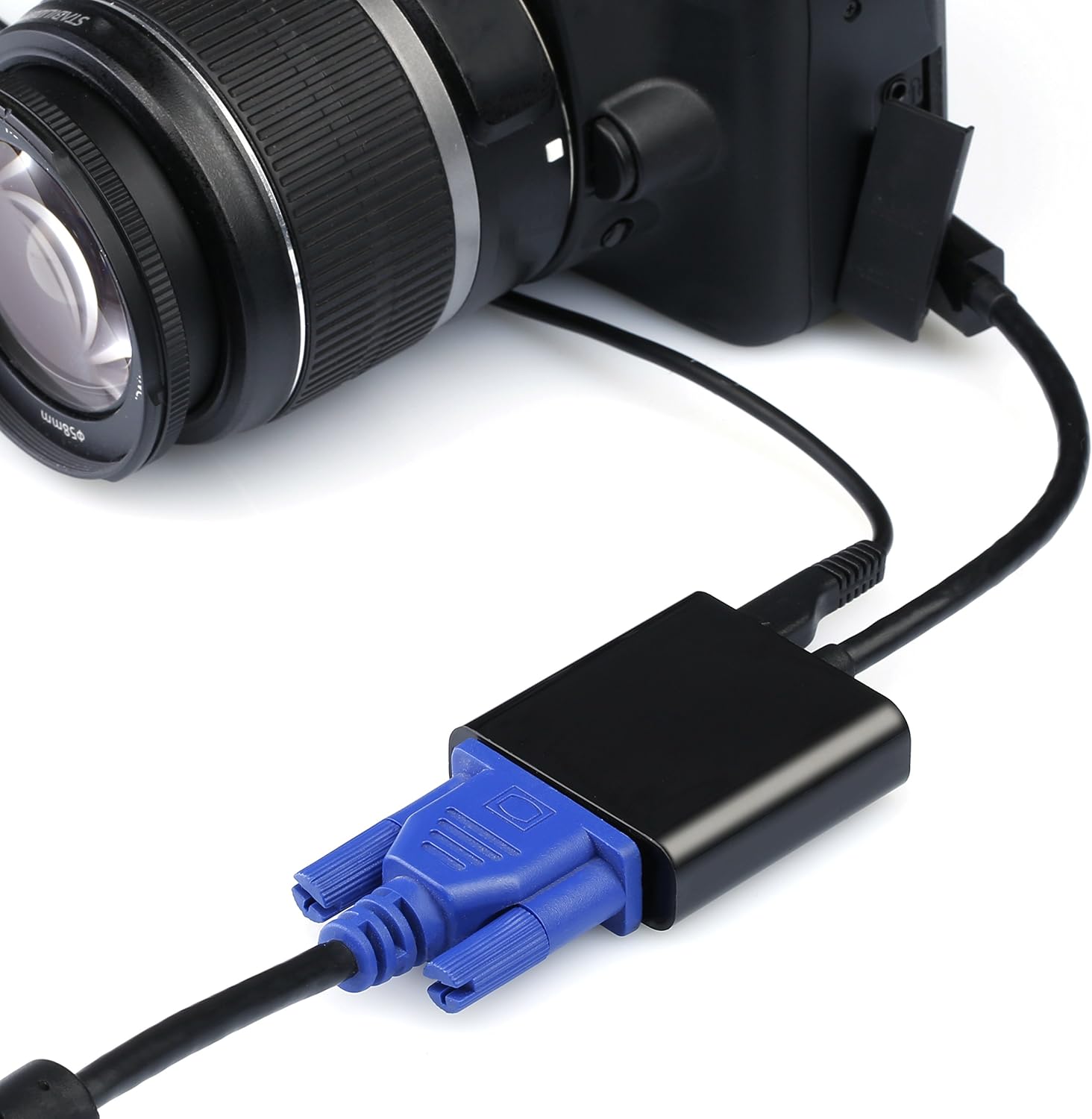

The high-quality mini HDMI – VGA adapter cable from CSL makes it possible to convert the digital output signal of an mini HDMI connection into an analogue signal for a VGA monitor input. The input signal is converted into the output signal 1:1 and in high quality. The practical adapter is compatible supports full high-definition resolution of 720p or 1080 p (Full HD). The mini HDMI output reproduces both a video and an audio signal. As the VGA input can only process a video signal, however, the adapter is also supplied with a 3.5 mm line-out socket. You can tap into the audio signal separately by means of a jack cable and send it to an audio repr- oduction device of your choice (surround-sound system, stereo system, line-in on PC or notebook,active loudspeakers). Moreover, your video data is transmitted with copy protection via the HDCP encryption system. The power supply is provided via the mini HDMI output for most devices. With the help of the Plug & Play principle, separate installation of software drivers is not necessary. Product summary: mini HDMI VGA adapter cable mini HDMI type C plug / VGA (D-Sub) socket 3.5 mm audio line-out Input: 1× mini HDMI Type C (male) Output: 1× VGA 15-pin (female), 1× 3.5mm audio jack (female) Resolution HDMI 480p to 1080p (Full HD) Output signal 1:1 to input signal No software or driver installation necessary, Plug & Play HDCP-enabled Improved compatibility High-quality finish Integrated signal amplification Note: This adapter/converter functions in one direction only – HDMI to VGA – and not vice versa.
