【Description】:
–This type is miniature DC Worm Gear Motor, which can change shaft rotation direction while the positive and negative wiring changes. It is also have additional two characteristics:
1. With self-locking design, the output shaft can not rotate when switch off, that is self-locking.
2. Gearbox output shaft and motor shaft are come to be a rectangle, it is widely used in various of occasions that require special installation size.
【Specification】:
★Rated Voltage: 12V DC;
★Output Shaft Diameter: 8mm;

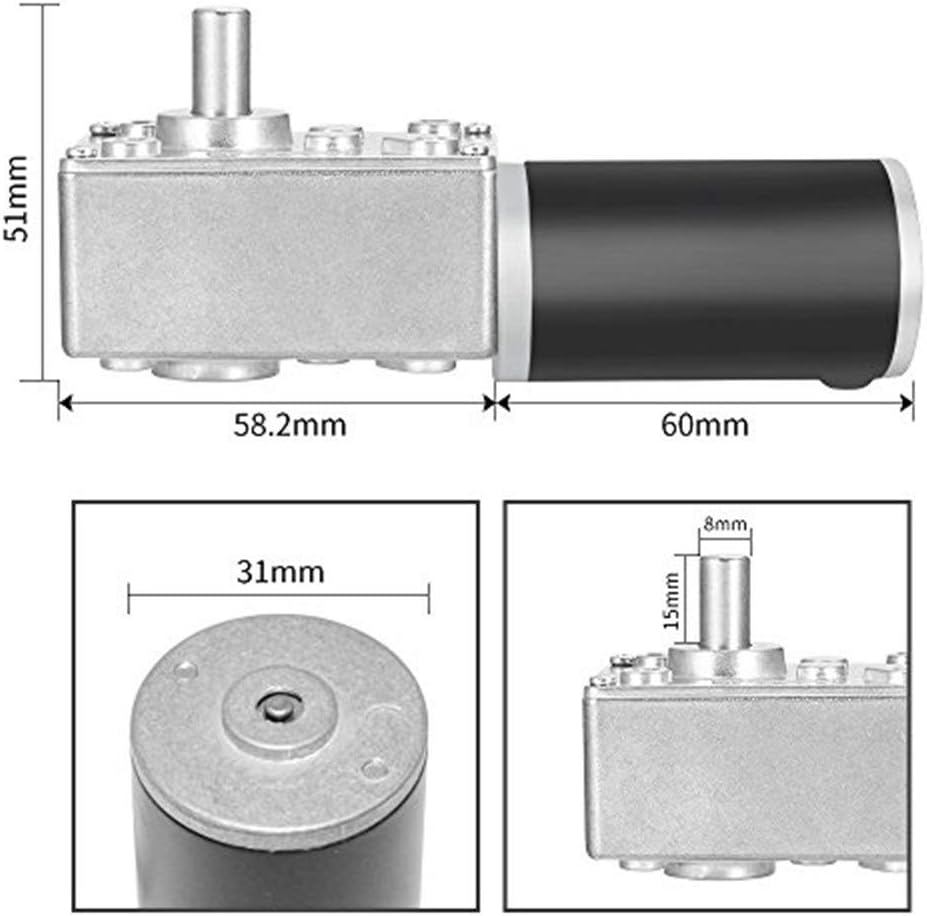

★DC Motor Body Dimensions: 31 x 57mm / 1.22inch x 2.24inch(D*L);
★Gear Box Dimensions: 58 x 40 x 35mm / 2.28inch x 1.57inch x 1.37inch(L*W*H);
★Wire Length: 20cm;
【Applications】:
Bank Equipment, Safe Box, Paper Feeder, Intelligent Gas Meter, Tissue Machine, Accessory of Automobile, Ad Equipment, Analysis Instrument, Electronic Game Machine, Remote Control Curtains, Locks, Paper Shredders, Copying Machines, and Safes Inner.
【Package Contents】:
–1 x Gear Box Motor
