Please note: The high voltage module should avoid the use of high voltage electricity when empty. (The power needs to be adjusted to an appropriate distance from the high voltage output cable, the battery capacity is proportional to the distance and use of the high pressure arc (not as high as possible voltage, enough current). Experimental test from short to long arc, do not exceed the maximum distance of the electric arc, energy cannot be released due to high pressure, can easily damage the module.) Work: intermittent work, continuous work can not be more than 1 minute and the output side does not allow short circuit. Incorrect voltage and long working time, the module will be easily damaged.
Specifications: – Condition: 100% brand new. – Input voltage: DC 3V to 6V. – Input current: 2A ~ 5A. – High pressure type: pulse current. – Output voltage: 400000V (please pay attention to safety). – High pressure discharge distance: between 10 mm to 20 mm. – High voltage output cable length: 100 mm. – Power cable length: 100 mm (the red line is positive). – Wiring: power cable: red: “+”, green: “-” – Output: on the other side, same colour cable. – Dimensions: approx. 24 x 22 x 63 mm.
Package contents: 1 x high voltage transformer.

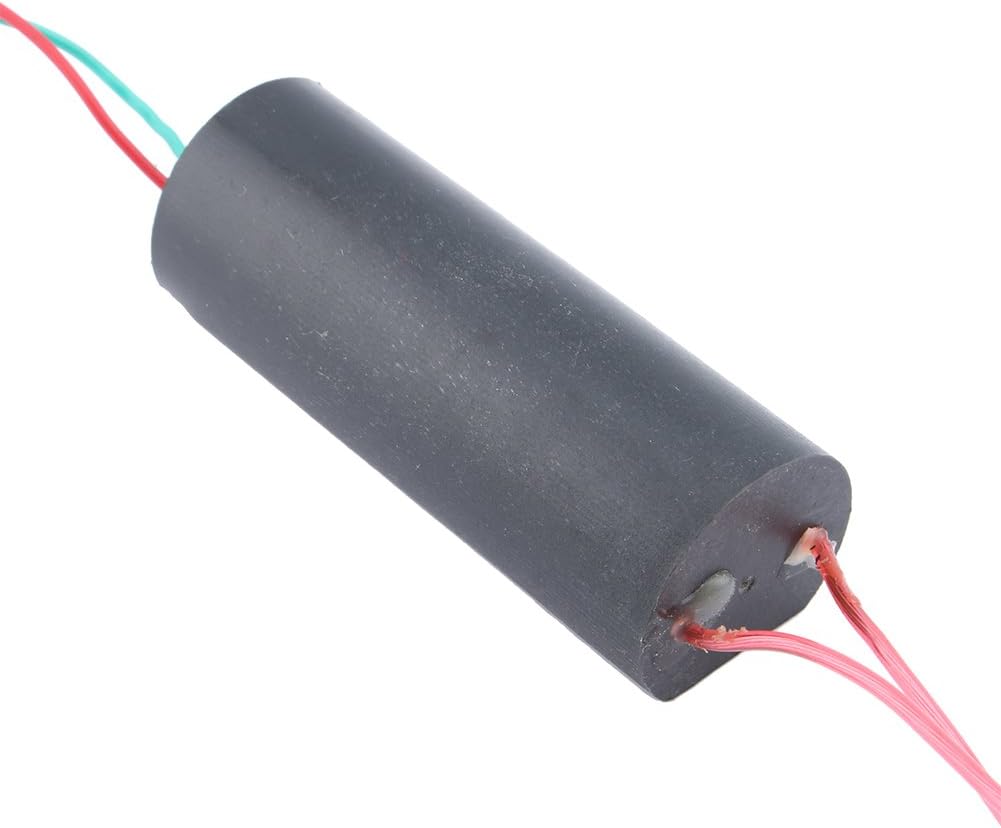

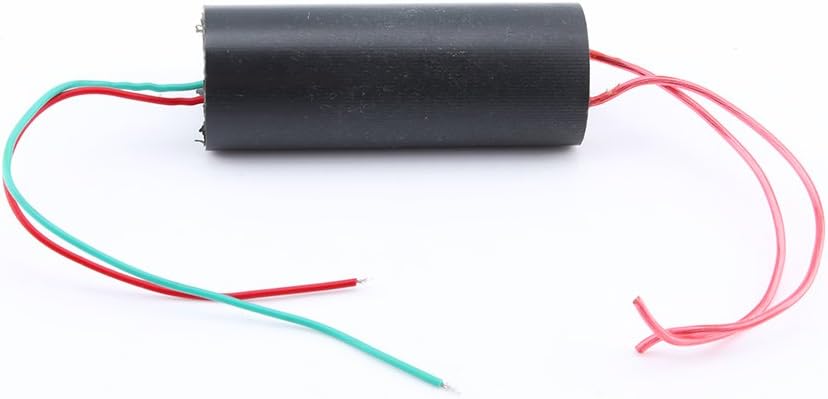

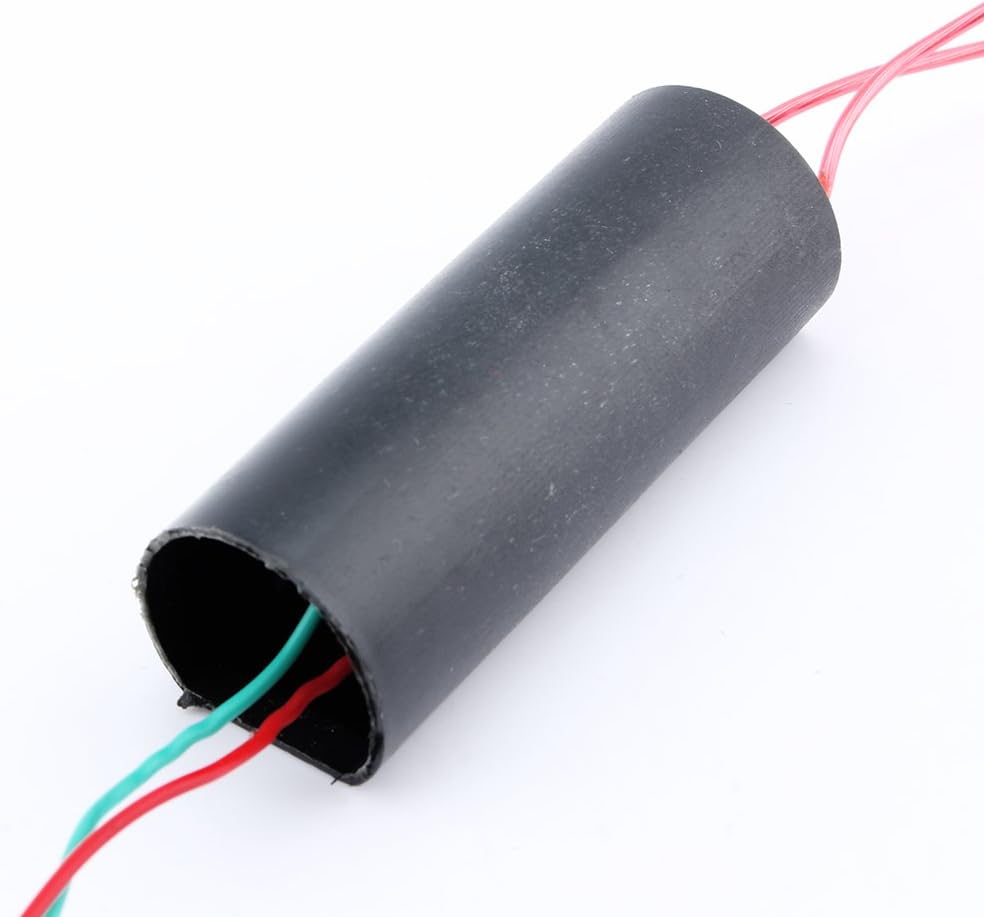

DC 3V-6V to 400KV Module Converter High Voltage Inverter Booster Voltage
HKD229.43
- Make sure this fits by entering your model number.
- Input voltage: DC 3V to 6V; Input current: 2A ~ 5A; Dimensions: approx. 24 x 22 x 63 mm
- Output voltage: 400000V; High pressure type: pulse current
- High pressure discharge distance: 10 mm to 20 mm
- High voltage output cable length: 100 mm
- Wiring: Power cable: Red: “+”, Green: “-“
In stock
Additional information
| Weight | 0.03 kg |
|---|---|
| brand | GOTOTOP |
| dimensions | 7.8 x 4.6 x 2 cm; 20 Grams |
