Specifications:
Input Voltage: 8-60V
Output Voltage: 10V-120V
Output Power: 900W
Output Current: 0-15A
Operating Temperature: -40℃-+85℃
Frequency: 150KHz
Size: 110 x 96mm / 4.33 x 3.78″
Display
Meaning
00.00
Voltage,00.00~38.00V
0.000
Current,0.000~6.000A
C.000,C0.00,C00.0,C000.
Capacity,(AH), e.g.:C.123=0.123AH,C1.23 = 1.23AH,C12.3 = 12.3AH,C123.= 123AH
–0-
Function0
–1-
Function1
–2-
Function2
–y-
Function On
–n-
Function Off
SA.-* (*=0~9)
Save parameter to a position(0~9)
Lo.-* (*=0~9)
Recall parameter from a position(0~9)
—-
Save Parameter
Function 0: Automatically output after power on.
Function 1: Save and recall parameters; display power and capacity, set input voltage stabilization threshold.
Function 2: Automatically display parameters in turn after output.
On/Off(default off):
Long press “OK” button, then power on the module. It will display “–0-“,”–1-“,”–2-” in turn. Release “OK” button when it displays “–0-” to turn on/off function 0; release “OK” button when it displays “–1-” to turn on/off function 1; release “OK” button when it displays “–2-” to turn on/off function 2. (“–y-“=on, “–n-“=off)
Package Includes:
1 x Boost Converter

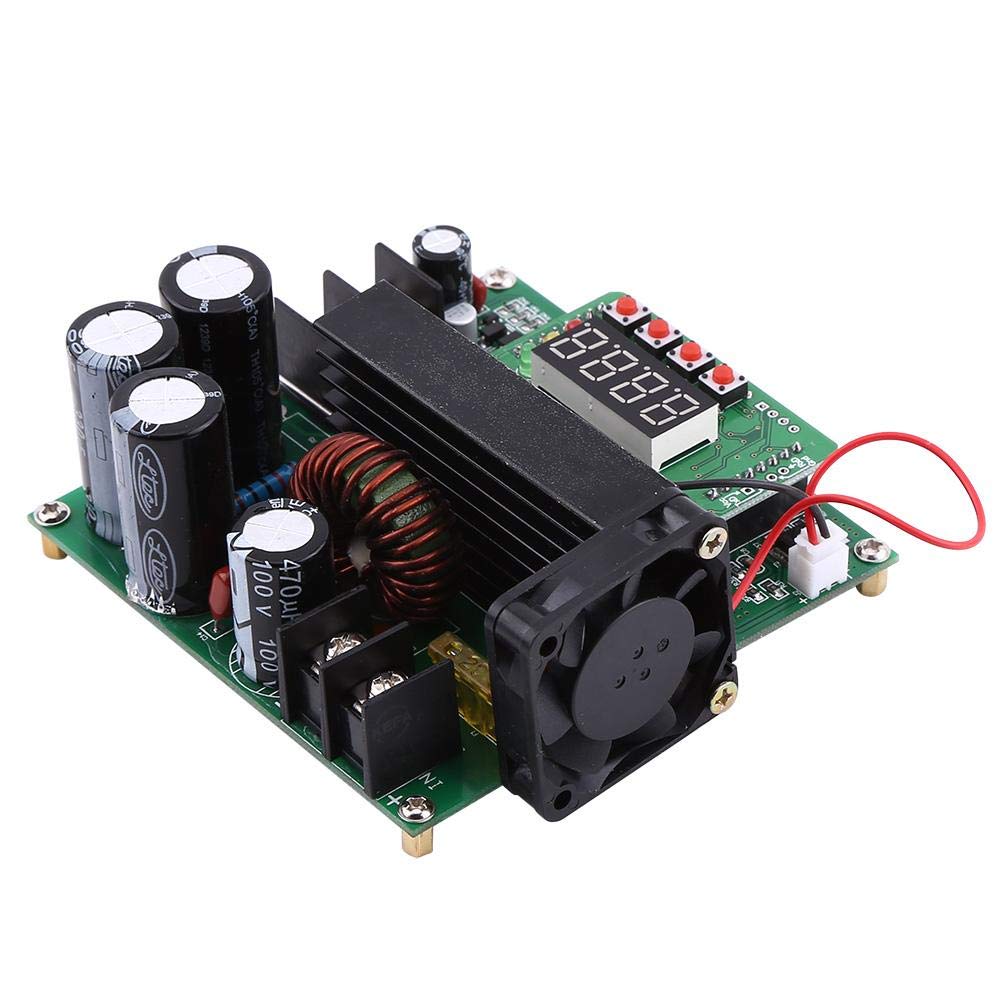

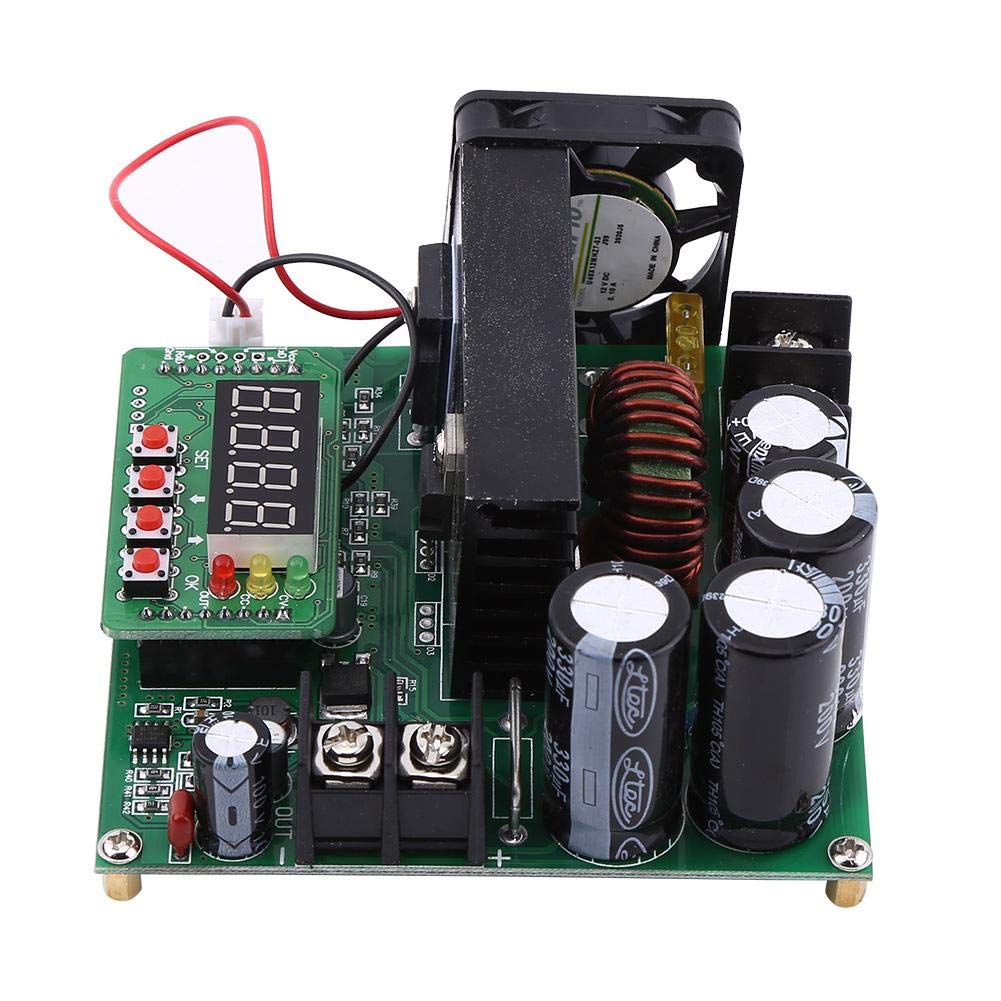

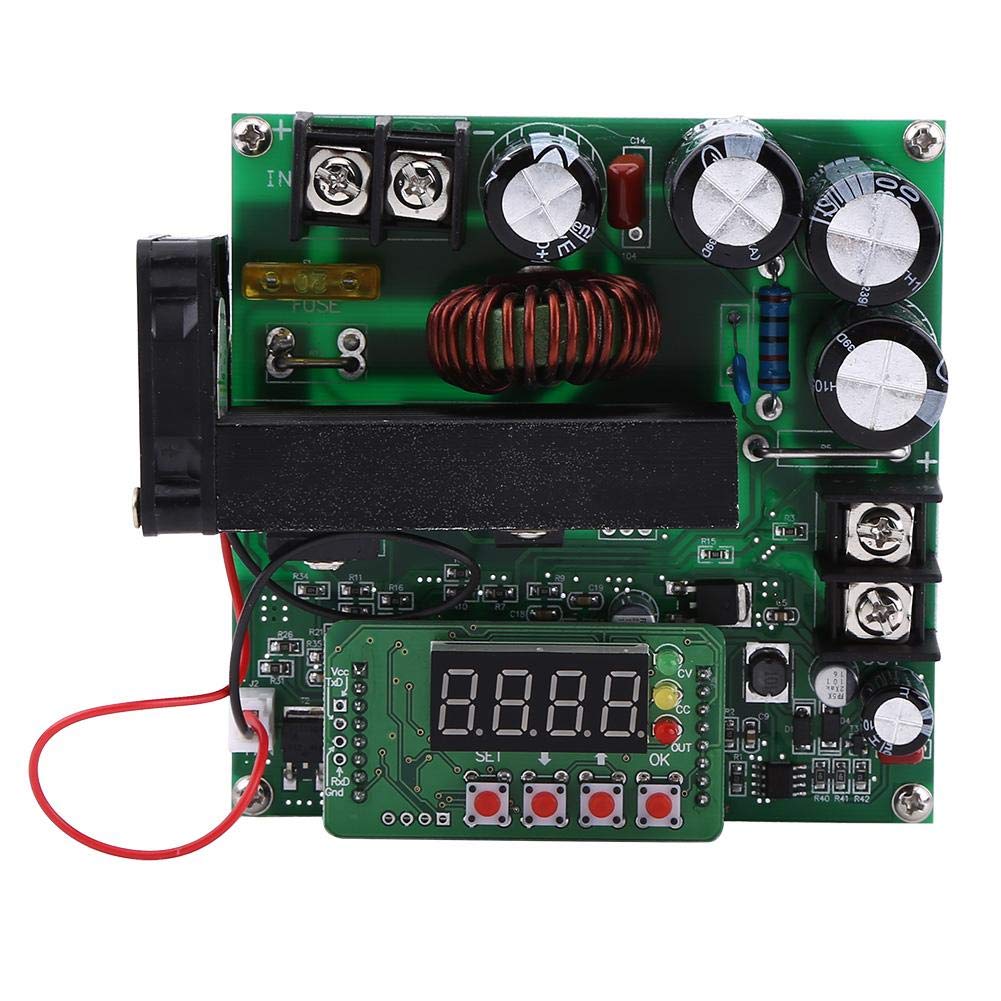

DC-DC 8-60V to 10V-120V Adjustable Step Up Converter 900W High Precise Control Voltage Boost Module Regulator for Voltage Conversion
$103.99
- 【High Quality Components】: High quality power component combined with peripheral precision op-amp CV and CC loop would highly improve the overall performance of module
- 【Multiple Functions】: The 900W high precise control voltage boost converter supports input voltage stability and protection function and constant voltage and constant current regulation function
- 【Great Memory Function】: The memory function supports storing 10 groups of parameters and can be freely stored or recalled
- 【Digital Display】: 4 Digit display could show real-time voltage, current, power and capacity, and you can select automatic or manual display in turn. There are output(OUT), constant voltage(CV), constant current(CC) indicator lights that shows real-time state
- 【Easy Operation】: You can select whether to output automatically or not after power on. The voltage and current value can be saved by simply pressing one key
In stock
Additional information
| Weight | 0.28 kg |
|---|---|
| brand | Oumefar |
| dimensions | 16 x 14 x 5 cm; 280 Grams |
