Description:

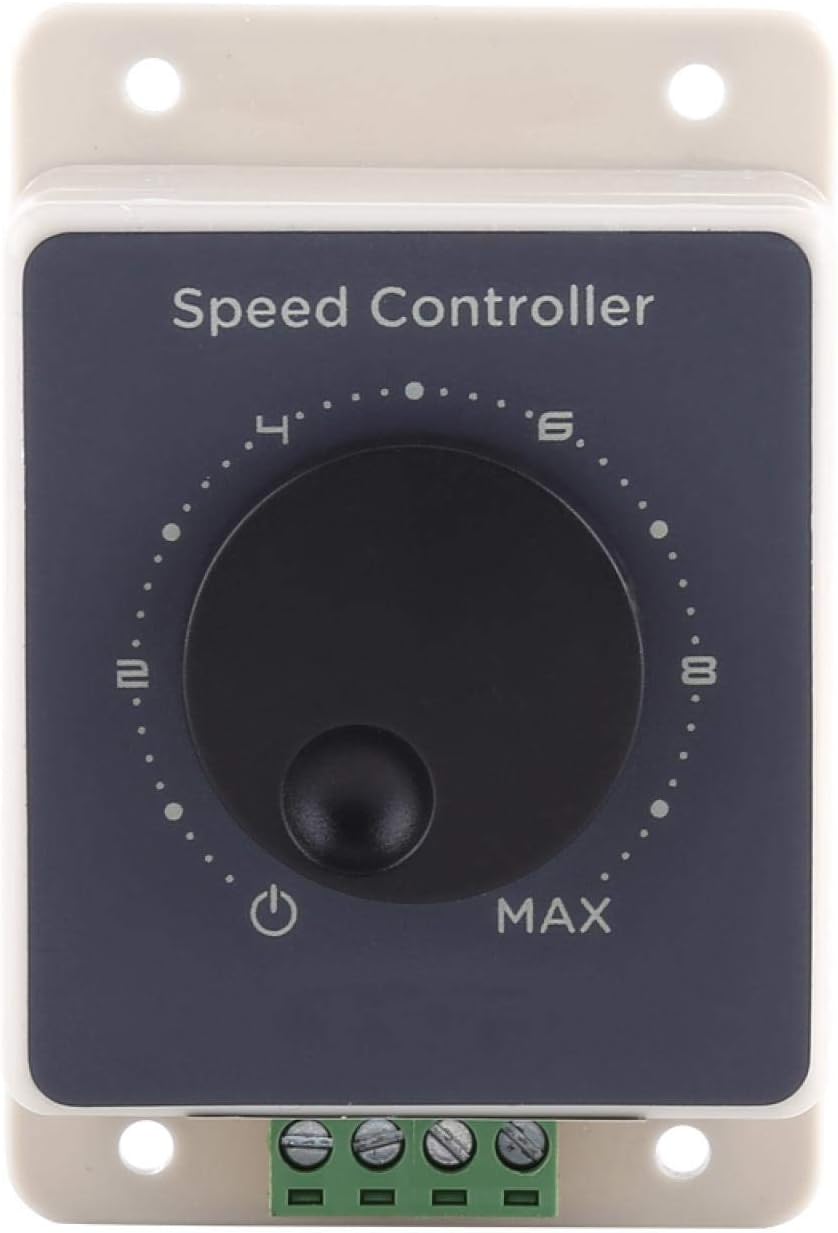

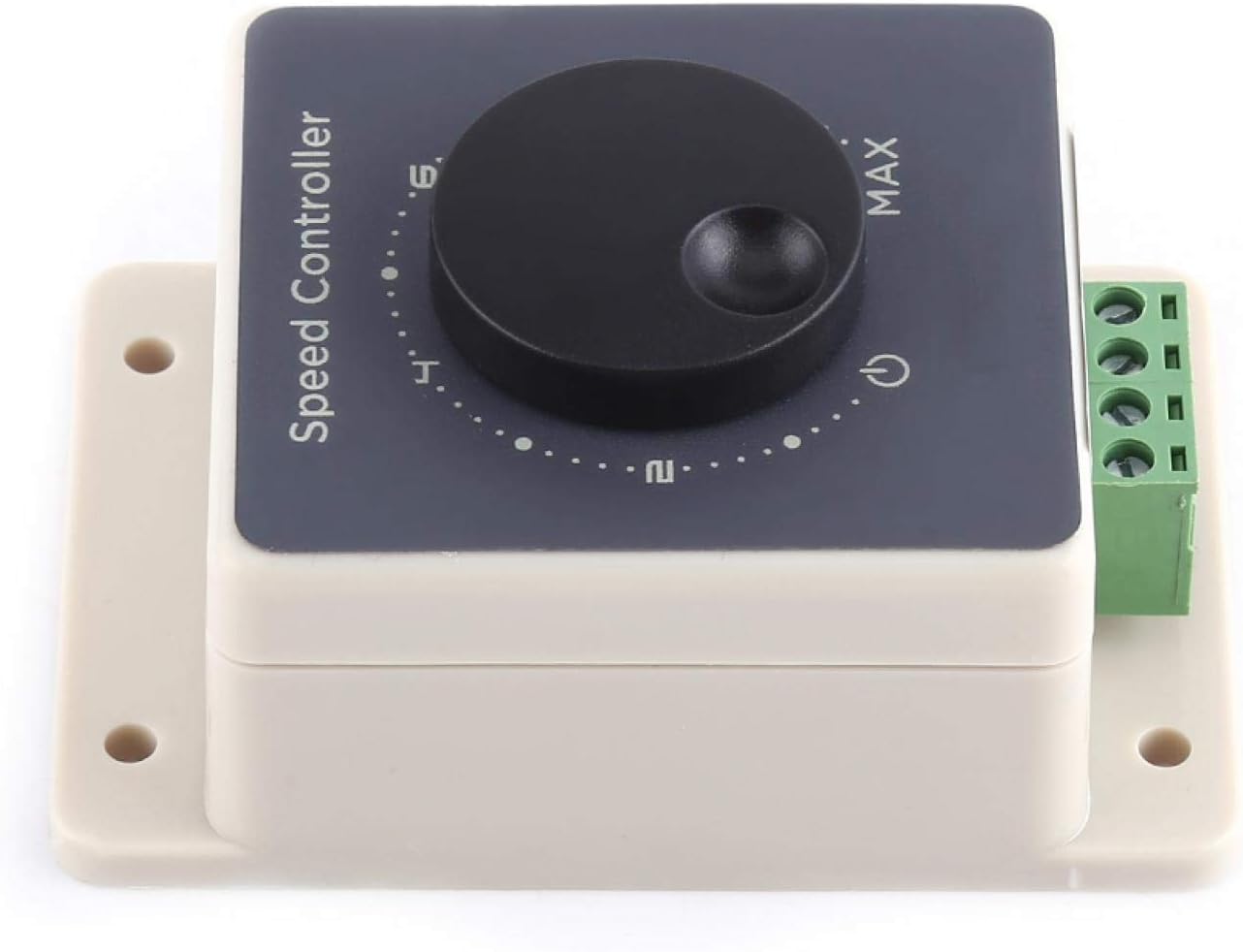

This is a simple and easy-to-use DC motor speed controller of small size, elegant appearance and stable performance. It is made with high quality circuit board which ensures a longer service life. The input voltage can be DC 10V to 60V and output voltage is 0-100% of the input voltage. This speed controller is quite convenient to set.
Features:
– This speed controller has a delicate and practical housing which is waterproof so you can use it out of doors.

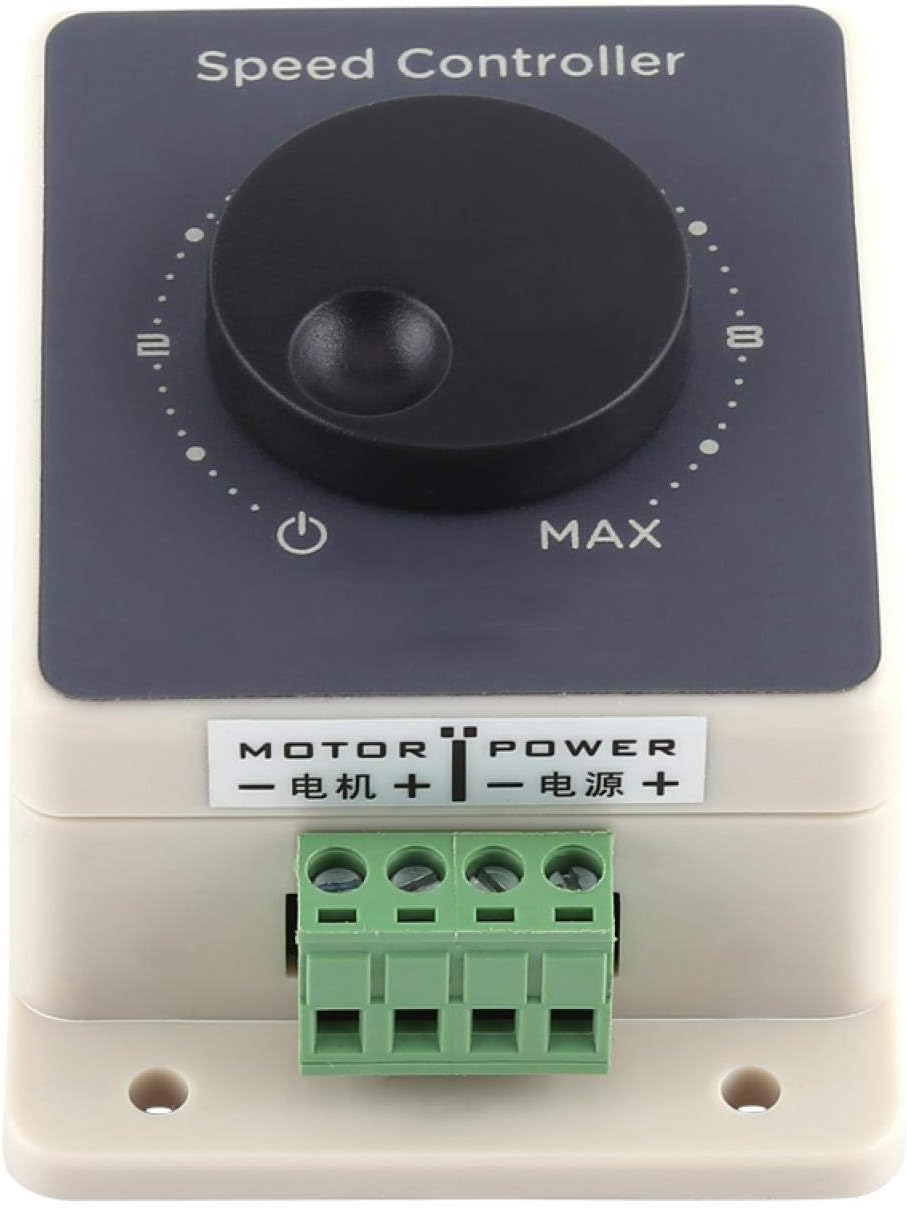

– Comes with screw terminal and a indication label of power and motor electrodes for convenient wiring.
– DC motor controller input is connected to direct current, can not be connected to alternating current, or it will be burnt.
– Make sure the positive and negative polarity is connected correctly, otherwise the controller will be damaged.
– Suitable for 12V motors with power less than 120W, 24V motors with power less than 240W, etc.
Specifications:
Potentiometer Resistance: B100K
Input Voltage Range: DC 10V-60V
Output Voltage: 0-100% of the input voltage
Control Power: 12V*10A=120W,24V*10A=240W……
Rated Current: 10A
Max Current: 20A
Speed Range: 5%-100%
PWM Frequency: 25Khz
Size: 88 x 59 x 40mm / 3.46 x 2.32 x 1.57″
Tap Hole Size: 8mm / 0.31″
Package Includes:
1 x Speed Controller
