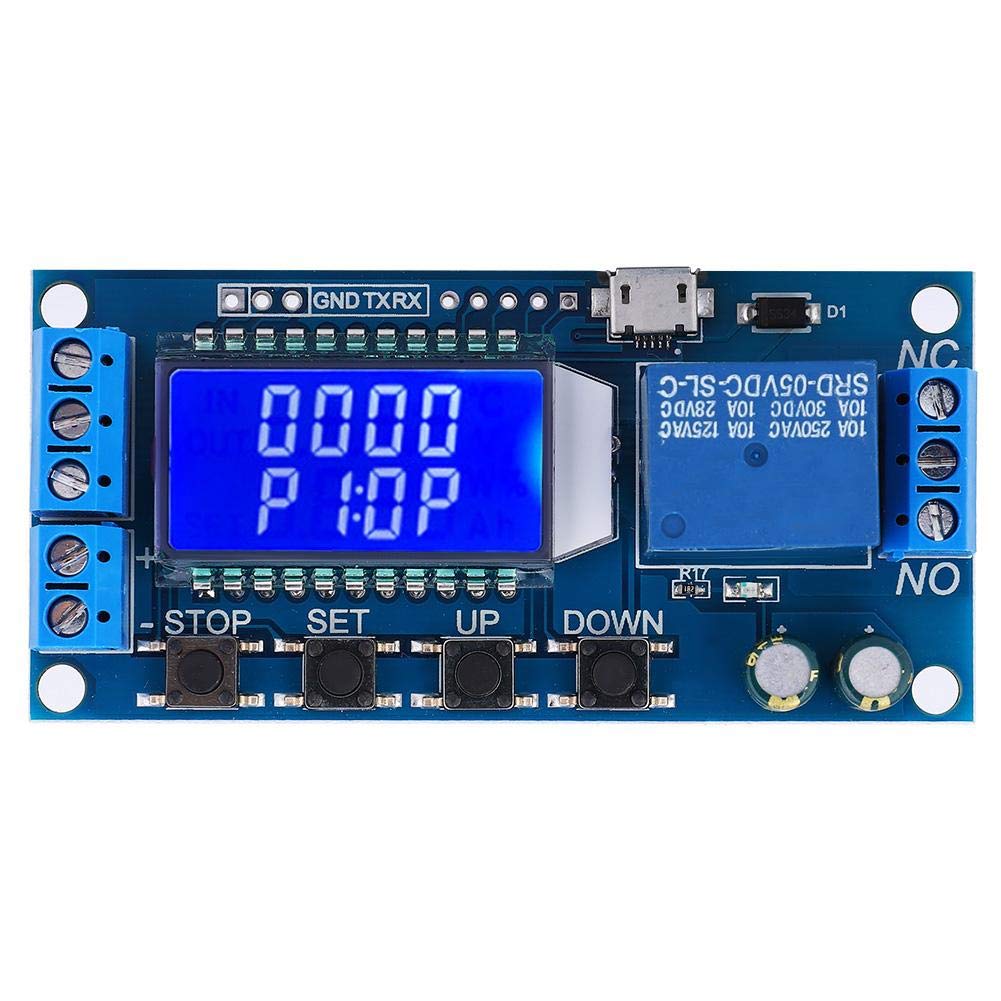

Delay Relay Module, Time Delay Relay Module,5V 12V 24V Delay Off Cycle Timer Module, 0.01s-9999min with LCD Display

Specification:
Item Type: Delay Relay Module
Working Voltage: 6–30V
Timing Range: 0.01s-9999min  continuously adjustable

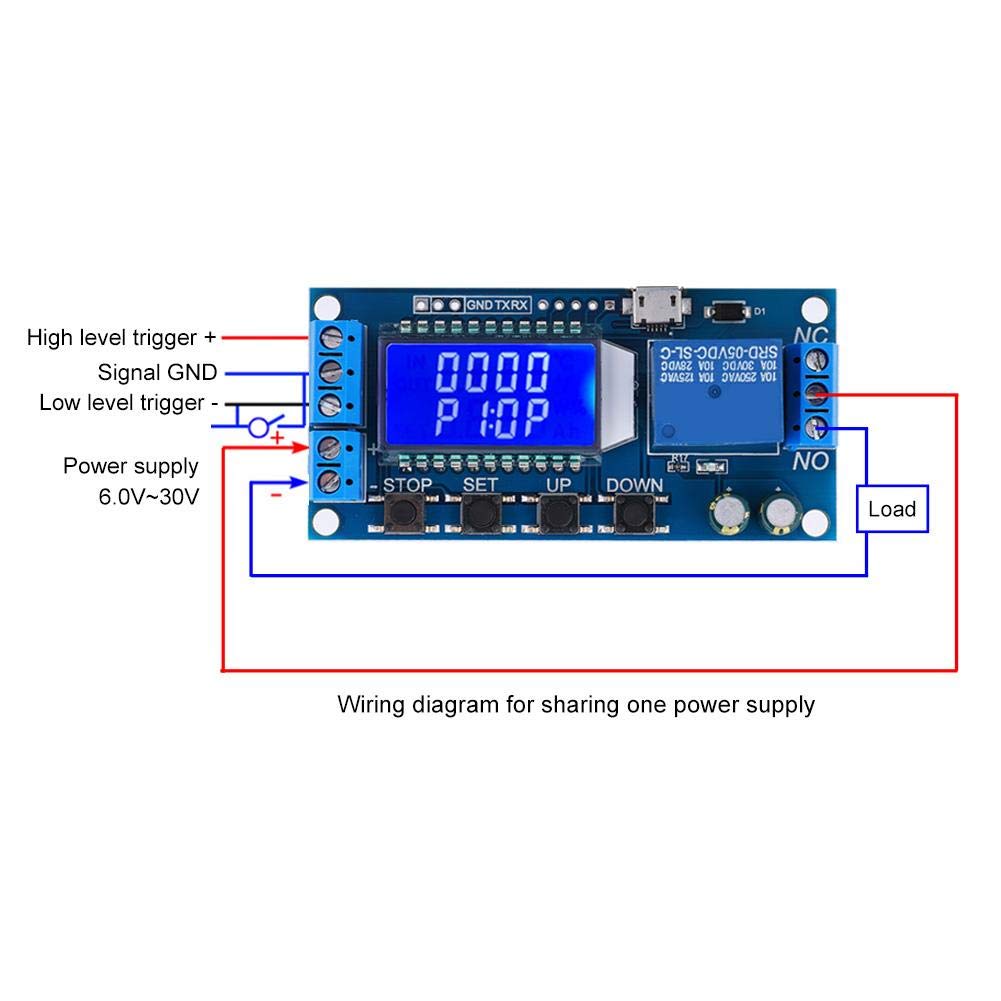

Trigger Signal Source: High Level Trigger (3.0V~24V), Low Level Trigger (0.0V~0.2V), Switching Quantity Control (Passive Switch)
Output Capability: Can control devices within 30V 5A or within 220V 5A
Quiescent Current: 15mA
Operating Current: 50mA
Service Life: >100,000 times
Working Temperature: -40~85°C
Size: 88×3.8×1.9cm / 3.15×1.5×0.75in
 How to Choose Timing Range:
In the OP/CL parameter modification interface, short press the STOP button to select the timing range:
XXXX: Timing range is 1s~9999s
XXX.X: Timing range is 0.1s 999.9s
XX: Timing range is 0.01s to 99.99s
X.X.X.X: Timing range is 1min to 9999min

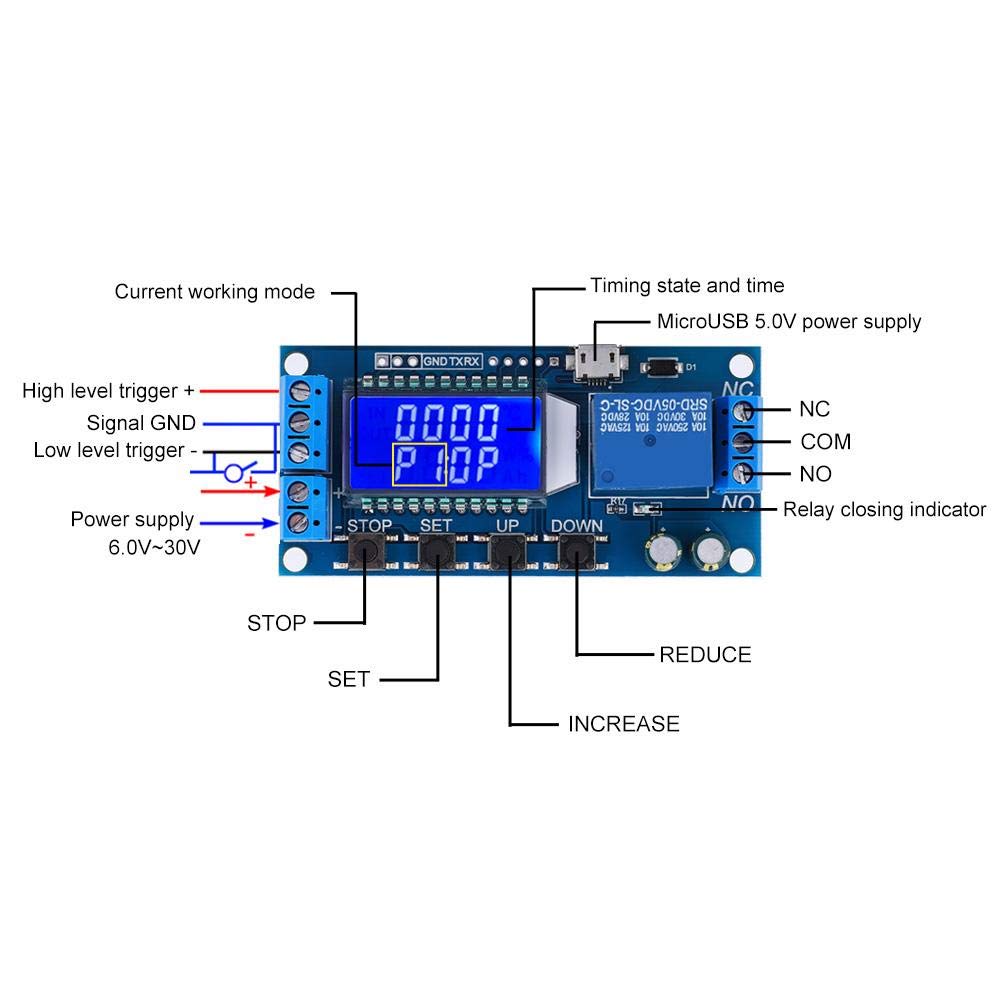

 Parameter Setting:
Parameter Description: OP: Conduction time, CL: Disconnection time, LOP: Cycle number (1-9999 times, ”—-” means infinite loop)
a) Enter the setting interface by long pressing the SET button;
b) First set the working mode, the working mode flashes reminder, set the working mode by short pressing the UP/DOWN button;
c) Short press the SET button to select the working mode and enter the system parameter settings;
d) In the system parameter setting interface, short press the SET button to switch the system parameters to be modified, short press / long press the UP / DOWN button to modify;
(Note: Short press SET in P-1~p-3, P-7 mode);
e) In the OP/CL parameter modification interface, press STOP to switch the timing unit (1s/0.1s/0.01s/1min);

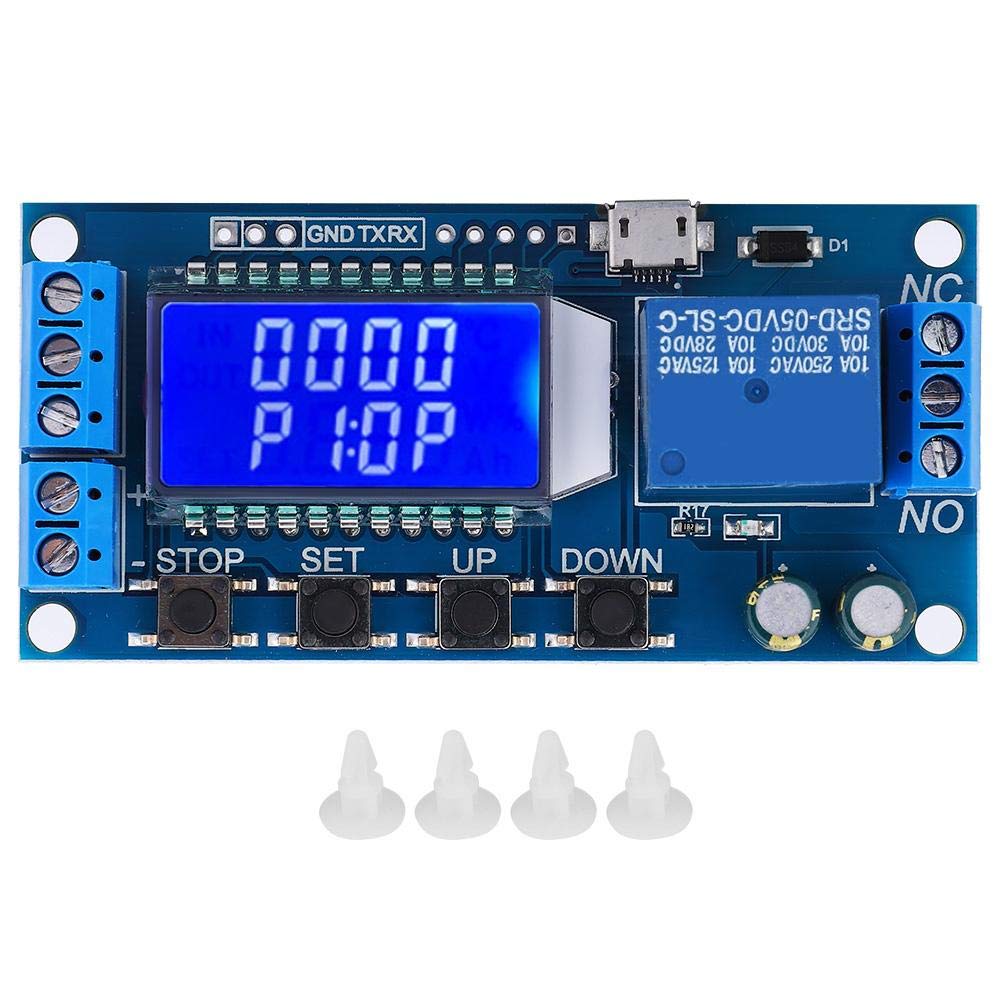

 Package List:
1 x Delay Relay Module
