Features: 1. This is a multifunctional time relay and time delay can be set by panel knob. 2. With 10 kinds of delay functions including delay on, delay off, cycle delay and so on. 3. Super wide time delay setting range of 0.1s – 10days. 4. Relay working status is indicated by LED indicators. 5. With super small volume, this relay can be mounted on 35mm DIN rail. 6. This time relay can be used for industrial equipment, lighting control, heating element control, motor, fan control and moreification: Rated power supply voltage: AC/DC 12V~240V (50-60Hz) Power terminal: A1-A2 Power consumption: AC0.09-3VA/DC0.05-1.7W Setting method: knob Setting accuracy: 10% Power indicator: Green LED Delay range: 0.1s-10 days, normally open, normally closed Repeated accuracy: 0.2% Temperature fluctuation error: 0.05%/℃, at = 20℃ Output contact: 1 x SPDT, 250VAC/24VDC Minimum switching power: 500mW Output relay indication: red LED Mechanical life: 1×107 Reset time: Max 200ms Working temperature: -20℃~55℃ Mounting method: 35mm DIN rail Mounting altitude: ≤2000m Weight: Approx. 75g/2.6ozPackage list: 1 × Multifunctional Delay Time Relay

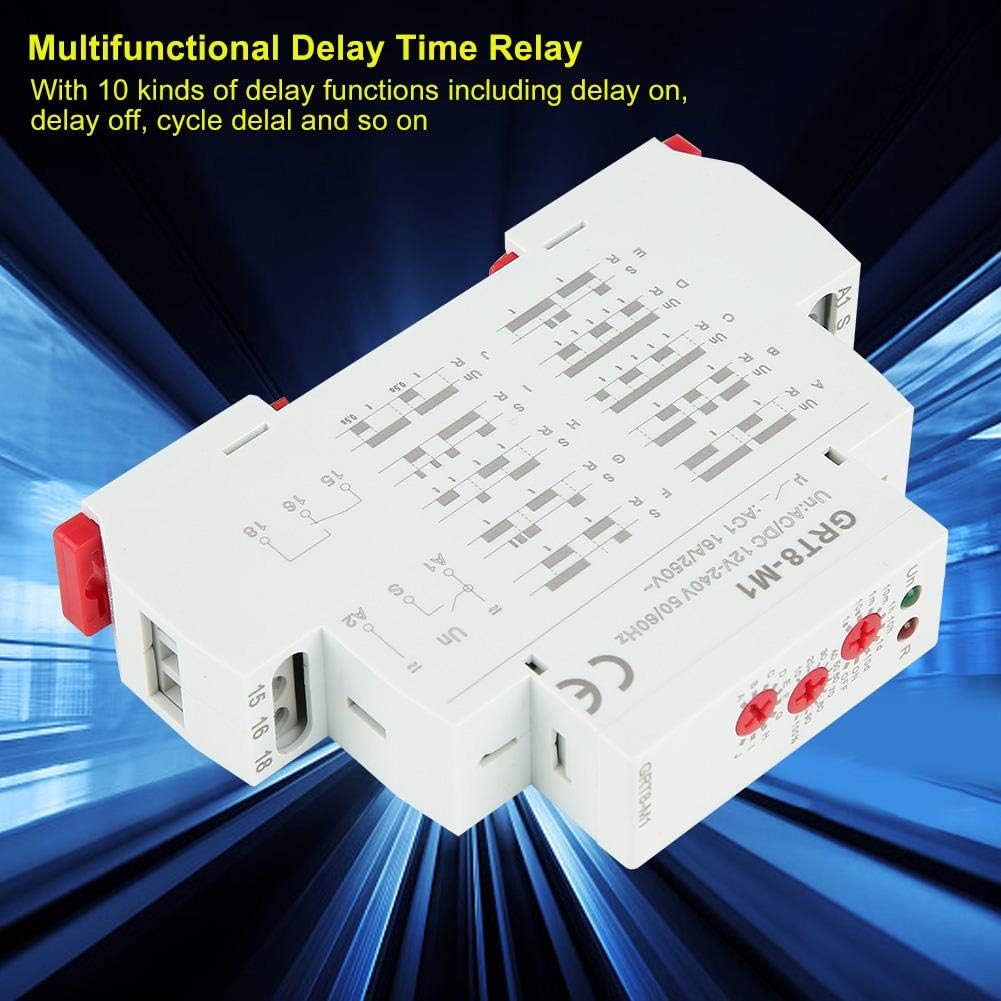

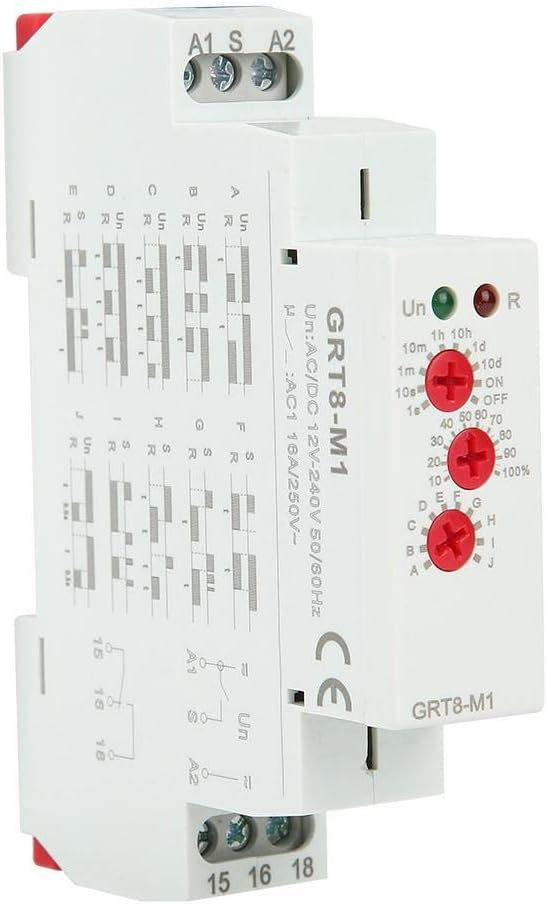

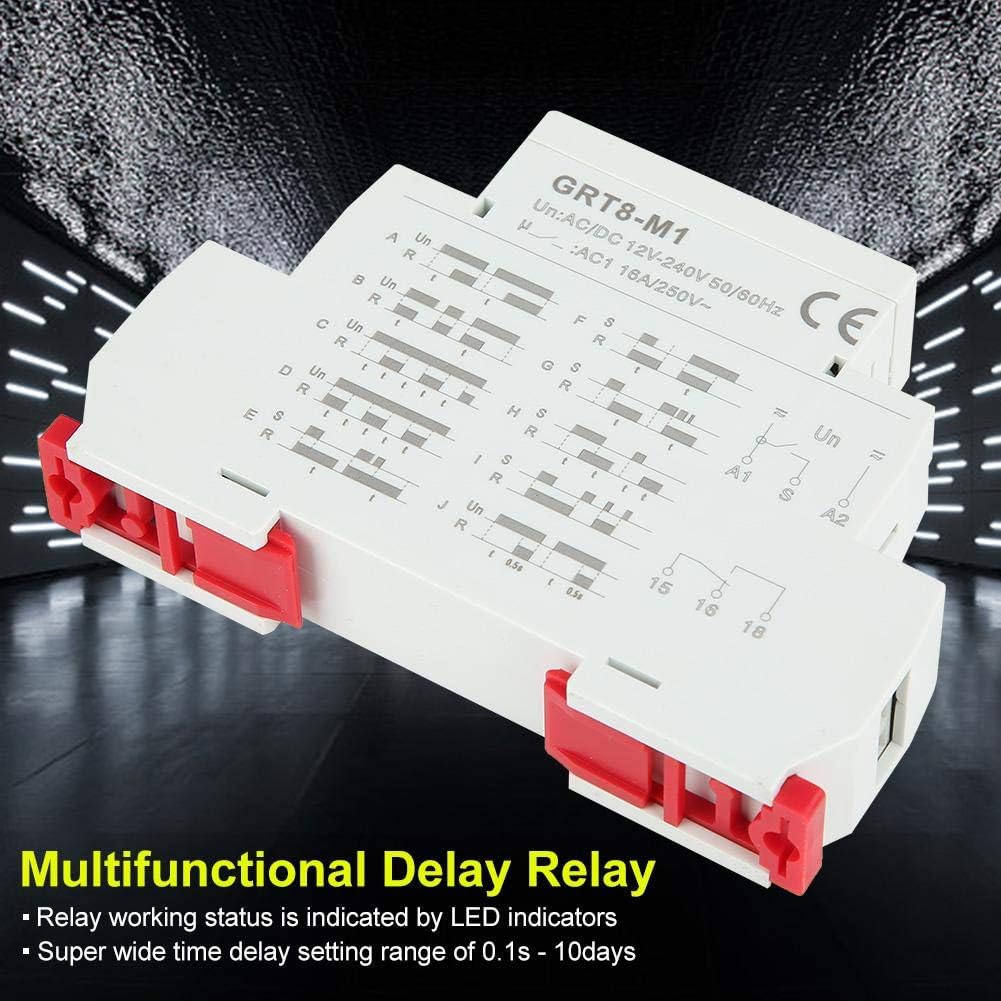

Delay Time Relay GRT8-M1 Multifunctional Time Relay with 10 Functions 35MM DIN Rail Mount AC/DC 12V~240V 50-60Hz
₹6,974
- ◇ 10 KINDS DELAY FUNCTIONS—The multifunctional delay time relay supports 10 kinds of delay functions including delay on, delay off, cycle delay and so on

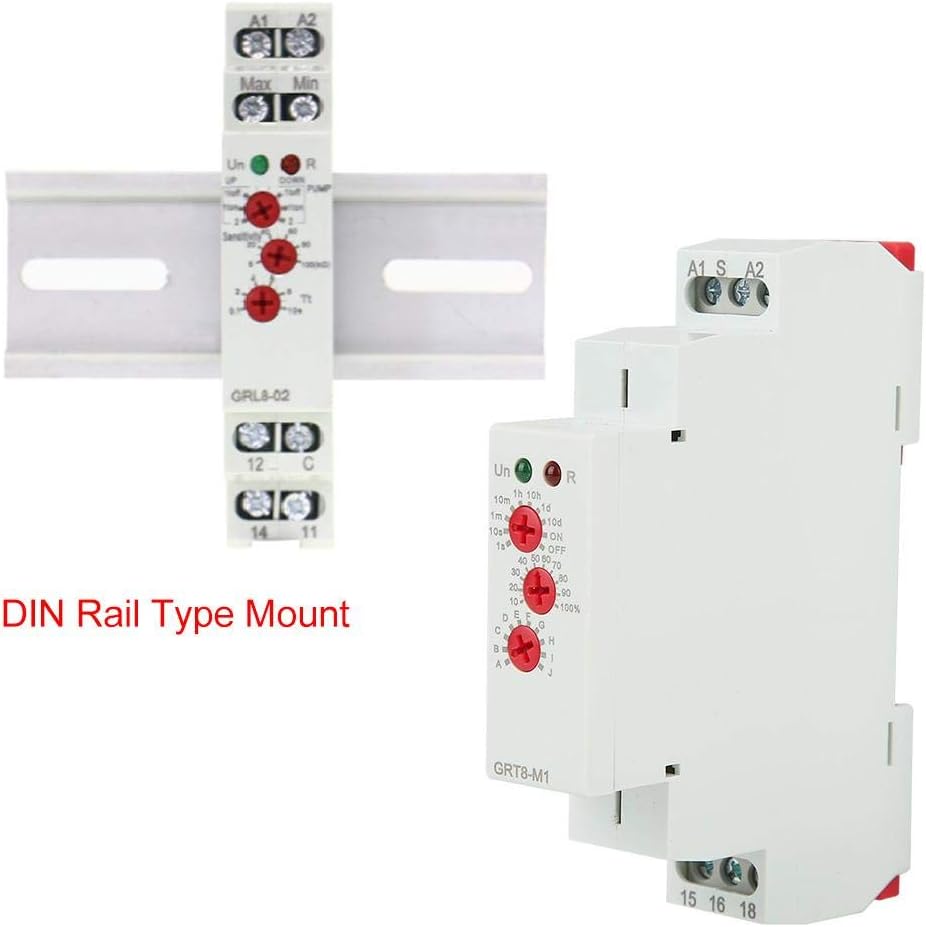

- ◇ MAIN FEATURES—The delay time relay is with super small volume, which can be mounted on 35mm DIN rail, super wide time delay setting range of 0.1s – 10days, time delay can be set by panel knob
- ◇ LED INDICATORS—Relay working status of the delay time relay is indicated by LED indicators, with green LED power indicator, red LED output relay indication
- ◇ MAIN FEATURES—The delay time relay is with super small volume, which can be mounted on 35mm DIN rail, super wide time delay setting range of 0.1s – 10days, time delay can be set by panel knob
- ◇ MAIN USAGE—The multifunctional delay time relay can be used for industrial equipment, lighting control, heating element control, motor, fan control and more
In stock
Additional information
| Weight | 0.08 kg |
|---|---|
| brand | YWBL-WH |
| dimensions | 10 x 2 x 7 cm; 80 Grams |
