Features:

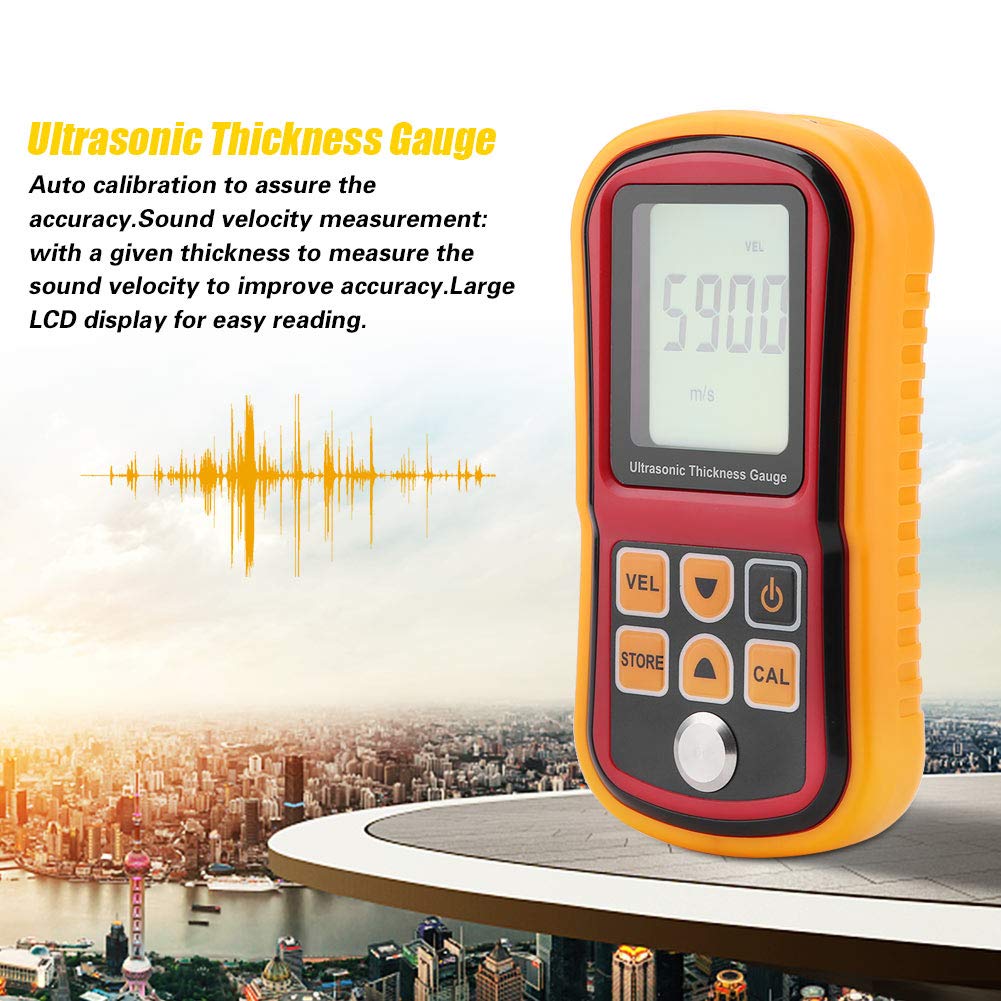

1. Auto calibration to assure the accuracy.
2. Sound velocity measurement: with a given thickness to measure the sound velocity to improve accuracy.
3. Large LCD display for easy reading.

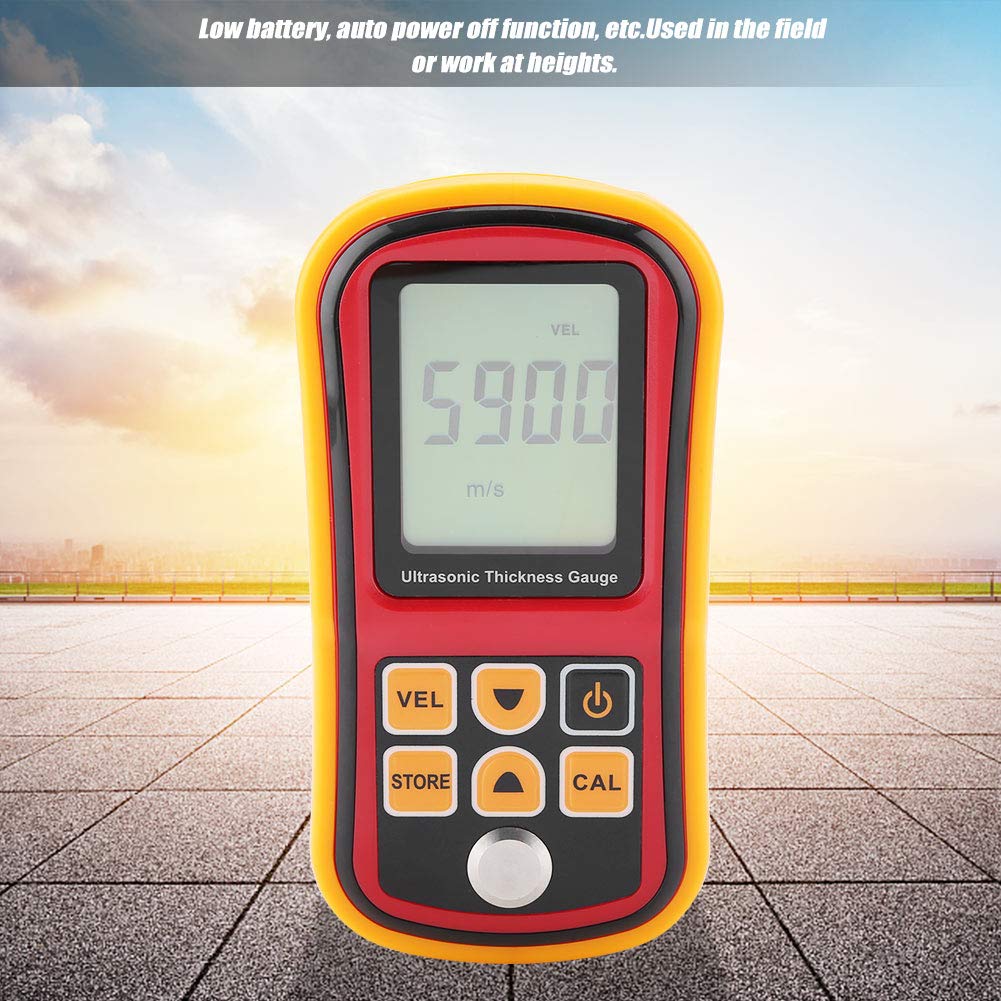

4. Low battery, auto power off function, etc.
5. Used in the field or work at heights
Specification:
Condition: 100% Brand New
Model: GM100
Measuring Range: 1.2-220mm(steel)
Accuracy: ±(1%H+0.1mm) H denotes the measured thickness
Working Frequency: 5MHz
Resolution: 0.01mm
Minimum Limit for Tube Measuring(steel): dia. 20*3.0mm(steel)
Sound Velocity Range: 1000-9999m/s
Color: Orange
Power Supply: 3 * 1.5V AAA Battery(not included)
Weight: Approx. 400g / 14.1oz
Size: Approx. 15 * 8 * 3.2cm / 5.9 * 3.2 * 1.3in

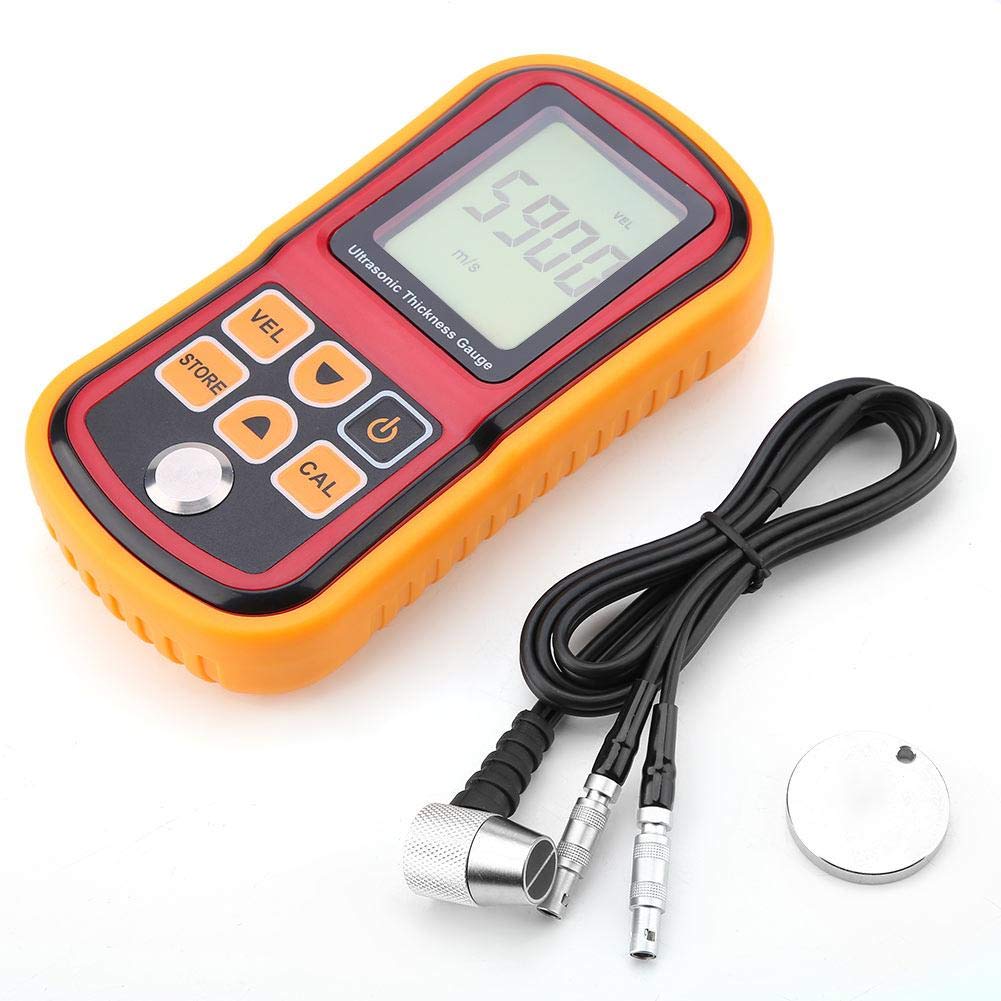

Package List:

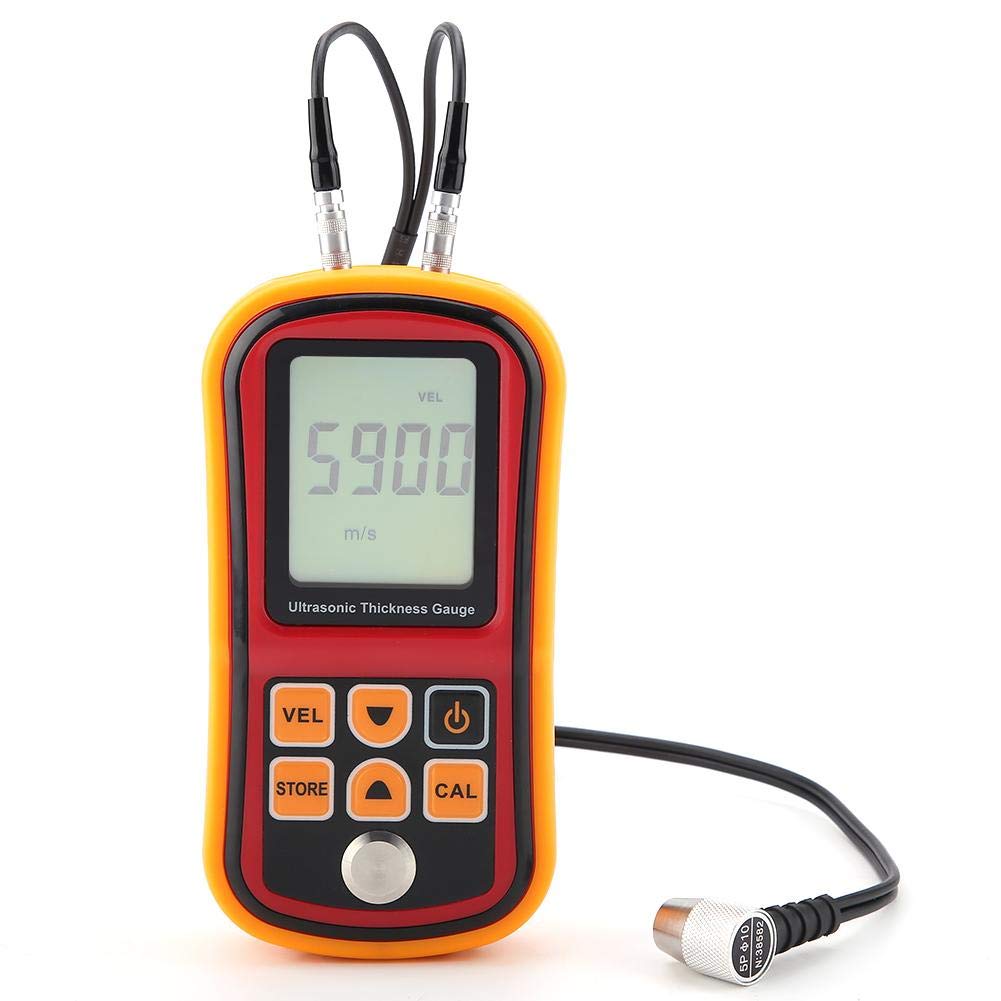

1 * Ultrasonic Thickness Gauge
1 * Dia.10 Transducer(5KHz)
1 * 4mm Sample Block
Digital Ultrasonic Thickness Gauge Sound Velocity Tester Meter Measuring Range 1.2-220mm Steel Width Testing Monitor Measuring Instrument for Steel Aluminum Copper Glass
$225.99
- 【PRODUCT SPECIFICATION】Measuring Range: 1.2-220mm(steel); Accuracy: ±(1%H+0.1mm) H denotes the measured thickness; Minimum Limit for Tube Measuring(steel): dia. 20*3.0mm(steel)
- 【WIDE APPLICATION】Ultrasonic thickness tester measures sound velocity with a given thickness, capable of measuring variety materials, including steel, copper, aluminum, glass, plastic, ceramics, resin, PVC, water and much more, used in the field or work at heights
- 【PRODUCT DESCRIPTION】This digital ultrasonic thickness gauge has auto calibration to assure the accuracy. The size of the digital thickness meter tester is approx. 15 * 8 * 3.2cm / 5.9 * 3.2 * 1.3inch
- 【PRODUCT FEATURES】Ultrasonic thickness tester measures sound velocity with a given thickness, capable of measuring variety materials, including steel/ copper/ aluminum/ glass/ plastic/ ceramics/ resin/ PVC/ water and much more
- 【SOUND VELOCITY MEASUREMENT】with a given thickness to measure the sound velocity to improve accuracy
In stock
Additional information
| Weight | 0.4 kg |
|---|---|
| brand | Oumefar |
| dimensions | 15 x 8 x 3.2 cm; 400 Grams |
