Technical parameters
Input string: 2
Output string: 2
Model: AGP-2S-15A-IP67
Rated operating voltage: DC 12V-400V or AC 90-400V
Rods: 2P
Water and dust proof: IP67 Rated current: 15A Switching capacity: 4 kA Ics=Icu
Trigger characteristic: B (3-5 I/In)
Electrical life: 4.000 times
Mechanical life: 10.000 times
Standard: IEC60898, GB10936
Operating temperature: -30°C to +70°C
The DC quick wiring miniature It features fast on-off circuit, thermal overload protection, short circuit protection, and can also be used for AC circuit output protection.

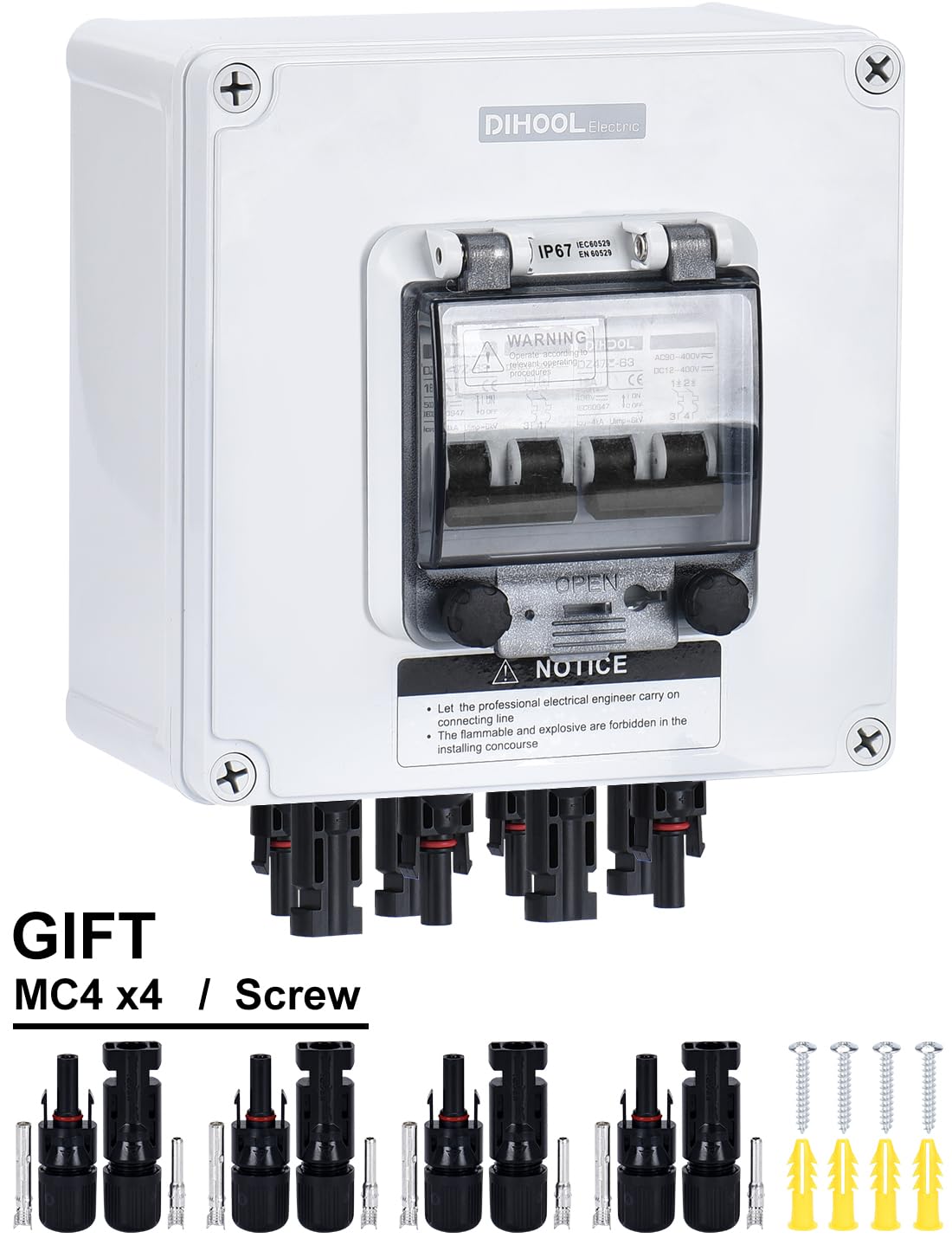

DIHOOL DC Circuit Breaker PV System DC12V-DC400V 2 String 2 Pole 15A IP67 Waterproof Solar Circuit Breaker Fuse Automated Circuit Breaker (2 in 2 out)
$123.99
- 15-A-DC circuit breaker, no polarity, IP67 waterproof box With Solar connectors for faster and safer installation, plug and play
- Rated Voltage: DC 12-400V Protect, and Je Pole or AC 90,400 V Protect L and N Pole
- How do I choose the current? The maximum current of the load should be 80% lower than the current of the circuit breaker. For example, a 12V 100-W solar module with a current of max. 8 A fits when the 10-A line circuit breaker fits that this 15-A current DC miniature circuit breaker is suitable for the load current between 8 A and 12 A
- With IP67 waterproof and easy to install, the transparent cover also facilitates checking the status of the circuit breaker.
- The Breaker Box is suitable for grid-connected photovoltaic solar modules and grid-independent solar power generation systems. PV array. Motorhome solar
In stock
Additional information
| Weight | 1.3 kg |
|---|---|
| Brand | DIHOOL |
