Specifications: Memory support: support CFast interface flash card, can support 512G capacity. External interface: USB3.0. Host interface: USB2.0/3.0 compatible. Number of cloned disks: one pair of four (source flash card clone pair). Product features: 01 connected computer read and write 02 offline clone copy Shell material: ABS + aluminium alloy + PVC. Matching line length: 80 cm. Product net weight: 306 g without adaptor. Product size: 163 x 125 x 41 mm.
PM mode: 1. CFast SSD insert into the A-E card slot. 2. Mode is adjusted to “PM” mode. 3. Turn on the power and turn the switch to “ON” Connect the computer to read and write normally. Clone mode: 1. The actual capacity of the target disk (BCDE) must be greater than or equal to the source disk (A). Insert the CFast SSD into the A-E card slot. 2. Change the mode to “Clone”, turn on the power switch, and wait for the corresponding drive to light up. 3. Press the clone button twice, the cloning machine will make a “drip” sound, and the digital progress will start from 0%. 4. After the progress reaches 100%, two to three “drips” will be issued and the clone will be completed. Note: This duplicator is a 1:1 original clone. If there is data in the target disk, it needs to be backed up in advance, otherwise the data will be overwritten by the source disk. The new disk does not need to be initialized and can be used directly as the target disk. If you want to stop cloning, press the clone button once, if you want to continue, press the clone button again. If the cloning error triggers the buzzer alarm, press the “Mute” button to cancel the alarm sound.

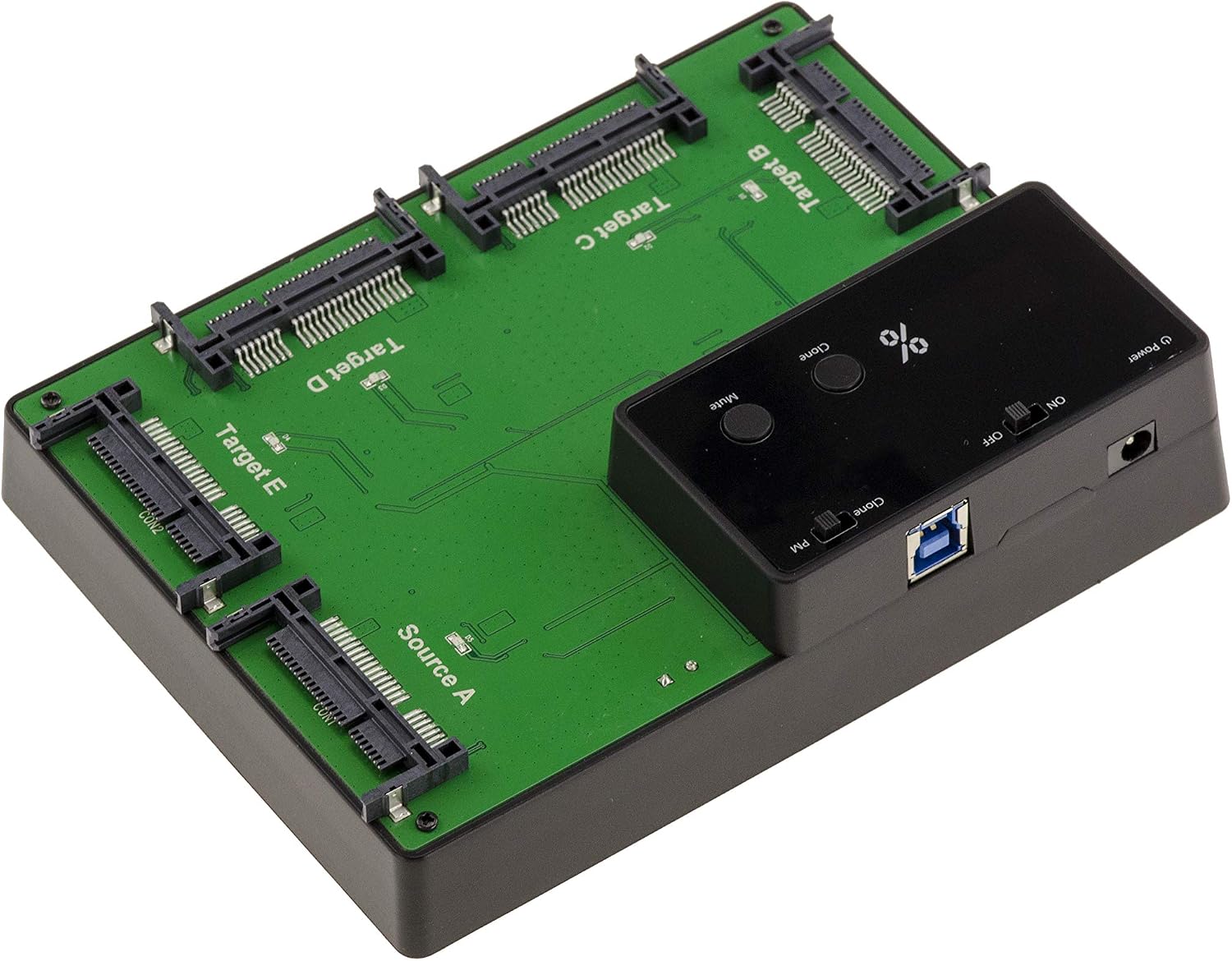

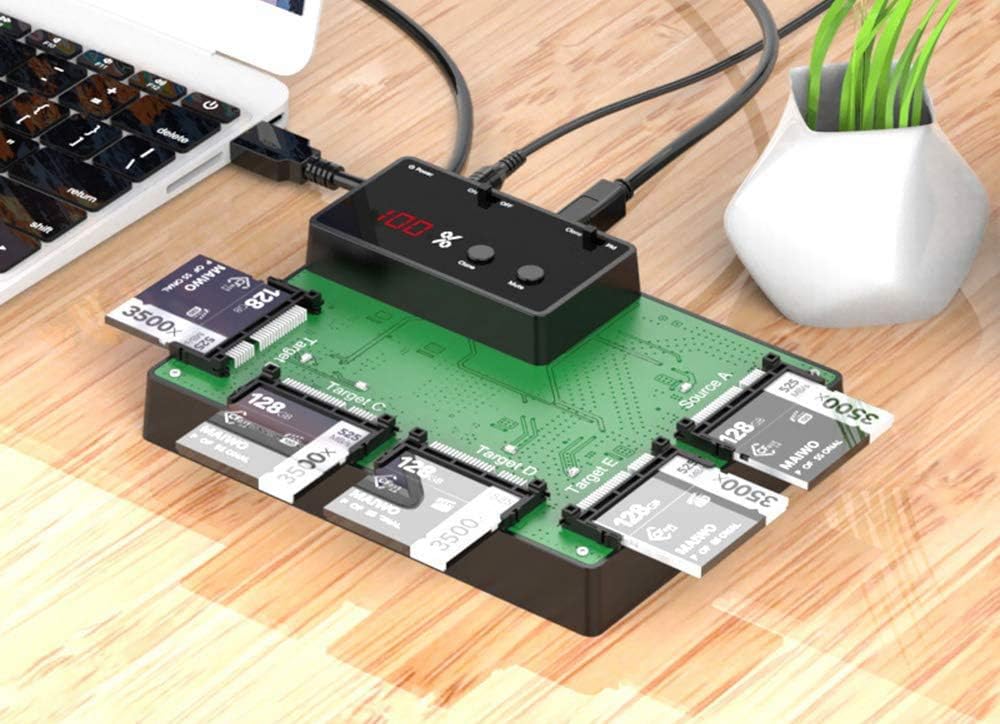

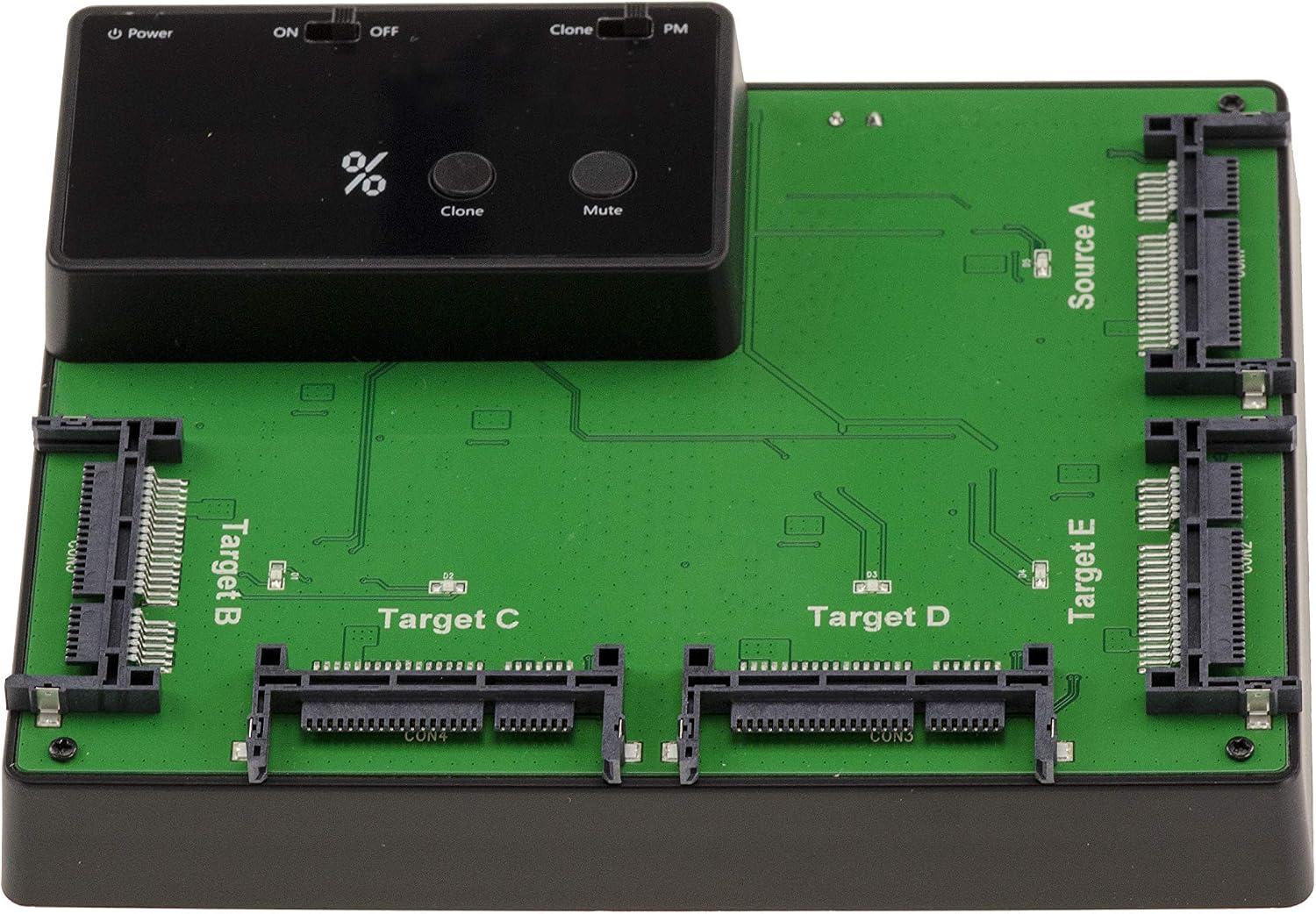

Docking Station. Dock for 5 CFast USB 3.0 Link Cards with Clone Function External Power Supply. USB 3 5G
$207.99
- Make sure this fits by entering your model number.
- CFast Card Dock Maximum capacity per 512G card. USB 3.0 binding, backward compatible USB 2.0. Type “A” plug
- Compatible with all Windows and MAC systems. Comes complete with cord and external power supply.
- Function 1, access to card data: connected to a PC, cursor positioned on “PM”, this dock will allow access to the contents of the CFast cards to read or edit the contents (read/write with 5GB speed in Superspeed).
- Function 2, cloning one card to the other 4: offline, i.e. not connected to a PC but only connected to its power supply, this dock will allow the content of a CFast card (“source”) to the other 4 (“target”) to be identical. Position the cursor to “clone” and then press the button on the front, that’s all! Indication of the progress of cloning by digital counter.
In stock
Additional information
| Weight | 0.71 kg |
|---|---|
| brand | KALEA INFORMATIQUE |
| dimensions | 29.6 x 18.8 x 6.8 cm; 710 Grams |
