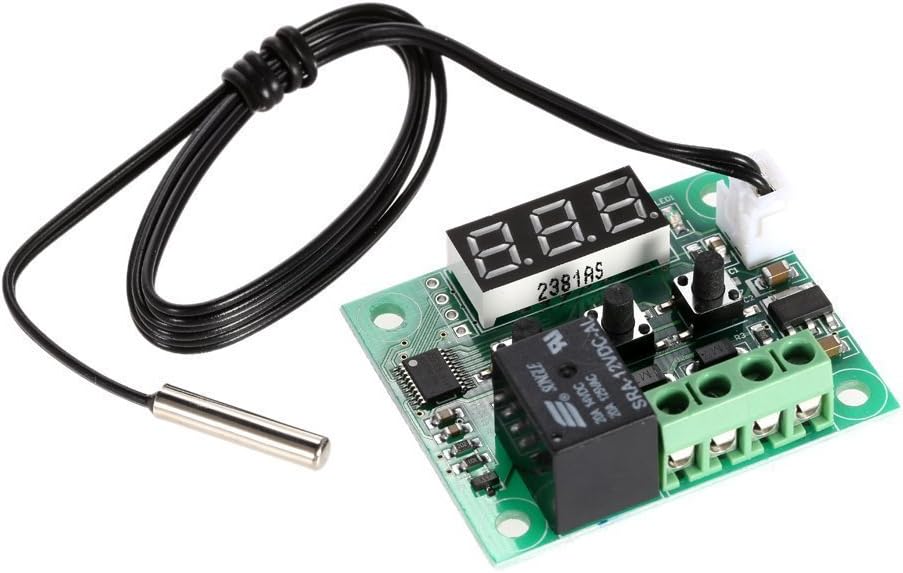

DollaTek -50-110°C W1209 DC 12V Digital Mini Thermostat Temperature Controller Control Switch Sensor Module

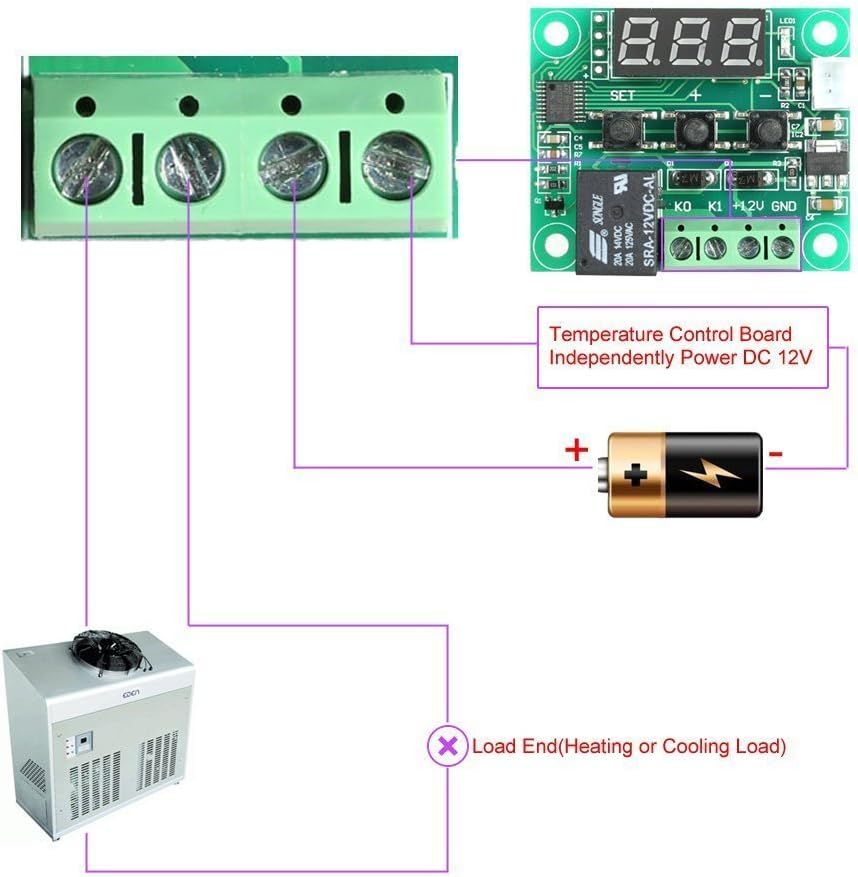

DollaTek -50-110°C W1209 DC 12V Digital Mini Thermostat Temperature Controller Control Switch Sensor ModuleDescription:This Temperature Control Controller can used in the (liquid, mold, space) and other control heating, also can be used (box, the device, water, pet rooms, air conditioning) and other control refrigerationificationsTemperature range :-50-110 °CResolution: When temperature is 0.1°C, the resolution is -9.9~99.9, other temperature segment is 1°CControl accuracy: 0.1 °CHysteresis accuracy: 0.1°CRefresh rate: 0.5SHigh temperature protection: 0-110°CSupply voltage: DC 12VStatic current:≤35MA, attract current≤65MAOutput voltage: DC 12VOutput power: 10A relayMeasurement input: NTC (10K 0.5%) Waterproof SensorEnvironmental requirements: -10 ~ 60, Humidity 20% -85%How to use: Connect the power supply and the load, you can supply to the controller, Is displayed as a measured temperature, Press the SET button, the display flashes the temperature, Press – to set the desired temperature, After setting press SET to confirm return, The controller automatically performs the relay by setting off! Lights, LED status descriptions: Indicator: Off The relay is switched off, Always indicate the relay is closed. LED: Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close the relay, the display — as high temperature protection. Package included:1x digital temperature control switch
