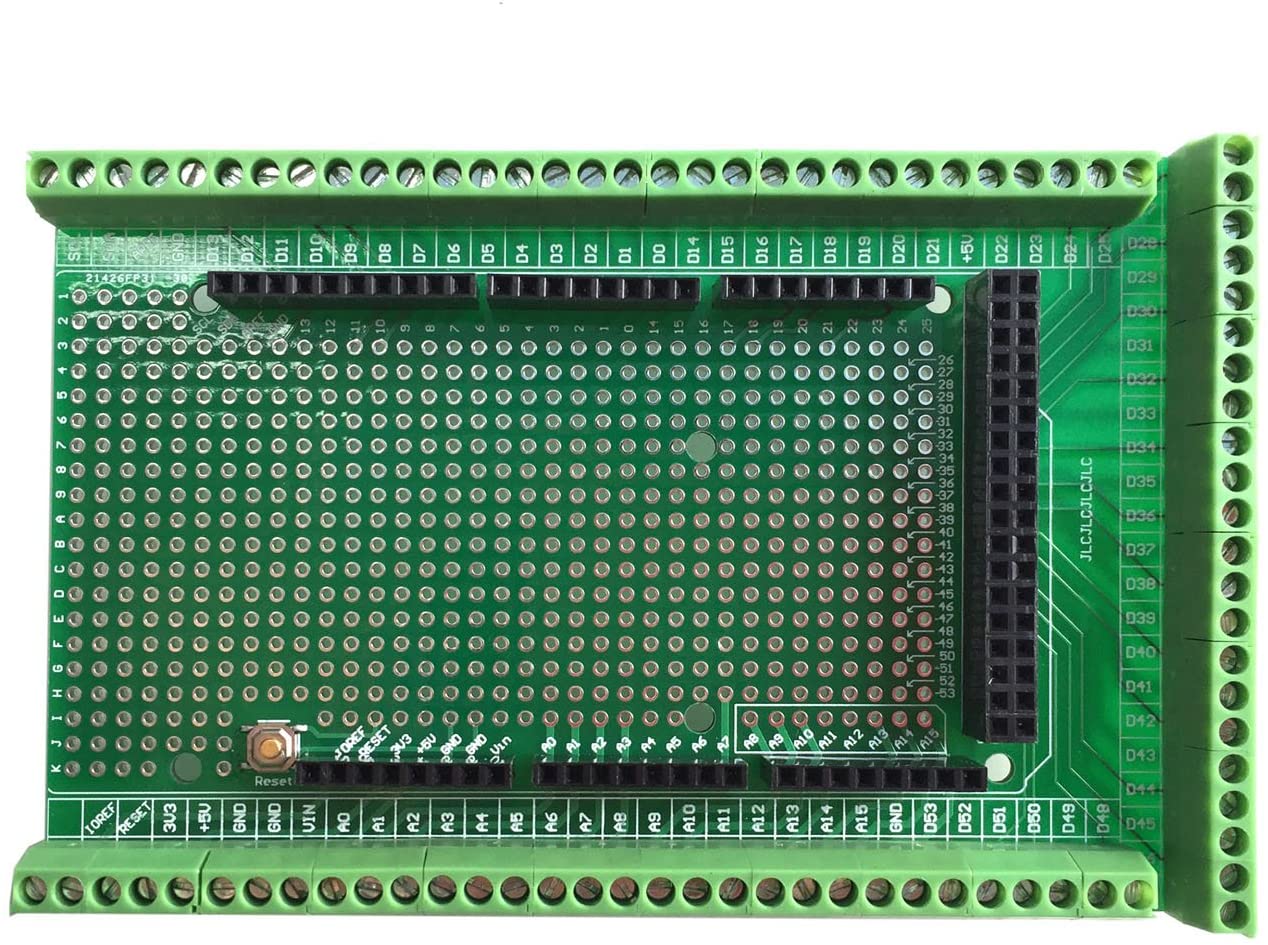

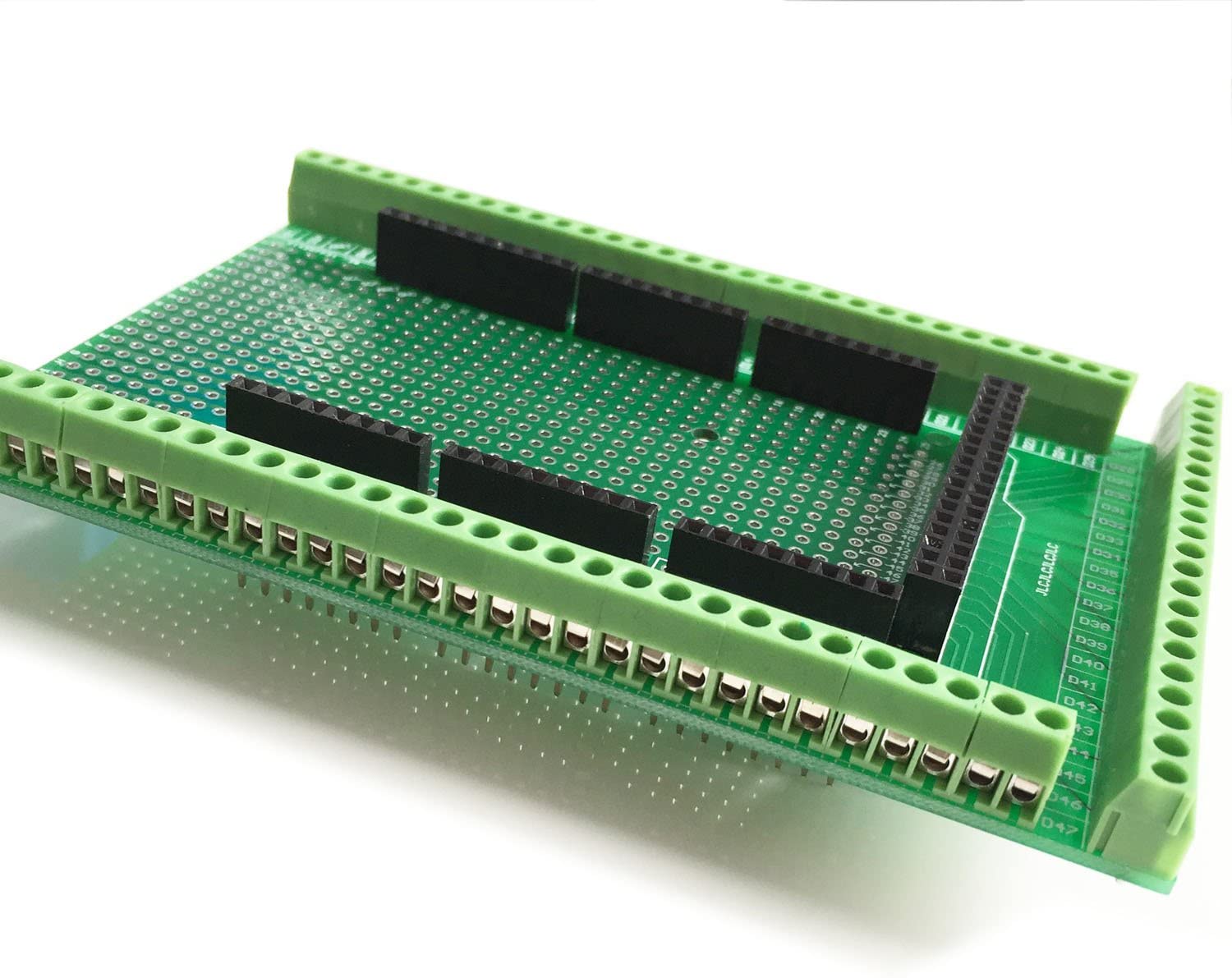

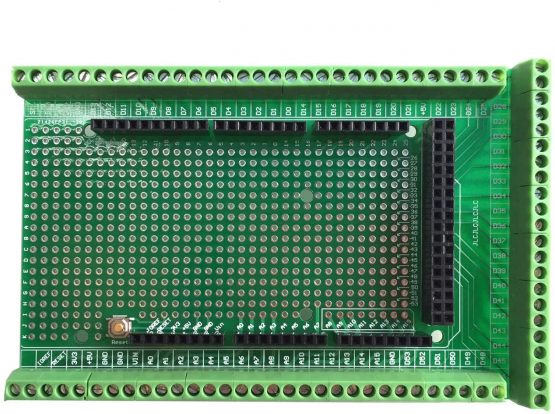

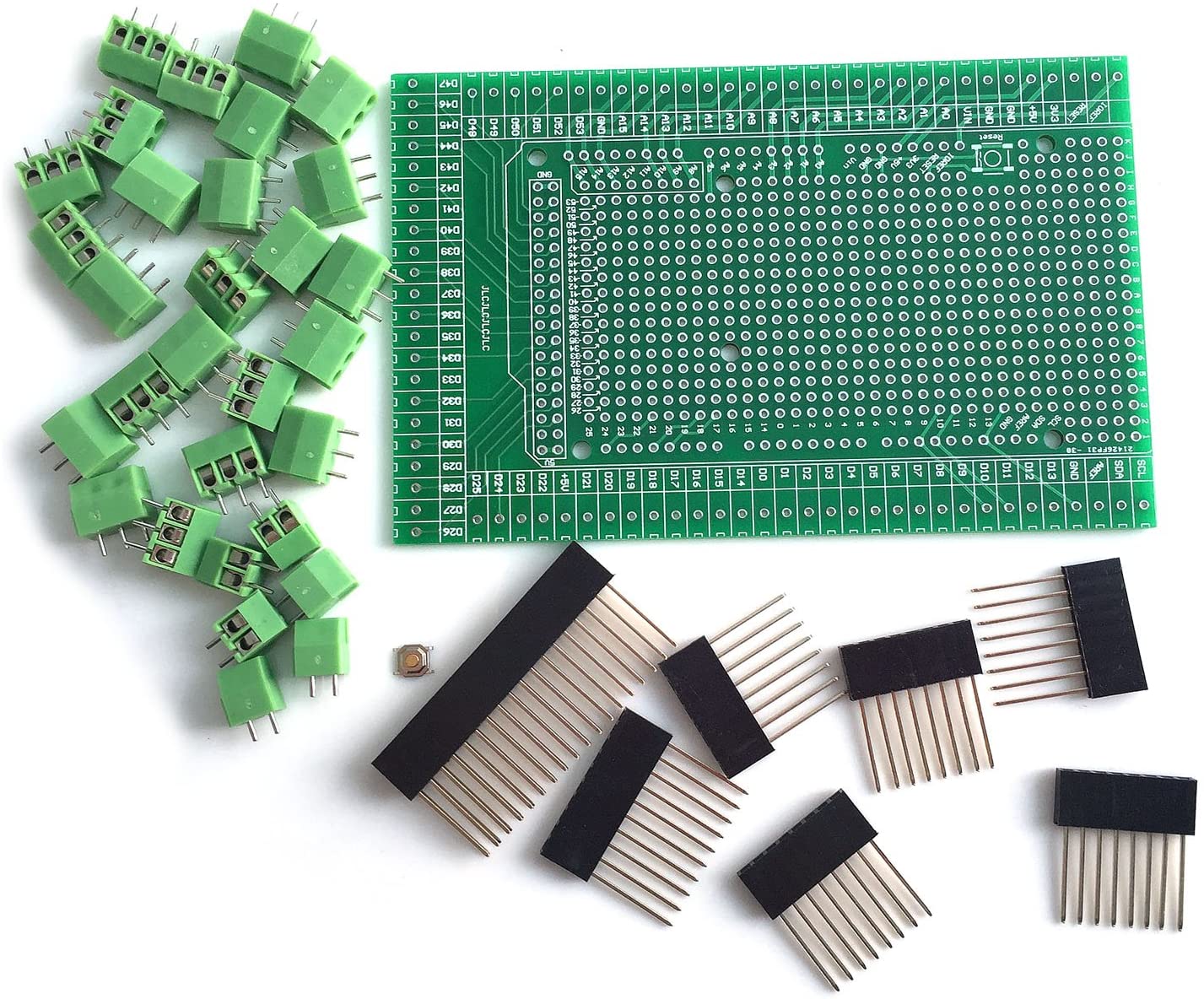

DollaTek Prototype Screw / Terminal Block Shield Board Kit For ArduinoMEGA-2560 R3The Kit include Prototype PCB, Terminal Blocks, Female Header Socketssembled, variety mount methods, you can make flexible use: FR-4 fiber glass PCB, dual copper layers, size 120mm x 78mm. Pads grid / pitch 2.54mm / 0.1″, hole diameter 0.8mm. Terminal block pitch 3.5mm / 0.138″, hole diameter 1.2mminal Block: Pitch 3.5mm / 0.138″ mini terminal blocks, total 84 pins(3pole x24pcs, 2pole x6pcs ). Wire range 26~16AWG, strip length 5mm, screws M2 steel, pin header and cage brassle Header Socket: Pitch 0.1″/2.54mm, pin length 15mm / 0.59″ Single row 10pin x1pcs, singal row 8pin x 5pcs, dual row 18pin x1pcs: This is not original Arduino product. It only a substitute accessories from DollaTekPackage included:1x DollaTek PCB Board
DollaTek Prototype Screw/Terminal Block Shield Board Kit For MEGA 2560 R3 DIY
$22.99
- Make sure this fits by entering your model number.
- Unassembled, variety mount methods, you can make flexible use.

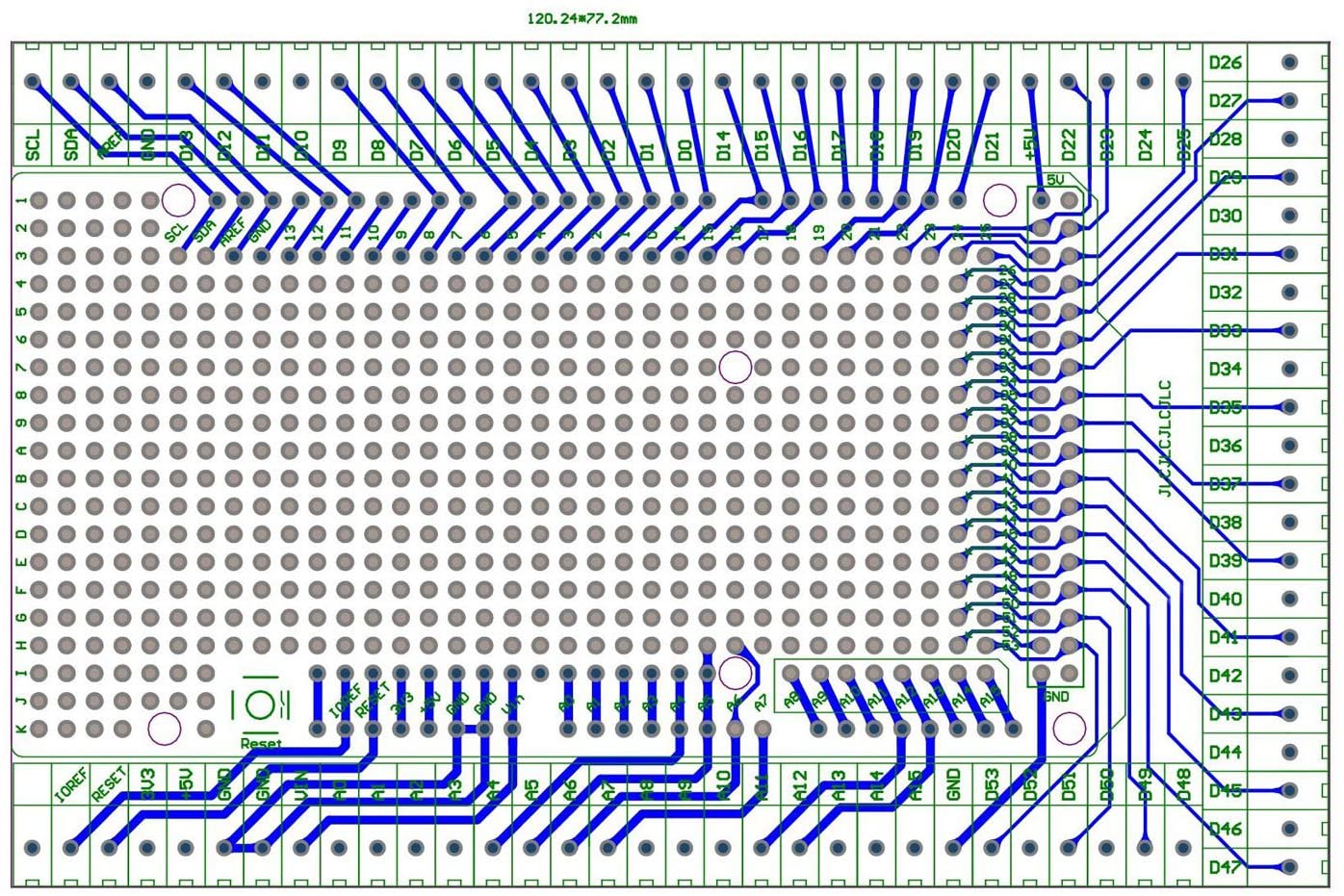

- PCB: FR-4 fiber glass PCB, dual copper layers, size 120mm x 78mm. Pads grid / pitch 2.54mm / 0.1″, hole diameter 0.8mm. Terminal block pitch 3.5mm / 0.138″, hole diameter 1.2mm.
- Terminal Block: Pitch 3.5mm / 0.138″ mini terminal blocks, total 84 pins(3pole x24pcs, 2pole x6pcs ). Wire range 26~16AWG, strip length 5mm, screws M2 steel, pin header and cage brass.
- Female Header Socket: Pitch 0.1″/2.54mm, pin length 15mm / 0.59″ Single row 10pin x1pcs, singal row 8pin x 5pcs, dual row 18pin x1pcs.
In stock
