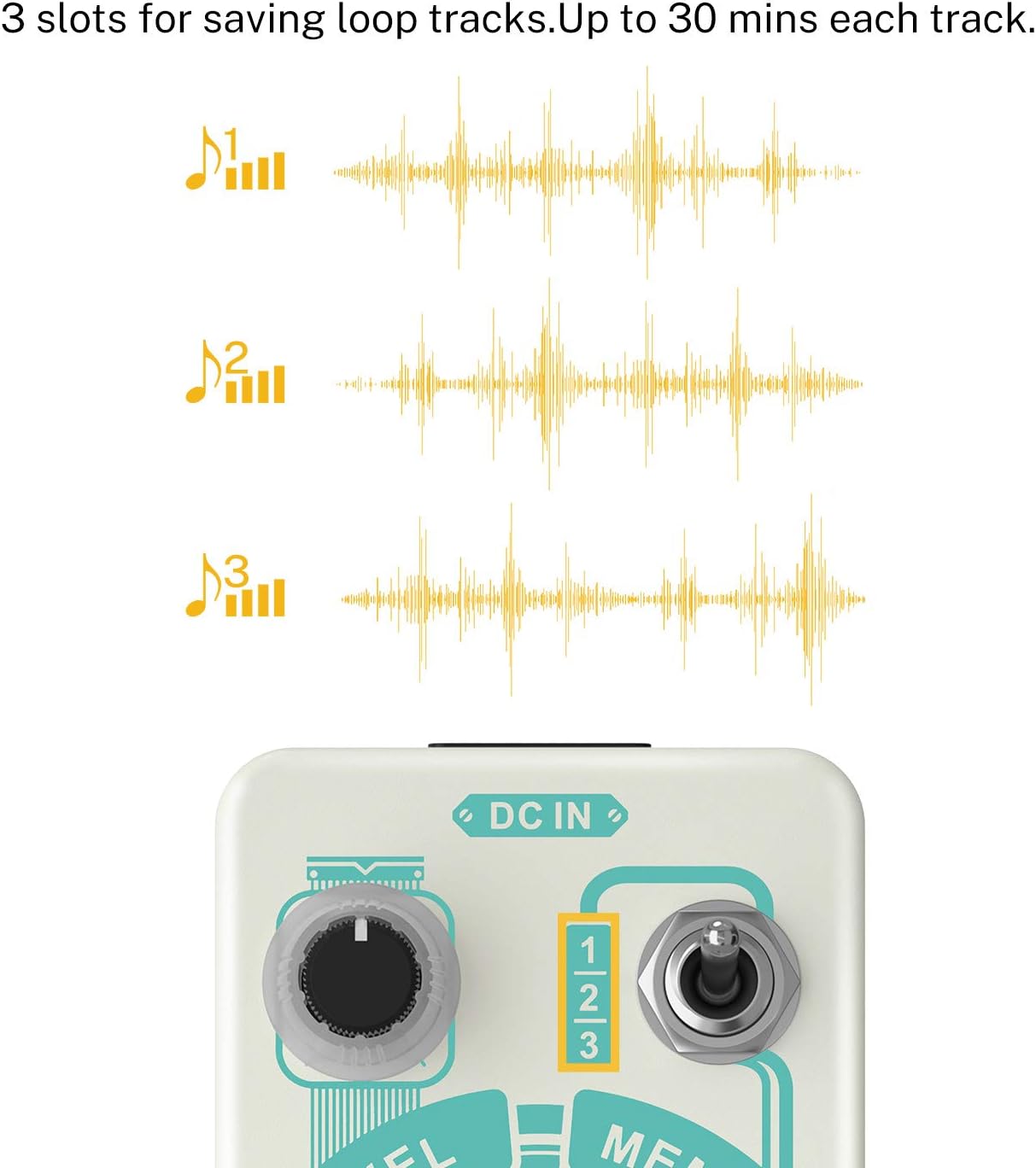

Donner Triple Looper Guitar Effect Pedal, Loop Pedal with Time Progress Bar Display 3 Slots for Saving Loop Tracks, Loop Station up to 30 mins Unlimited Overdubbing

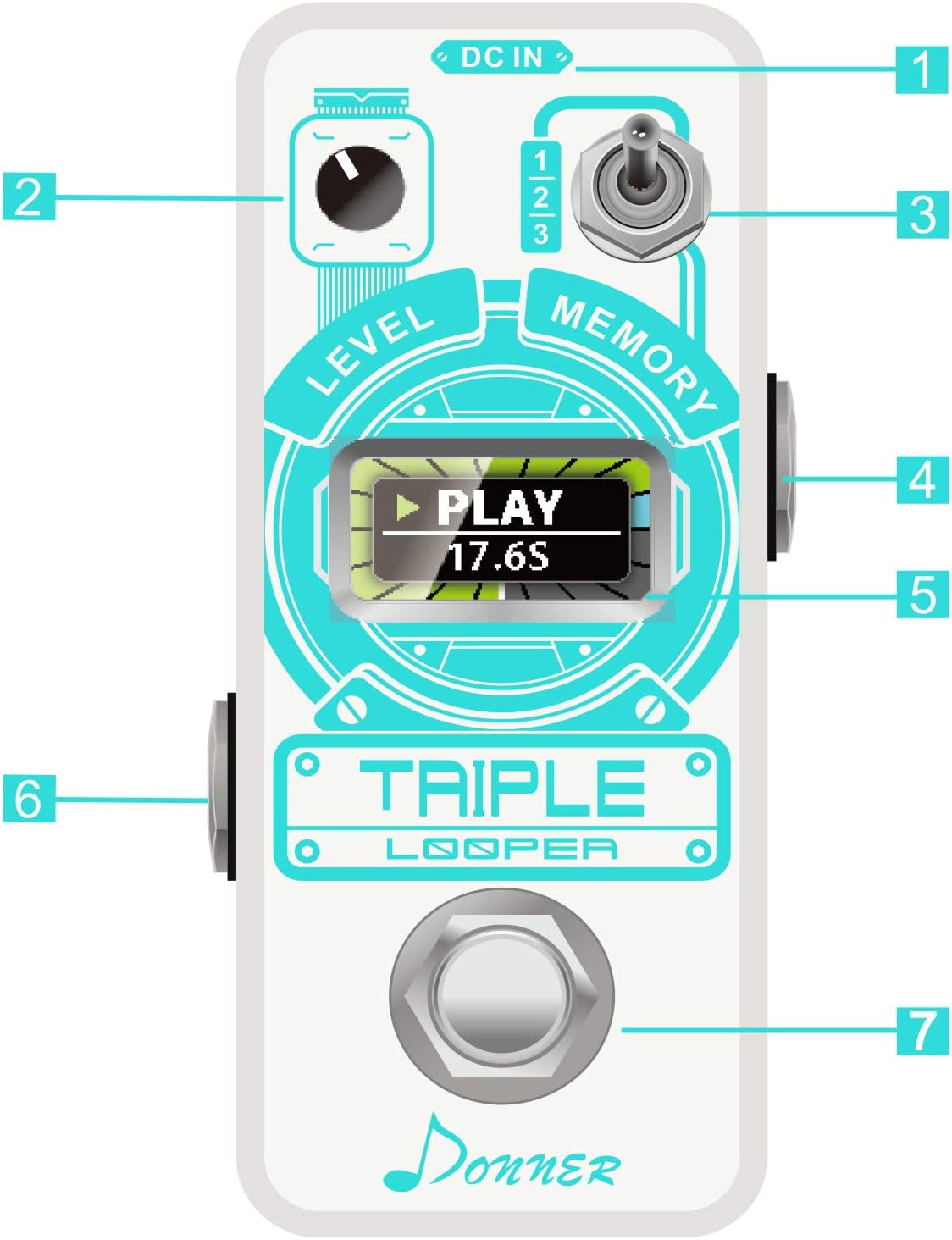

CONNECTIONS Connect your instrument to the INPUT of the TRIPLE LOOPER. Connect your amplifier or effects to the OUTPUT of the TRIPLE LOOPER. Please connect 9V DC (Center Negative) power supply to DC IN. Make sure the current value is at least 300mAROLS RECORD: Select an empty slot. Press the footswitch once to start recording. The screen will display REC, indicating the loop is being recorded. PLAYBACK: During recording, press the footswitch once to end recording and begin playback. The screen will display PLAY indicating playback mode. DUB: Press the footswitch once during playback to overdub on top of thepreexisting track. UNDO/REDO: During playback mode, press and hold the footswitch for 1 sec to delete the last track. The screen will display UNDO. Press and hold the footswitch again to reset. The screen will show REDO. STOP: Press footswitch twice to promptly stop playback. The screen will show STOP. Press again to start playback again. Clear All: In stop mode, press and hold the footswitch for 1 second to delete all tracks in the current slot. The screen will show CLEAR, then EMPTY, if the slot is successfully clearedifications Maximum Recording Time of Single Track: 30 minutes Maximum of Dub Tracks: Unlimited Input: 1/4” mono jack (impedance: 2.2M Ohms) Output: 1/4” mono jack (impedance: 100 Ohms) Power Requirements: DC 9V 300mA Dimensions: 42mm x 93mm x 52mm (W*L*H) Weight: 156.1g Accessories: Owner’s Manual
