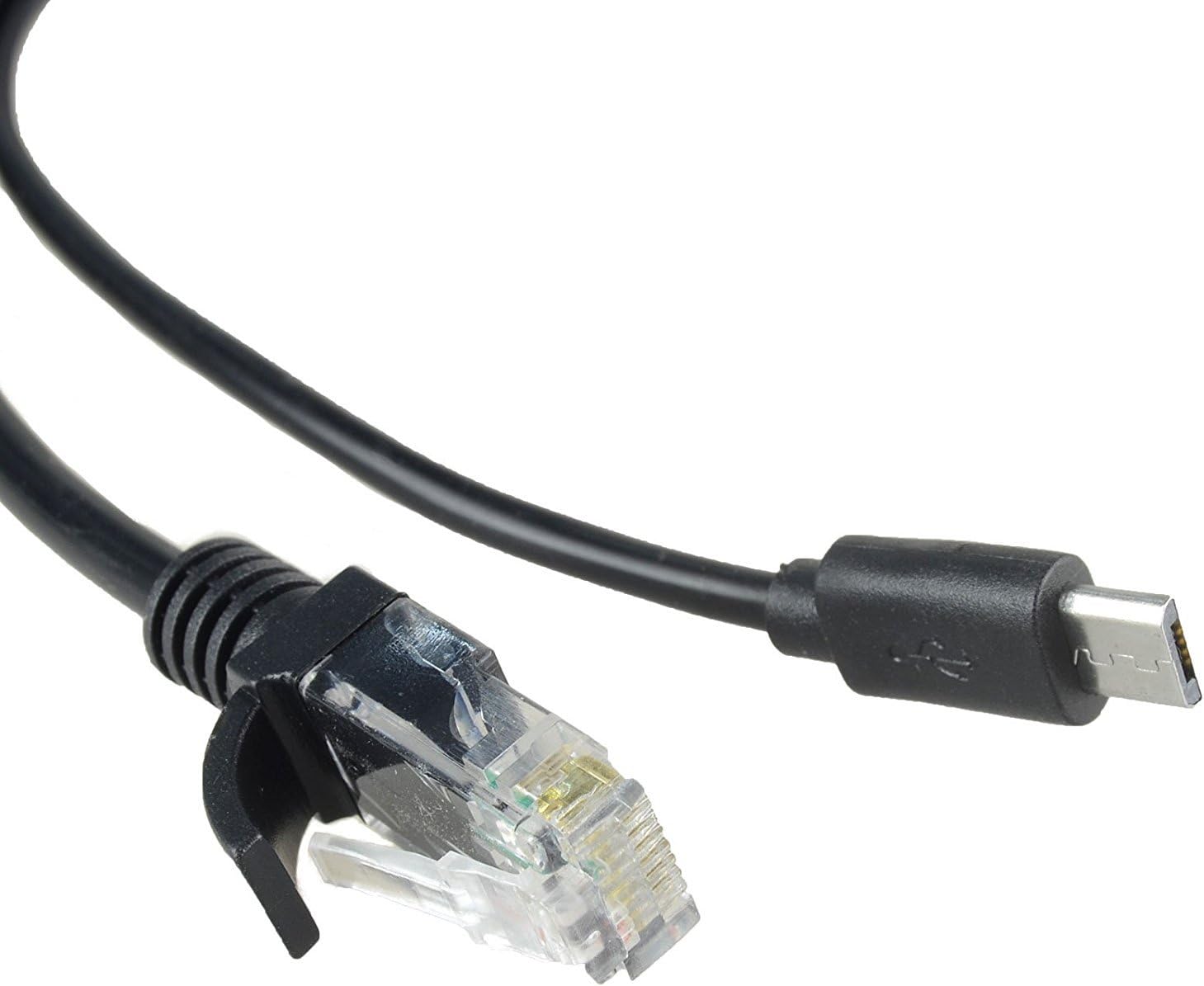

RJ45 female INPUT Port: Support the IEEE 802.3af the Power over Ethernet PoE Switch Support 48V Unsolicited Power Over Ethernet PoE Switch Support 48V Unsolicited Power Over Ethernet PoE Adapter Specification: Compliant with IEEE802.3af Isolation: 2.5kV Power Input: DC44~57V Power Output: DC5V 2.4A Data&Power INPUT Port: from RJ45 female (Compliant with IEEE802.3af/at PoE) Data Output Port: RJ45 Male Power Output Port: Micro USB Power Plug Data Transfer Rate: 10/100/1000 Mbps Devices will be detected before poe input Power Pin:support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-) Body size: 80 x 27x 22 mm DC cable length£º165mm RJ45 Modular Plug cable length£º155mm Weight : 55g Item Included: 10/100/1000Mbps 48V to 5V Active PoE Splitter(Micro USB Power Plug) x1
DSLRKIT Gigabit Ethernet Active PoE Splitter 5V Micro USB ASUS Tinker Development Board, Raspberry Pi B B+ 2 3
$32.99
- Make sure this fits by entering your model number.

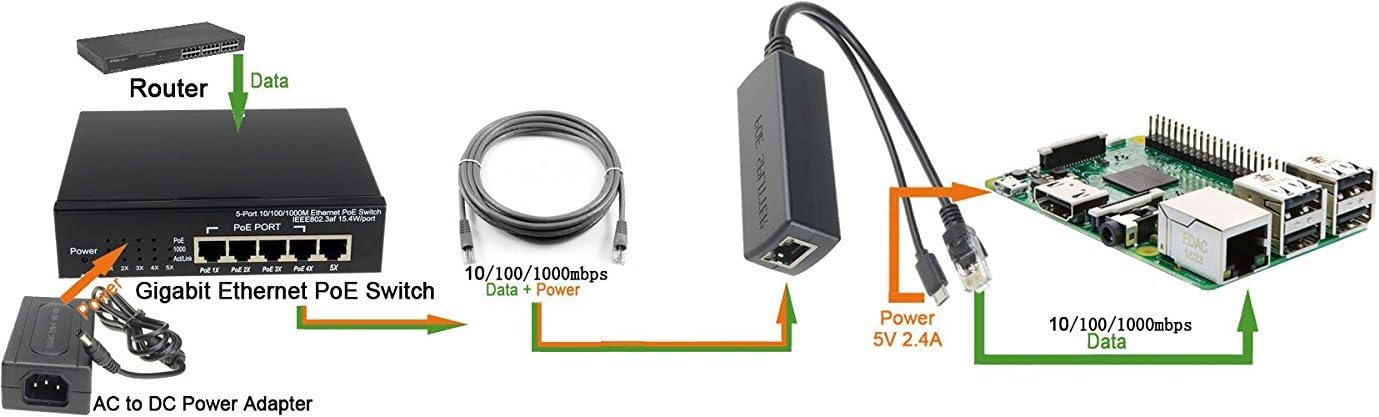

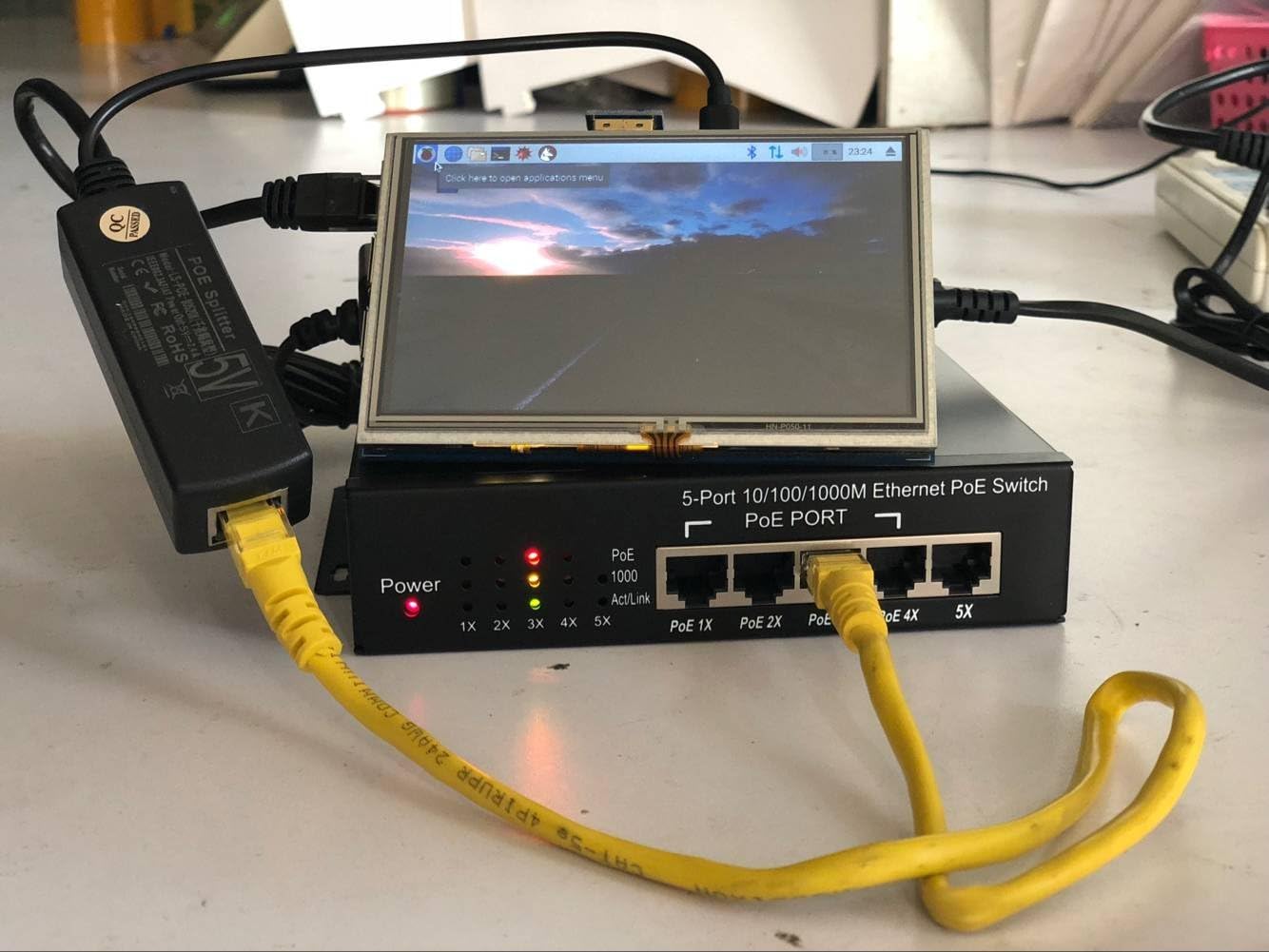

- This POE splitter must be connected with POE Switch or 48V POE Injector so that it can supply power to a connected Raspberry Pi or other Micro USB Port IN DC 5V cameras
- This POE Splitter is also suitable for household IP camera and mobile router with Micro USB Plug 5V power Port
- Power Output Port: Micro USB Power Plug
In stock
