DUBEUYEW Raspberry Pi 2040-Zero Mini Microcontroller Board Based on the Raspberry-Pi 2040 Dual-core ARM Cortex M0+ Processor for C/C++/Python (2pcs)
$38.99
- Pi 2040-Zero board compatible with raspberry pi, support C/C++, MicroPython, complete SDK, open source materials tutorial, easy to use, can be quickly embedded in applications.
- Adopts the microcontroller chip for Raspberry-Pi 2040. Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz.
- 264KB of SRAM, and 2MB of on-board Flash memory;USB-C connector, keeps it up to date, easier to use.
- Castellated module allows soldering direct to carrier boards. USB 1.1 with device and host support. Low-power sleep and dormant mode.
- Drag-and-drop programming using mass storage over USB. 29pcs multi-function GPIO pins (20 can be led by row pins, the rest can only be led by welding). 2 SPI, 2 I2C, 2 UART, 4 12-bit ADC, 16 controllable PWM channels.
In stock
or Raspberry Pi Microcontroller PICO Development Board Module Dual-core Cortex M0+ Processor 2MB Flash
Features:
1. Adopts themicrocontroller chip for Raspberry-Pi 2040 .
2. It is powered by a dual-core ARM Cortex M0+ processor and runs at up to 133MHz flexible clock.
3. Onboard 264KB of SRAM, and 2MB Flash memory.
4. The real stamp hole design can be welded directly into the user’s self-designed backboard
5. Type-C USB Connector, keeps easier to use.
6. USB1.1 host and device support.
7. Supports low power sleep and hibernation modes.
8. Can be identified by USB for mass storage drag-and-drop download program.
9. 29 GPI0 pins of RP2040 (20 can be led by row pins, the rest can only be led by welding) 2 SPIs, 2 12C, 2 UART, 4 12-bit ADC, 16 controllable PWM channels.
10. Accurate on-chip clock and timer.
11. Temperature sensor.
12. Accelerated floating-point libraries on-chip.
13. 8 programmable I/O (PIO) state machines for custom peripheral support. 14. Support C/C++，MicroPython.

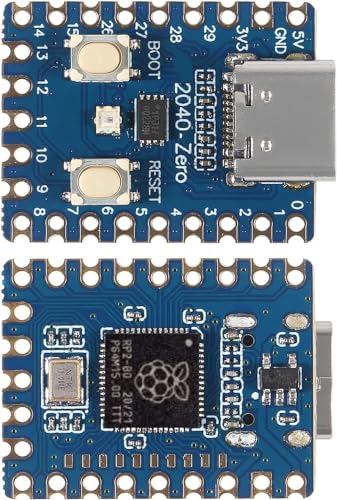

What’s On Board.
1.USB Type-C connector
2.W25Q16JVUXIQ:2MB NOR-Flash
3.BOOT button:press it when resetting to enter download mode
4.RESET button
5.WS2812:cool RGB LED
6.ME621:low dropout LDO, max current 800MA
7.RP2040:dual-core processor, up to 133MHz operating frequency
8.RP2040 pins:10x solder points, 9 of which are for GPIO
Package Content: 2pcs RP2040-Zero Board
