Additional information
| Weight | 0.12 kg |
|---|---|
| brand | Easyboost |
| dimensions | 13.6 x 4.8 x 2.4 cm; 120 Grams |

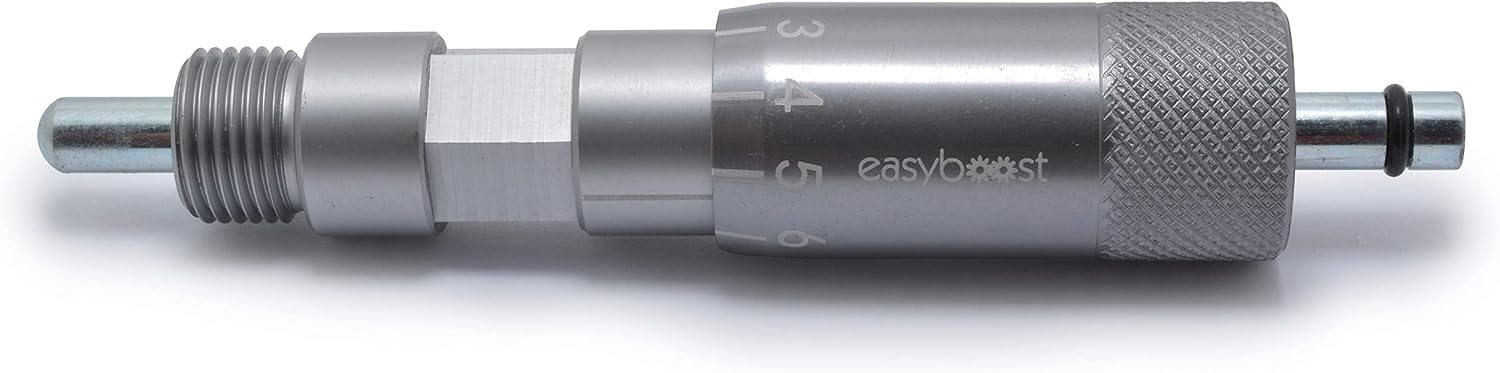

Easyboost 2-Stroke Ignition Timing Gauge Tool Micrometer TDC Top Dead Center for Scooter Motorcycle AM6 Derbi Aerox Bw’s Jog-R Vespa Trekker for PVL Stage6 MVT MHR Italkit Ignition Candle M14x1.25
$119.99
- How to easily set and adjust an internal or external rotor ignition? The Easyboost 2-stroke engine timing gauge tool answers this question in a simple way. You will find an explanatory tutorial below.
- With the Easyboost ignition timing gauge tool, you will be able to easily hold an internal rotor ignition on 50cc. You will be able to set absolutely any type of ignition.
- In order to facilitate the reading of the calibration, the gauge is graduated from 0 to 9. This means that one turn of the freelance head represents a 1mm calibration. 1 scale therefore represents 0.1mm. If, for example, you want to set its ignition to 2.25mm before the TDC (top dead center), you will have to screw in the head 2 turns + 2.5 graduations.

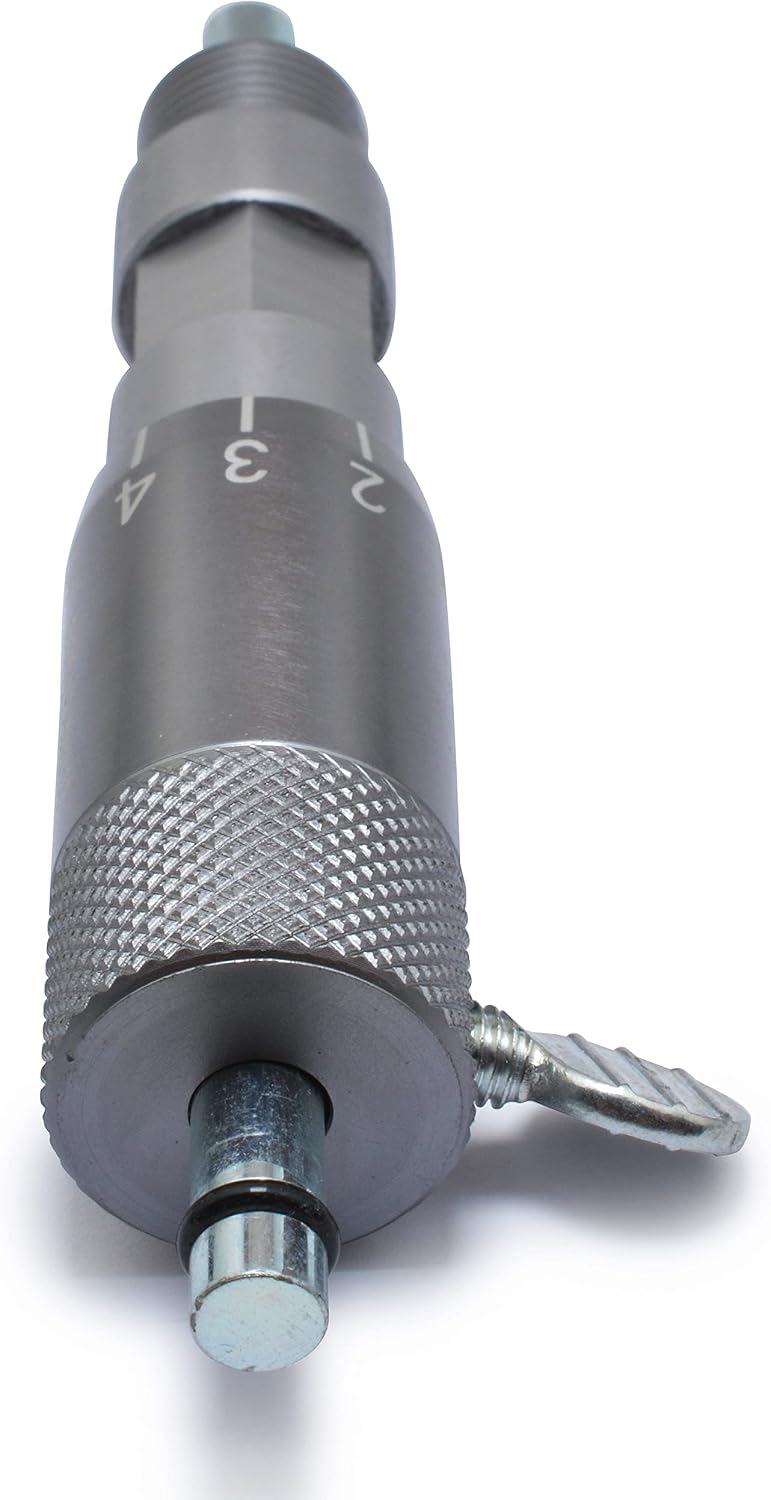

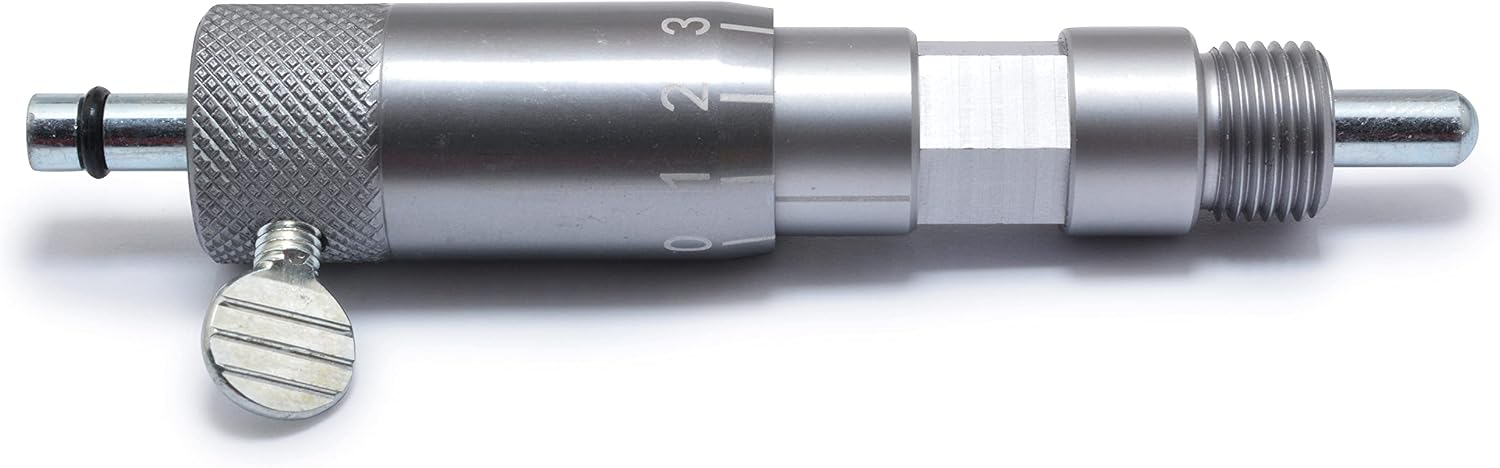

- The body of the Easyboost timing tool is made of aluminium. The rod is coated with a chromium-based treatment to protect it from corrosion. A stainless steel violin screw allows you to block the rise and fall of the rod. In addition, the delivery contains a BTR screw (hollow hexagon head) if tightening requires a higher force.
- The Easyboost ignition timing jauge tool is therefore the essential tool to have in your toolbox. Our specifications impose very tight manufacturing tolerances. This is to reduce the clearance between the body and the fixed part screwed into the spark plug shaft as much as possible. Thanks to this, we achieve high precision in the ignition timing.
In stock
