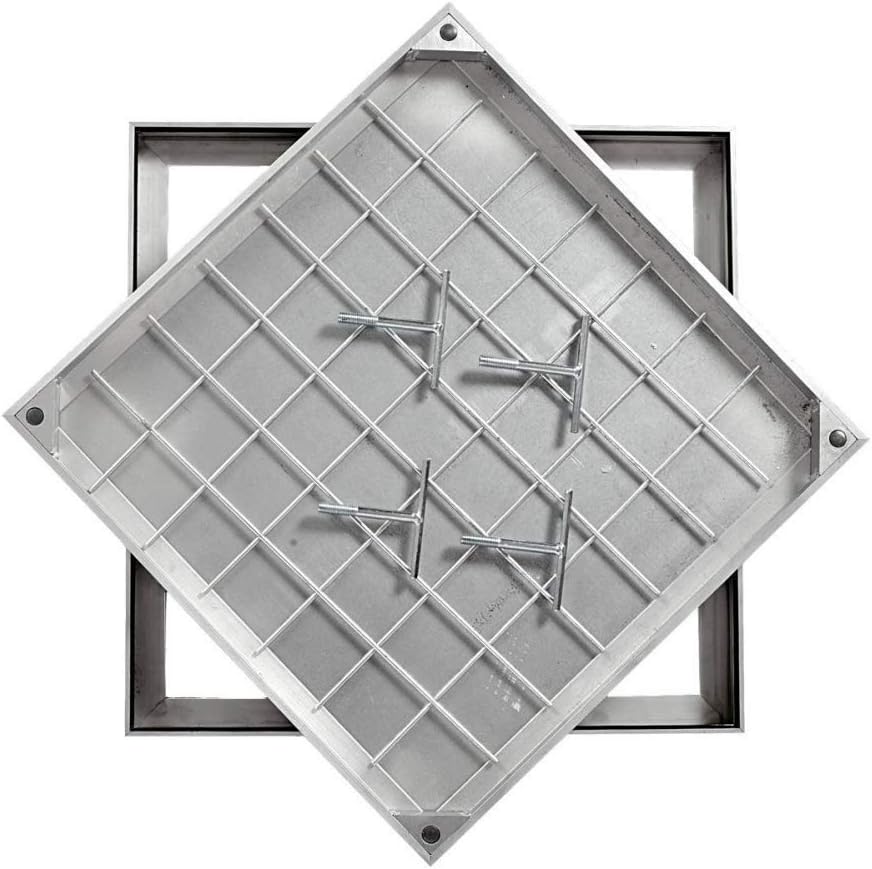

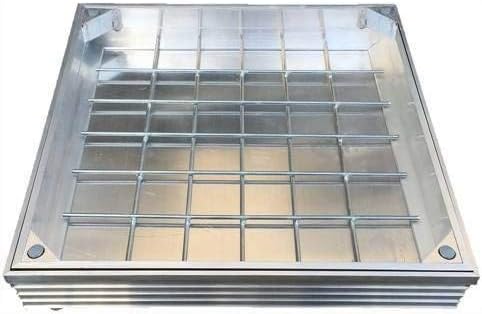

EcoGrid TSL-Pro-Line-60. 150 X 150 X 41mm Aluminium Triple Sealed Recessed Manhole Cover

TSL-Pro-Line Triple Sealed Aluminium Recessed Manhole Cover & FrameClear Opening: 150mm x 150mm x 41mmExternal Dimensions: 240mm x 240mm x 60mmOverall Depth: 60mmIn-tray Depth: 41mmTechnical Data: – Extruded aluminium frame & cover – Easy to open with two lifting keys provided – Application: exterior – The cover is gas, odour and waterproof – The cover is not screw tight (locked) – Featuring a high-grade EPDM seal with “T-rubber” seal on side of frame – Standard equipped recess cover with reinforcement mesh – Bottom plate made of a 3mm galvanised steel plate If you have difficulty clarifying what the clear opening size corresponds to, please refer to the additional image (above). The best way to decide which cover is most suitable for you is by measuring the hole in the ground that is being covered. The TSL-Pro-Line recessed manhole covers are triple sealed & locking, featuring a highly aesthetic extruded aluminium construction that’s pedestrian load bearing. The TSL-Pro-Line-60 cover has a height of 60mm overall making it simple to select the right recess. This cover range is an gas, odour and waterproof aluminium solution with the cover screwed on to the outer frame. Featuring three seals; two at the base and a “T-rubber” seal built-in to the side of the outer frame. The unique “T-rubber” seal allows for an additional odour and gas barrier, elasticity to avoid tension between the recessed cover and frame, and the prevention of dirt between the cover and frame.
