Features 2x 4mm High-end Heat Pipe Double Layers of Aluminum Heatsink PWM controlled Cooling Fan at 9000RPM Designed for M.2 SSD 2280 Form Factor Ready for est PCIe 4.0 Gen4 NVMe Quality Thermal Pads for Memory Chip Brand: ElecGear Model: EL-80X Material: Copper + Aluminum Color: Grey Working Voltage: DC12V Working Current: 60mA (Max 90mA) Fan Speed: 9000 RPM (Max) Fan Dimension: 30x30x7 mm Cable Connector: 4Pin 2510 Air Volume: 3.16 CFM Dimension: L80.5 x W25.5 x H45 mm Weight: 120 g Heat Pipe: 2xφ4 mm Cable Length: 450 mm (Packaging) 1x ElecGear EL-80X SSD Cooler 10x Thermal Pads for Memory Chips (Pre-divided Blue) 1x Thermal Pad for SSD Back Side (Single-sided Grey) 1x PH00 Screwdriver 1x Screw Set
ElecGear EL-80X M.2 2280 SSD Cooler, PWM Cooling Fan + Heat Pipe + Aluminum Heatsink for 80mm PCIe NVMe and SATA SSD Internal Solid State Drive, Thermal Pads included, Grey
$69.99
- [Heatsink with Heat Pipe] The extreme M.2 SSD cooler features 2x heat pipe connecting two layers of aluminum heatsink decks. The heat produced by 2280 SSD will be absorbed by the heat pipe and effectively conducted to both the upper and bottom heatsink. 18 to 28 degrees Celsius drop is expected. NVMe and SATA M.2 SSD are supported. Designed for PCIe 4.0 Gen4 gaming NVMe
- [PWM Cooling Fan] The built-in cooling fan connected to the fan control socket of the motherboard. PWM controlled, 30mm mini-sized at max rate 9KRPM. Embedded in the heatsink body, directly pushing cool air onto the heatpipes. Equipped with 4Pin 2510 connector fit most of PC. Please fine set the fan control strategy in the BIOS at a right balance between the cooling performance and noise level
- [Quality Thermal Pads] 2 packs of thermal pads deliver high performance at 4.8W/m-k. The pre-divided small pads are for the main control IC and memory chips, while the big single-sided pad is to apply to the middle frame facing against the bottom of the SSD. The delicate U-shaped metal frame works with both single-sided and double-sided SSD

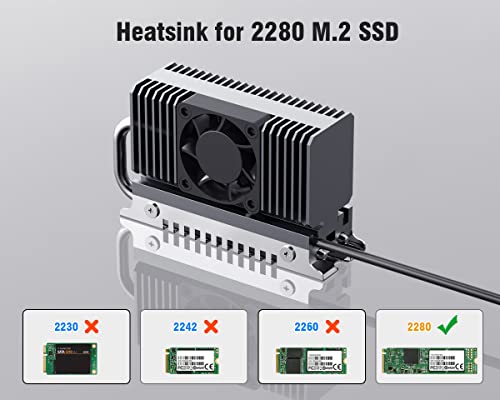

- [Compatibility Note] The cooler fits NVMe and SATA SSD in 80mm M.2 form factor alone. Not compatible with 2230,2242, 2260 memory. As this is an ultimate edition for high performance SSD, the cooler is quite big. Please make sure your desktop PC has enough space to house this kit: Minimum width is at least 25.5-mm / 1.01-inch, and 42-mm / 1.65-inch height above the SSD
- [Whats in Package] 1x ElecGear EL-80X M.2 SSD Cooler, 10*Small Thermal Pads for IC Chips (Pre-divided Blue), 1*Thermal Pad for SSD back side (Single-sided Grey), Screws and Screwdriver
In stock
