Specification:

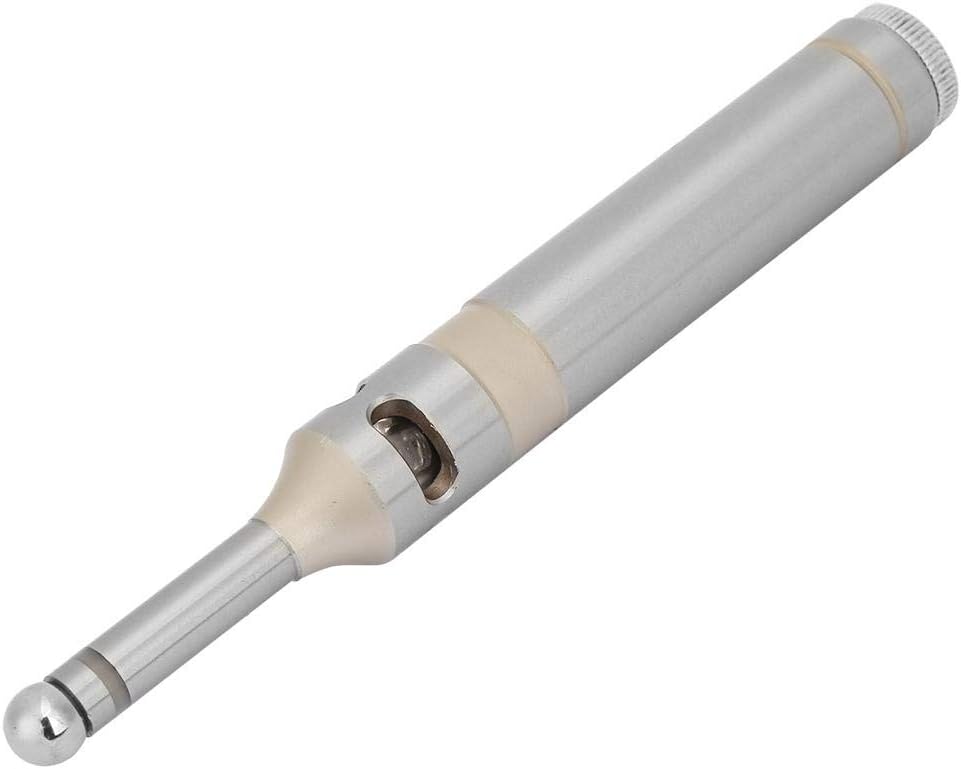

Name: edge finder
Process: uncoated
Large end: 20mm / 0.8in
Small end:10mm / 0.4in
Total length:160mm / 6.3in
Battery: 3* LR44(not included)

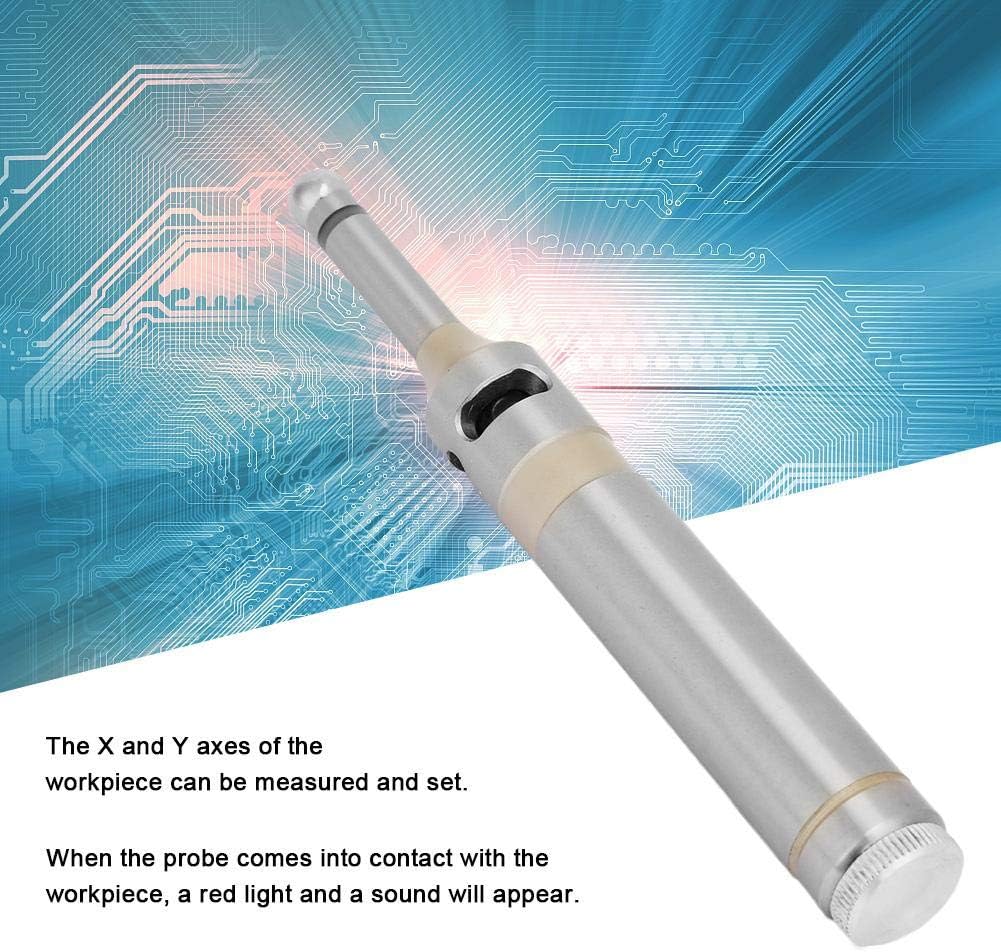

Usage: make the spindle stop and control the probe to approach the working face slowly. When the probe comes into contact with the working face, the LED indicator lights up and gives a prompt sound. At this time, the distance between the spindle center and the working plane is 5MM.
Package list:
1 x Edge Finder(battery not included)
1 x box
Note:
To ensure the measurement accuracy, do not directly touch the probe with your hands.
If not used for a long time, please remove the battery to extend the battery life.
If the battery power is insufficient, please replace the same type of battery immediately.
This edge finder is an electronic product. It should avoid short circuit or corrosion caused by cutting fluid entering inside.
Part Number:- Hyuduoc8fnu4zt7q
Product Dimensions:- 16 x 5 x 5 cm; 100 g
Manufacturer reference:- Hyuduoc8fnu4zt7q
Item Package Quantity:- 1
Batteries included?:- No
Batteries Required?:- No
Item Weight:- 100 g
Date First Available:- 29 May 2019
