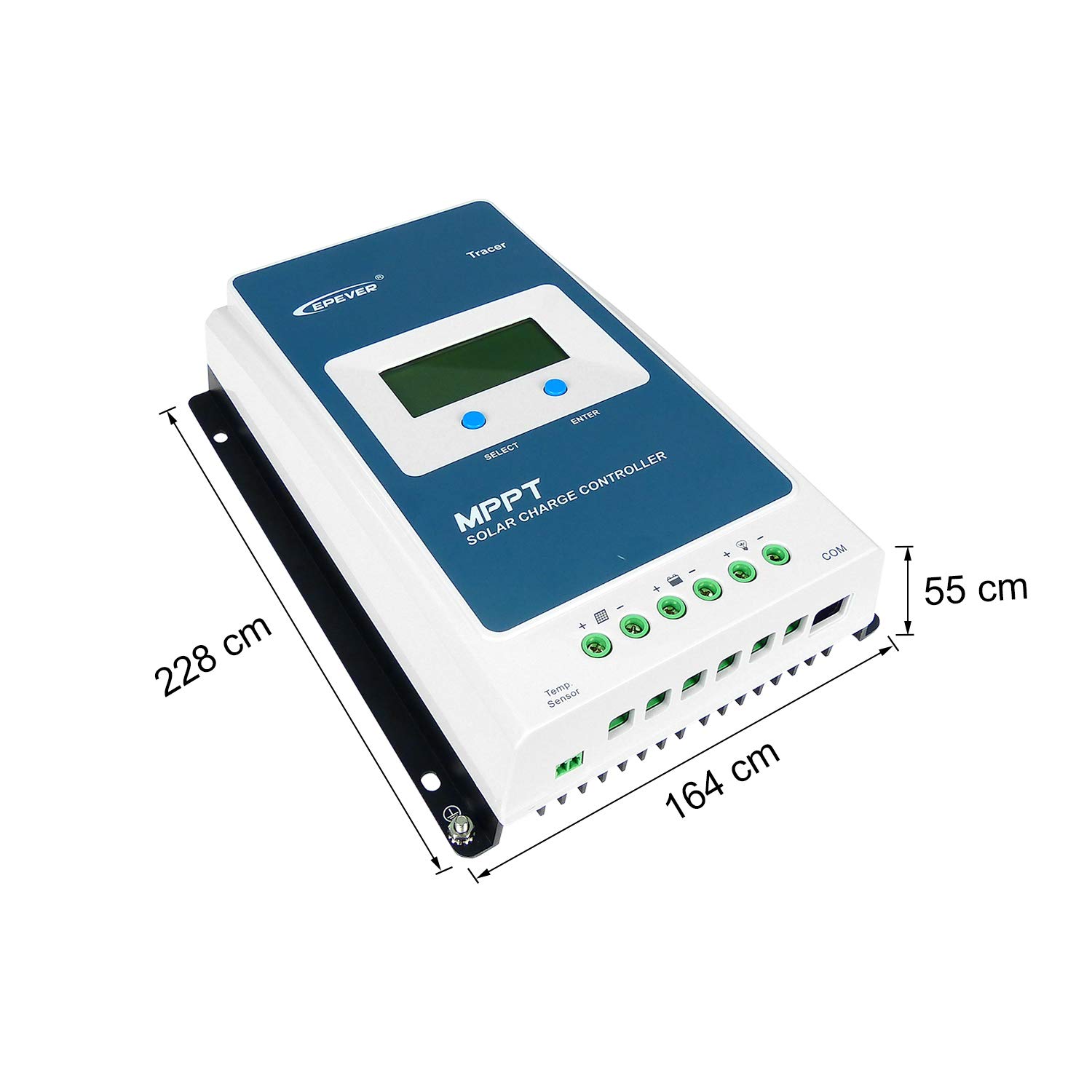

EPEVER MPPT Solar Charge Controller 30A 12/24V Auto Max PV 100V Solar Panel Regulator Remote Meter MT50+Remote Temperature Cable for Gel AGM Sealed Flooded Lithium Battery(30A+MT50+RTS)

Tracer3210AN Technical data : Rated charge current:30A System nominal voltage :12V/24V Auto work Battery voltage range: 8V~32V Max open circuit voltage:100V Max. PV input power :390W/12V , 780W/24V Terminal: 6AWG(16mm²) Recommended cable:8AWG(10mm²) Dimension: 228x164x55mm Net weight: 1.26kg Electronic protections : PV short circuit protection/ PV reverse polarity protection Battery over voltage protection/ Battery over discharge protection/ Battery reverse polarity protection Load short circuit protection/ Load overload protection/ Controller overheating protection MT-50 features As a new generation LCD unit, this MT50 can monitor real-time operational data and working status, browse and modify the charge and discharge control parameters, set device parameters and load control parameters, and restore factory default parameters. Compatible with: Tracer-BN Tracer-A , Tracer-AN, TRIRON-N, LS-B, LS-BP, VS-BN, eTracer, iTracer and other series solar charge controller ,not fit for others brand controller. Automatic identify the controller, and display relevant parameter data Large-screen informative LCD displays all the operating data and system working status Longer communication distance based on RS485 Diversified load control modes: Manual Control, Light ON/OFF, Light ON+ Timer, Time Control Battery type selection: Gel, sealed, flooded and User(programmable) Programmable parameters Energy statistics display function Attention: The flooded battery must be well ventilated to avoid explosion Please make sure that the positive and negative terminals of each component are wired correctly. Package List: 1 x Tracer 3210AN Solar Charge Controller 1 x MT50 Remote Meter 1 x Temp Sensor Cable RTS300R47K3.81A 2 x User Manual (English)
