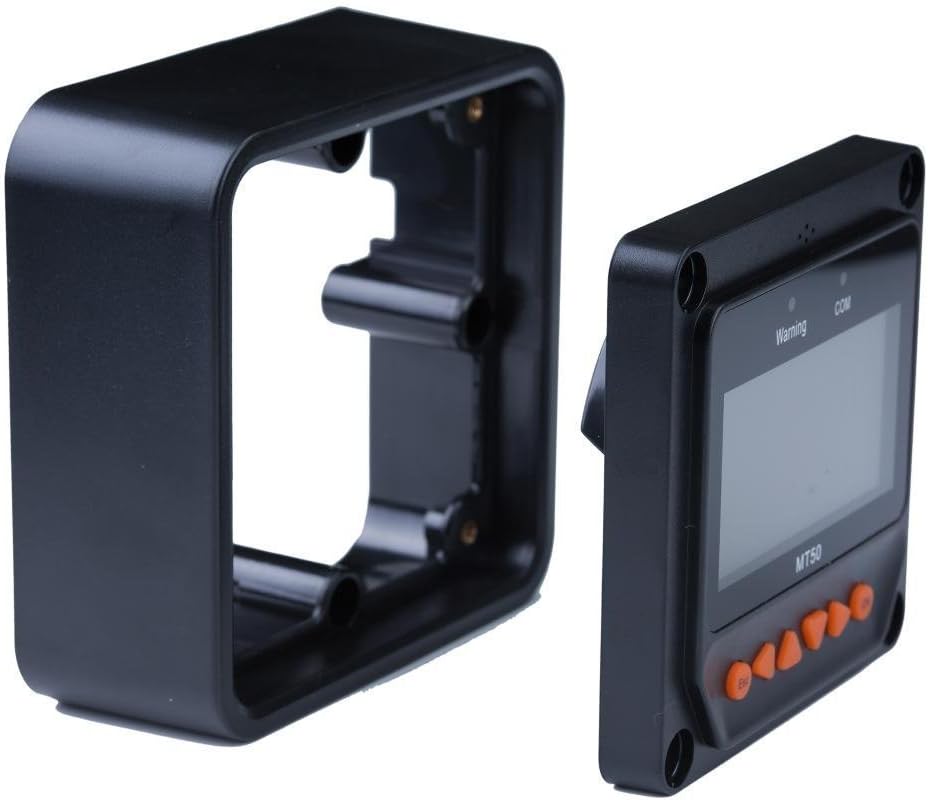

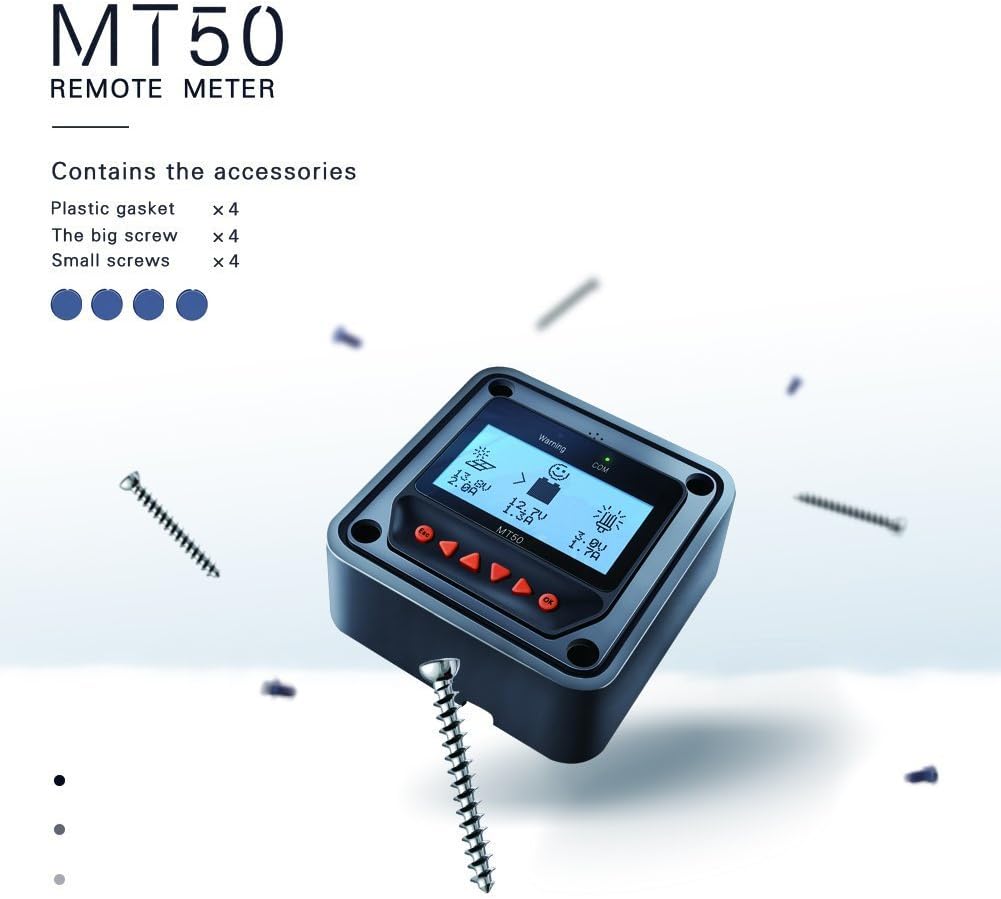

MT50 is an optional remote meter to monitor and program EPsolar controller. Compatible with:LS-B, LS-BP,VS-BN, Tracer-BN, Tracer-A, eTracer, iTracer: Voltage setting please in strict accordance with: 1. Over Voltage Disconnect Voltage > Charging Limit Voltage ≥ Equalize Charging Voltage ≥ Boost Charging Voltage ≥ Float Charging Voltage > Boost Reconnect Charging Voltage; 2. Over Voltage Disconnect Voltage > Over Voltage Reconnect Voltage; 3. Low Voltage Reconnect Voltage > Low Voltage Disconnect Voltage ≥ Discharging Limit Voltage; 4. Under Voltage Warning Reconnect Voltage > Under Voltage Warning Voltage ≥ Discharging Limit Voltage; 5. Boost Reconnect Charging Voltage > Low Voltage Disconnect Voltagtrical ParameterSelf-consumption: Backlight and acoustic alarm ON Backlight ON Backlight OFFMechanical ParameterFaceplate Dimensions: 98×98 mmFrame Dimensions: 114×114 mmConnector Type: RJ45Meter Cable: Standard 2m,Max 50 mMeter weight Simple package: 0.23 Kg Standard package:0.32 KgEnvironmental ParameterAmbient temperature: -20℃~+70℃Package Included: 1x MT50 LCD Display Remote Meter 1x Wall Mounting Board 1x 2M Cable 4x Mounting Screws
EPEVER MT50 LCD Display Remote Meter Compatible with MPPT Solar Controller such as Tracer-BN Tracer-AN LS-B LS-BP VS-BN eTracer iTracer
$93.99
- Automatic identify the controller, and display relevant parameter data,Simple and convenient operation.

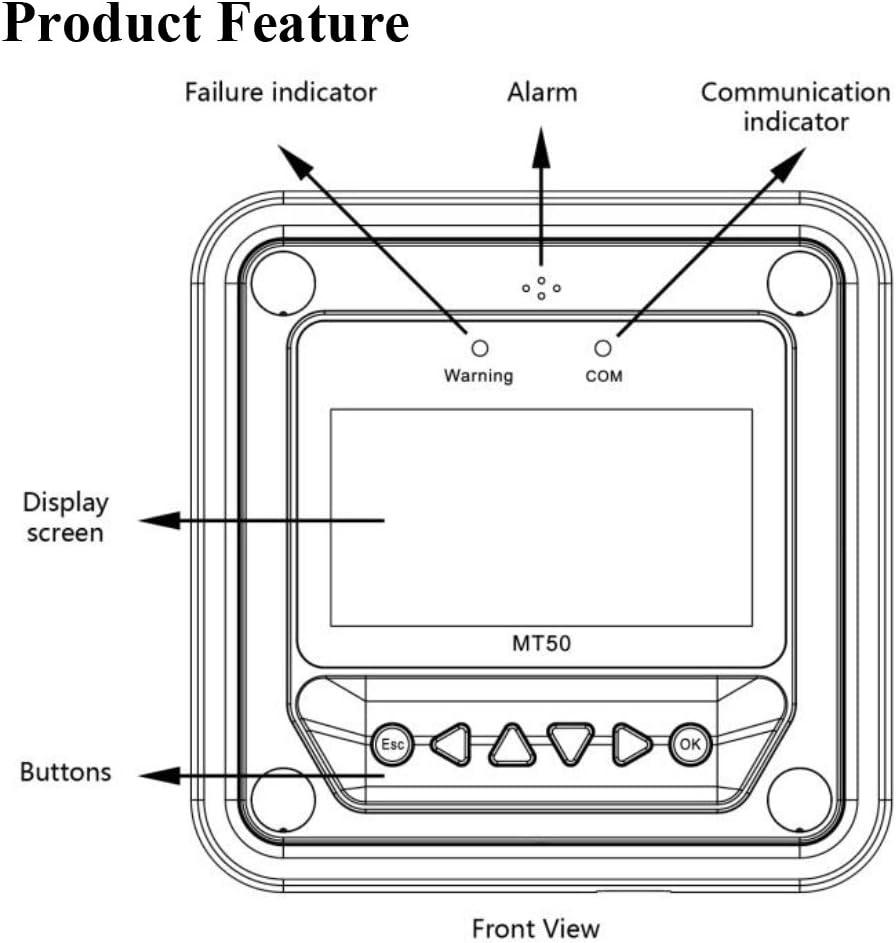

- Large-screen informative LCD displays all the operating data and system working status
- Real-time alarm of failure information,longer communication distance based on RS485
- Diversified load control modes : Manual Control, Light ON/OFF, Light ON+ Timer, Time Control.
- Type selection: Gel, sealed, flooded and User(programable),energy statistics display function.
In stock
