Features: 100% Brand new and high quality. Brand new. Perfect for small models and really tight places! Soldering SMDs is very difficult, but these pre-wired units take all the work out of it for the modeler. This kind of soldering is very extensive and difficult to perform, but is offering maximum flexibility when applying the LED and is ensuring place-saving usage. For utmost miniaturization, magnet (copper) wire with only 0.1 mm in diameter (cross sectional area 0.008 mm2) is used, wafer-thin and ultra-flexible, but still covered with an electrical-isolating clear lacquer coating. The wire length is about 200 mm. For easy recognizable connecting, the Cathode is about 10 mm shorter than the Anode. Specifications: Brand:evemodel. Size: It’s SMD Led 0603(1.60×0.80mm), The wire is about 20cm(L). Forward voltage:2.8V~3.4V, AC or DC Compatible. Forward current (typ/max): 15mA/20mA. Viewing angle:120°. Emitting color:WARM WHITE. Package included: 20 Pre-soldered with micro 0.1mm magnet (copper) wire WARM WHITE SMD Led 0603. 20 resistors (not pre-soldered) for 9~18V operation.

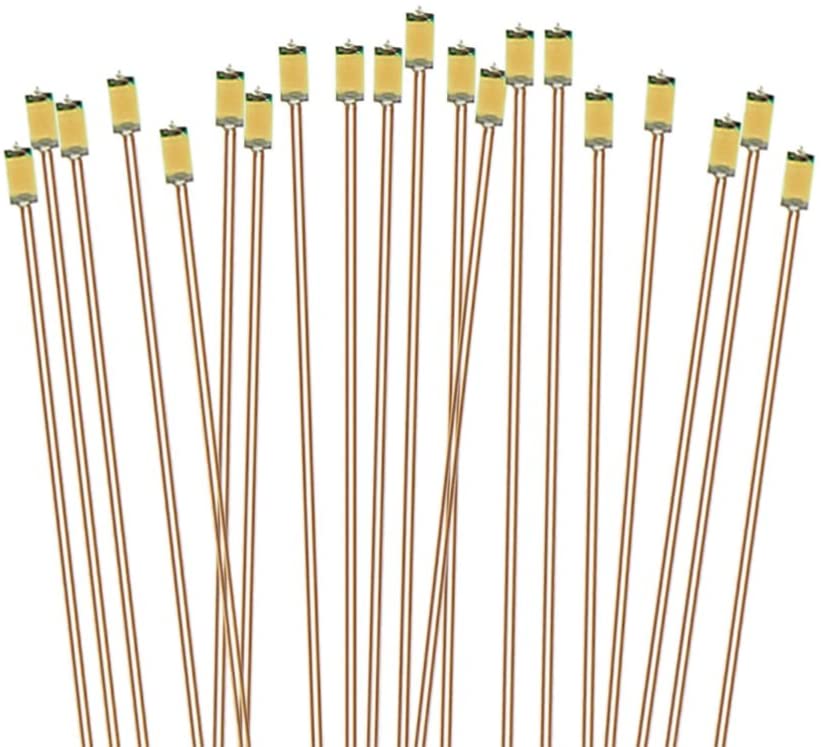

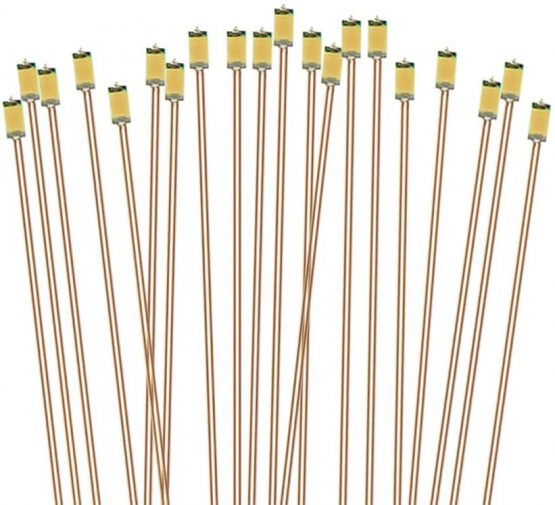

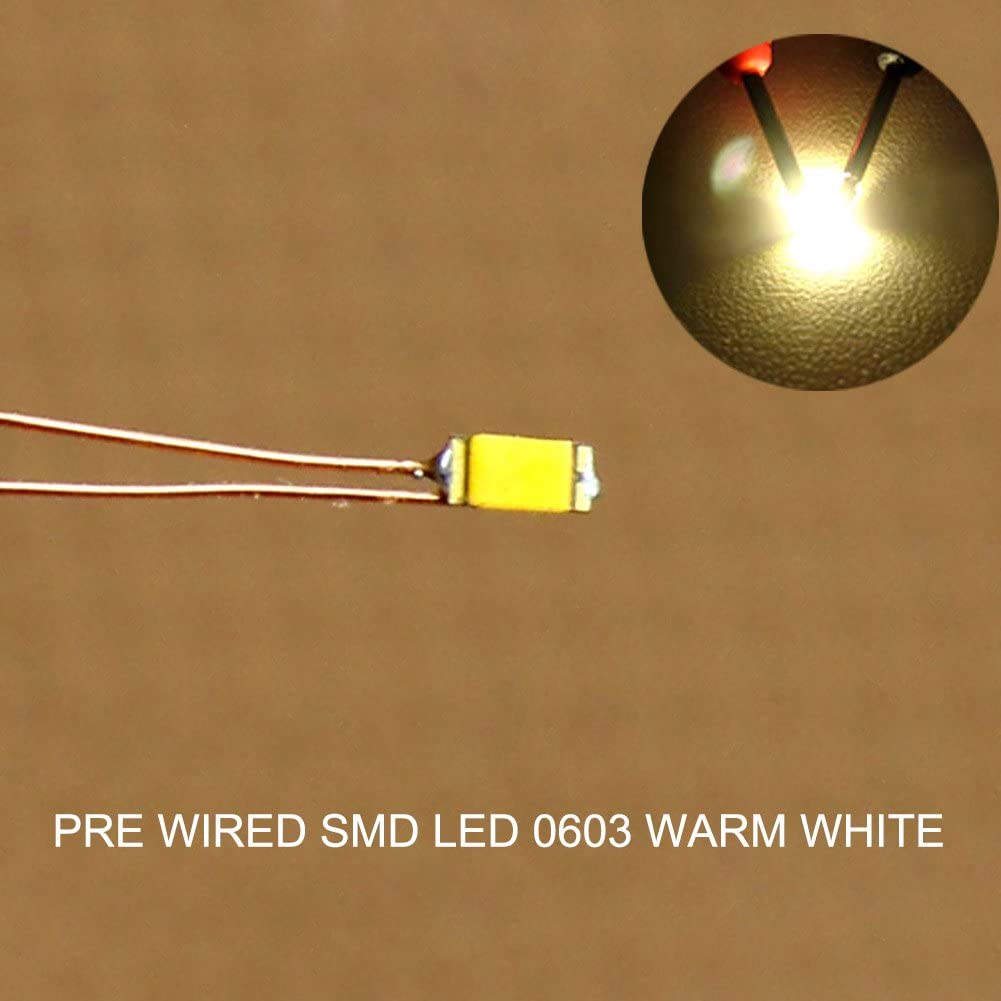

Evemodel C0603WM 20pcs Pre-soldered micro 0.1mm Copper Wired WARM WHITE SMD Led 0603 NEW
$32.99
- It is enamel insulated wire , you can burn it on fire or scrape the surface with a knife before connecting this lamp.
- Forward voltage:2.8V~3.4V, AC or DC Compatibleard current (typ/max): 15mA/20mA.
- Viewing angle:120°: It’s SMD Led 0603(1.60×0.80mm), The wire is about 20cm(L).
- Emitting color:WARM WHITE.
- Attention: There is a coating of the paint. You can burn it with the fire or scrape with the knife off the surface.
In stock
Additional information
| Weight | 0.02 kg |
|---|---|
| brand | Evemodel |
| dimensions | 13.8 x 8.6 x 0.1 cm |
