Features: Easy installation & no driver required No additional power required Support boot function Specifications: Power Supply Type: PCIE power supply OS: Supports any OS, like Windows, WinCE, Mac & Linux etc. Slot: M NGFF interface, B NGFF interface Size of Supported M.2 Card: 22*30mm, 22*42mm, 22*60mm, 22*80mm Motherboard Size: 13.5 * 5.5(narrowest point)cm / 5.31 * 2.17inch Long Baffle Plate Size: 12 * 1.8cm / 4.72 * 0.71inch Short Baffle Plate Size: 8 * 1.8cm / 3.15 * 0.71inch Package Weight: 104g Package included: 1 X 2 Port NGFF M.2 B + M Key to PCI-E 4X Adapter Card 2 X Screw 1 X Sata Cable 2 X Baffle Plate

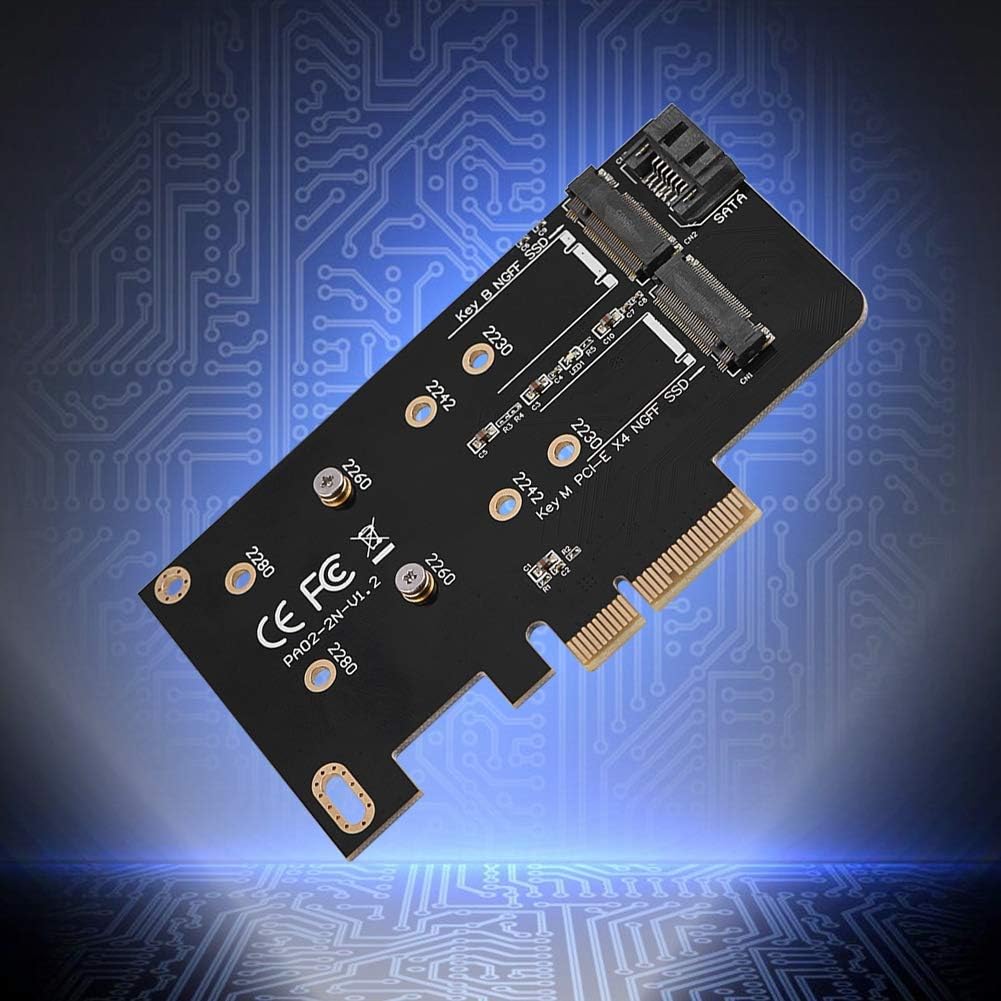

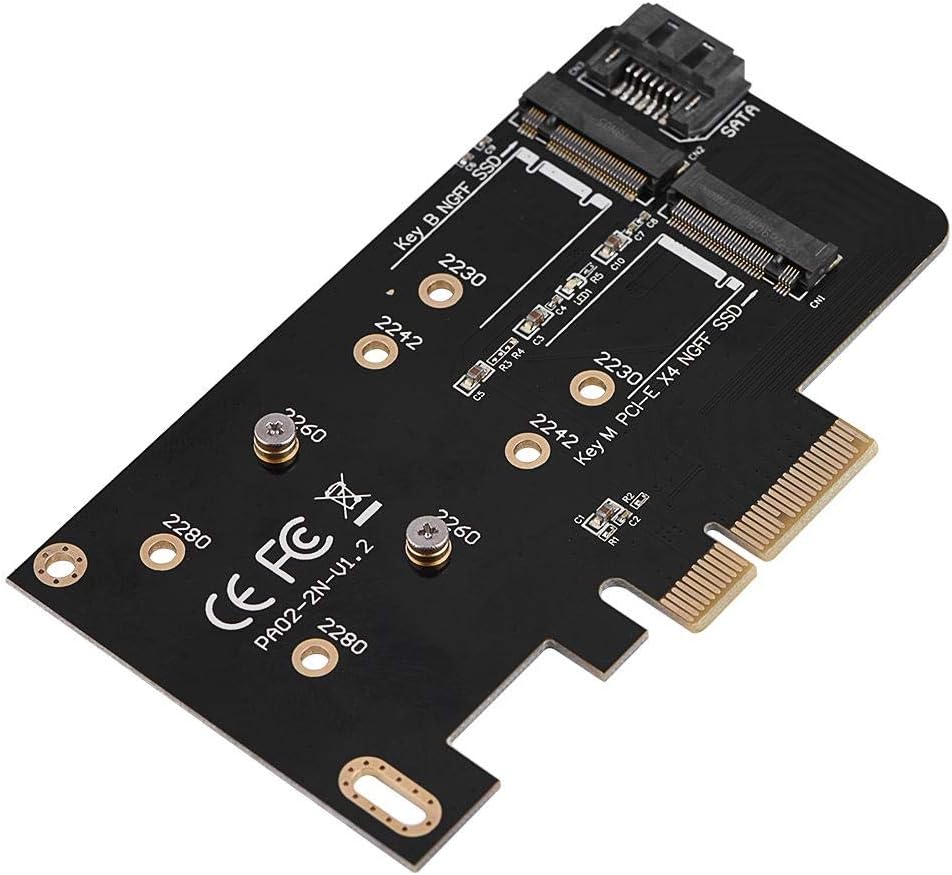

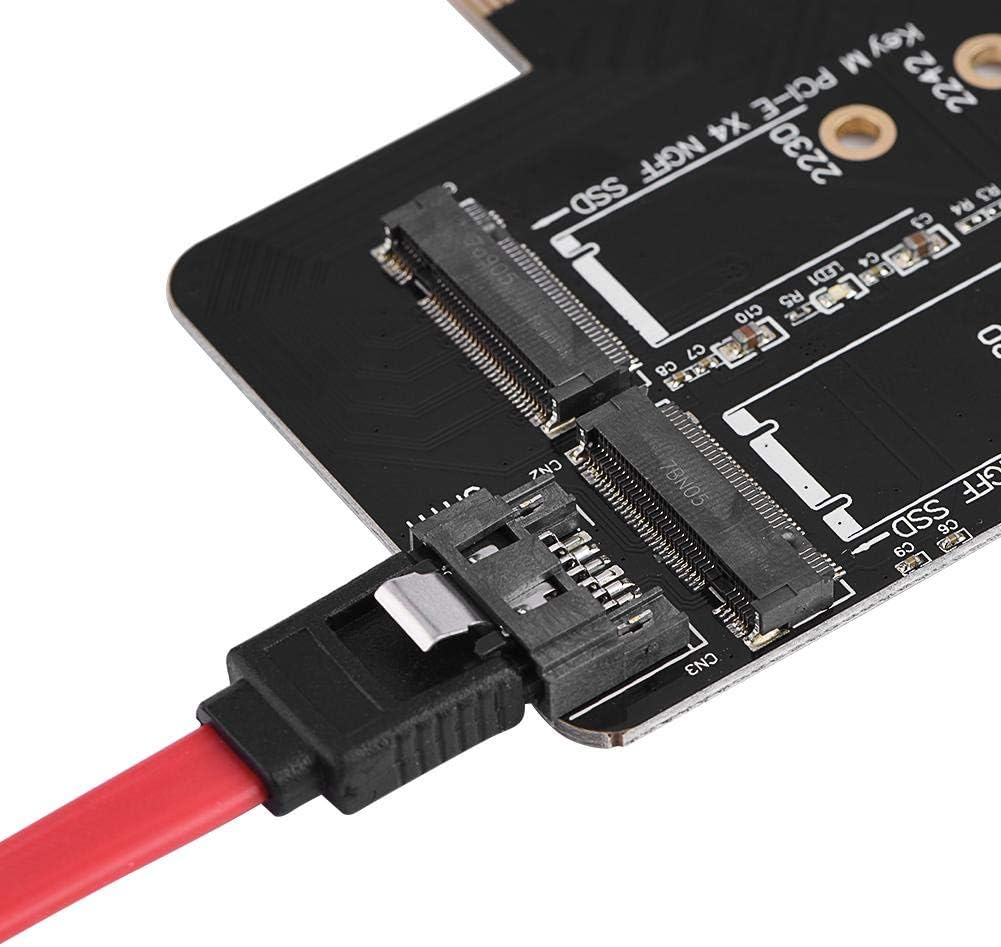

fasient 2-Port M.2 PCI-E Adapter, M2 SATA (B key) + NVME SSD (M key) Support 2230, 2242, 2260 & 2280 to PCI-e 4X 3.0 Expansion Card with Low Profile Bracket SATA Cable
$29.99
- Make sure this fits by entering your model number.
- Connects one B key & one M key NGFF SSD at the same time to PCI-E 4X motherboard
- Compliant with PCI Express M.2 specification 1.0 Compliant with SATA 3.0 specification for B key
- Compliant with PCI-E 4X 3.0 specification for M key Supports data transfer up to 6.0Gb/s
- Supports SATA-based B key and PCI-E 4X-based M key NGFF SSD Supports 2230, 2242, 2260 & 2280 size NGFF SSD
- One NGFF B Key and one NGFF M key sockets available 8 screw holes 2230/2242/2260/2280 available to fix NGFF SSD cards
In stock
