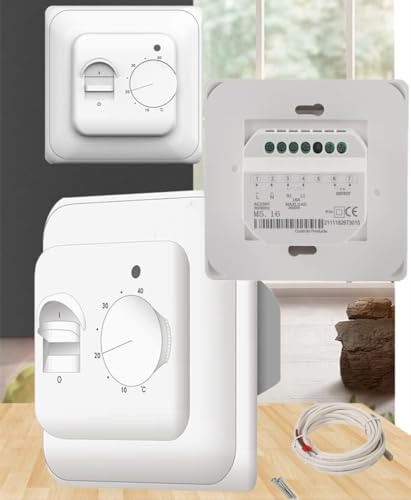

heating thermostat is designed for electronic floor heating and other electrical heating elements. The thermostat gets the room temperature through its floor sensor, and the heating contact will close when the room temperature rises above the set point, and vice versa.
Specifications:
Voltage: 230V AC 50/60Hz
Max. Load: 16A 3600W
Power Consumption: 5VA
Temperature Control Range: 5℃~40℃
Temperature Limit Range: 25~55 ℃ Power Save Mode Temperature: 5℃
Temperature Deviation: +-0.5K
Ambient Temperature: -5~50℃
Degree Of Protection Provided By Enclosure: IP20
Outer Sensor: Length of cable 2.9m / 9.5ft
Size: Approx. 8.5 * 8.5 * 4.4cm / 3.3 * 3.3 * 1.7in
Certification: CE
Material: PVC
Weight: Approx. 202g
Package Includes:
1 x Heating thermostat
1 x 2.9m sensor cable
2 x Mounting screws
1 x English user manual
Note:
1. Please allow 1-2mm error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
