Interchangeable/Compatible with: All automobiles and devices equipped with a 12 Volt DC power source. Relay technical specification Relay load: 40A/12VDC Contact Resistance:≤ 100MΩ Contact Material: Ag Alloy Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min) Life Expectancy Mechanical: 10,000,000 Operations (at 300 Operations/min) Operate Time: ≤ 10ms Release Time: ≤10ms Insulation Resistance: 100MΩ/( 500VDC) Temperature Range: -40°C ~+85°C Humidity Range:35%-70%

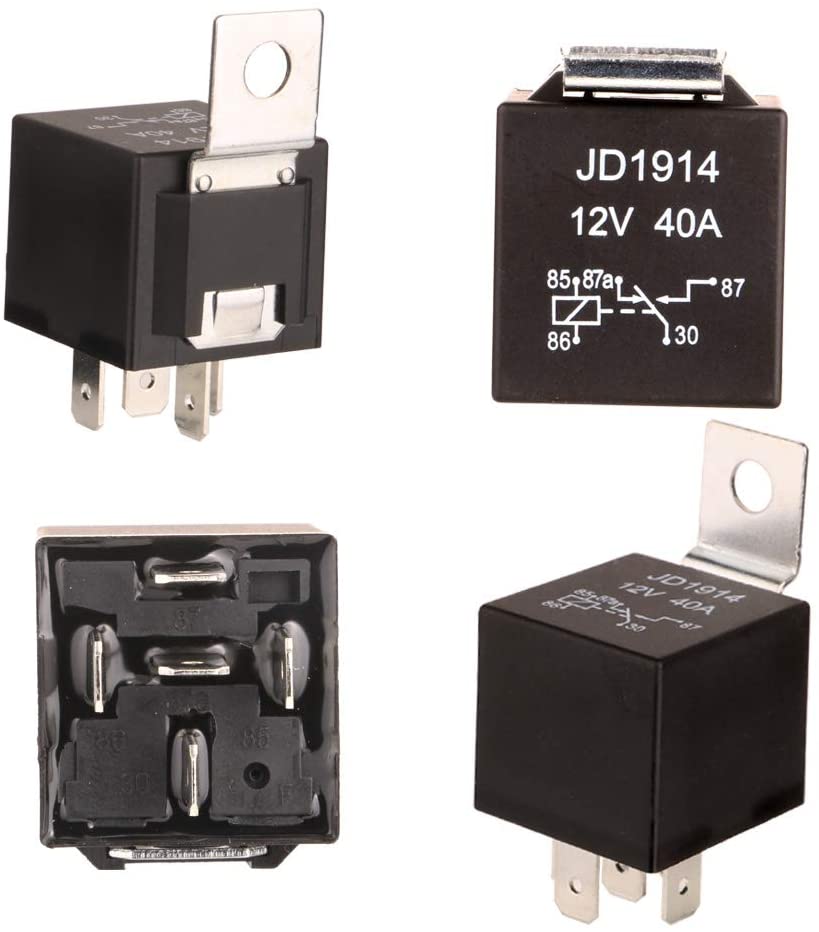

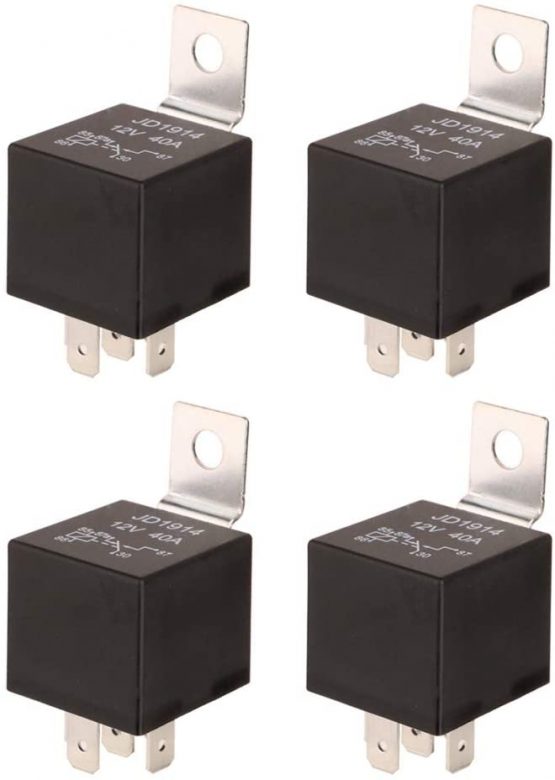

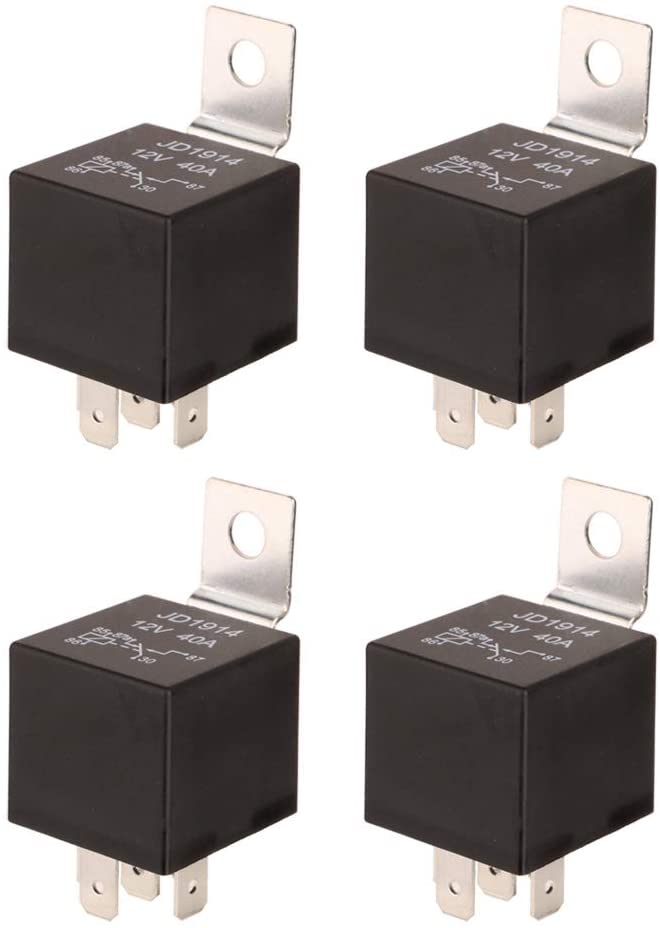

Gebildet Standard Auto Relay 12V 40A SPDT 5pin-Car Heavy Duty Switches & Starters, used for Auto Motor Automobile, with Black Waterproof Transparent Case. Pack of 4
$46.99
- Brand new heavy duty SPDT(Single Pole Double Throw) relays
- Rated operational voltage: 12V/ Switching Capability:40A
- Minimum operating voltage 8V, corresponding minimum operating current is 100mA; Standard operating voltage 12V, corresponding standard operating current is 150mA.
- Small size/Low power consumption/High contact voltage/ High sensitivity
- Contact Material: Ag Alloy / Contact Resistance: ≤ 100MΩ. Life Expectancy Electrical: 100,000 Operations, Life Expectancy Mechanical: 10,000,000 Operations
In stock
Additional information
| Weight | 0.141 kg |
|---|---|
| brand | Gebildet |
| dimensions | 8 x 7.5 x 3 cm |
