Main Functions:Manual / automatic start, stop5-digit LED digital tube shows unit operating status and parametersLED indicator and fault code display alarm indicationTwo sets of programmable output relaysApplication for various kinds of Engine by self-settingt panel IP54 protection ratingControl Function:Automatic control of the carStart delay controlLocal manual start/stopRemote automatic start/stopPreheat controlAutomatic cold controlParking/idle controlDamper controlParameters Display:Engine speedGenerator frequencyGenerator AC voltageLoad currentEngine battery voltageCurrent running timeCumulative running timeEngine oil pressureEngine water temperatureSpecification:Condition: 100% Brand NewItem Type: Generator ControllerDC Supply: DC 8-36VPower Consumption: MAX 3WMeasuring Frequency: 10-70HzInput voltage range: AC 20-80VCurrent measurement range: 0-2000Ad sensor Frequency: 30-9999HzOutput:Fuel Relay Output: MAX 5AStart Relay Output: MAX 5AConfigurable output1: MAX 2.5AConfigurable output2: MAX 2.5AExcitation output: MAX 1ASize: Approx. 78mm * 78mm * 55mm / 3.1 * 3.1 * 2.2inPanel cut-out: Approx. 67mm * 67mm / 2.6 * 2.6inProtection Level: Front panel splash-proof after installationation Temperature :-30℃-70℃Storage Condition:-40℃- 85℃Panel: Chinese/English OptionalPackage List:1 * Controller2 * Fixing screws1 * Interface wiring

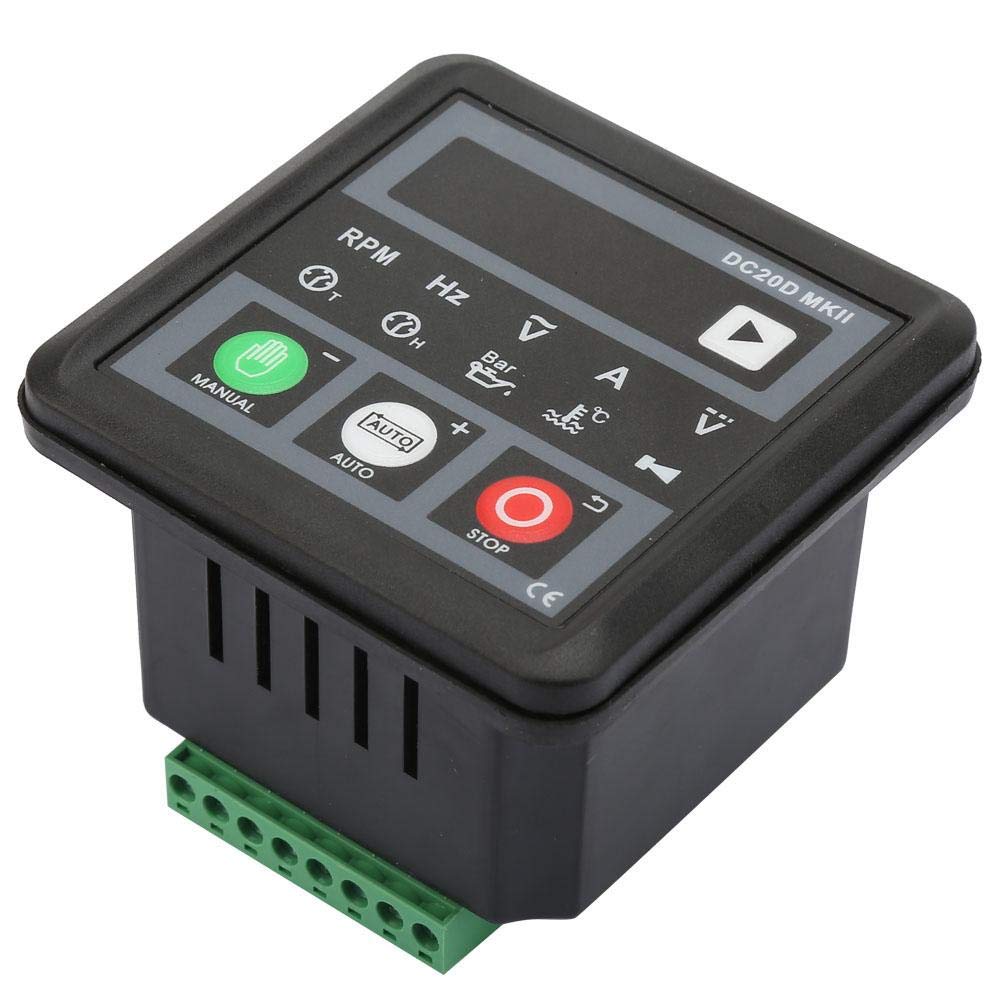

Generator Controller,DC20D MKII Electronic Generator Controller Module,Control Panel for Diesel Engine or Generator, Auto Start/Stop, Protection and Alarm indication
$175.99
- DC20D is one module used for Diesel Engine or Generator.
- It is with the functions of Auto Start/Stop, Protection and Alarm indication. DC Power and Running situation is indicated on the front panel.
- The status of the engine and generator can be checked conveniently.
- Over Frequency, Low Frequency, Over Voltage, Under Voltage, Low Oil Pressure, High Temperature, Low Water Level, Low Oil Level, Charge Failure, Over-time Stop, Emergency Stop Alarm System as well as Low Battery Voltage can be indicated in time.
- The output contact adopts relay, which can withstand large output current, and can set system parameters according to the button, so as to meet the application of different occasions.
In stock
