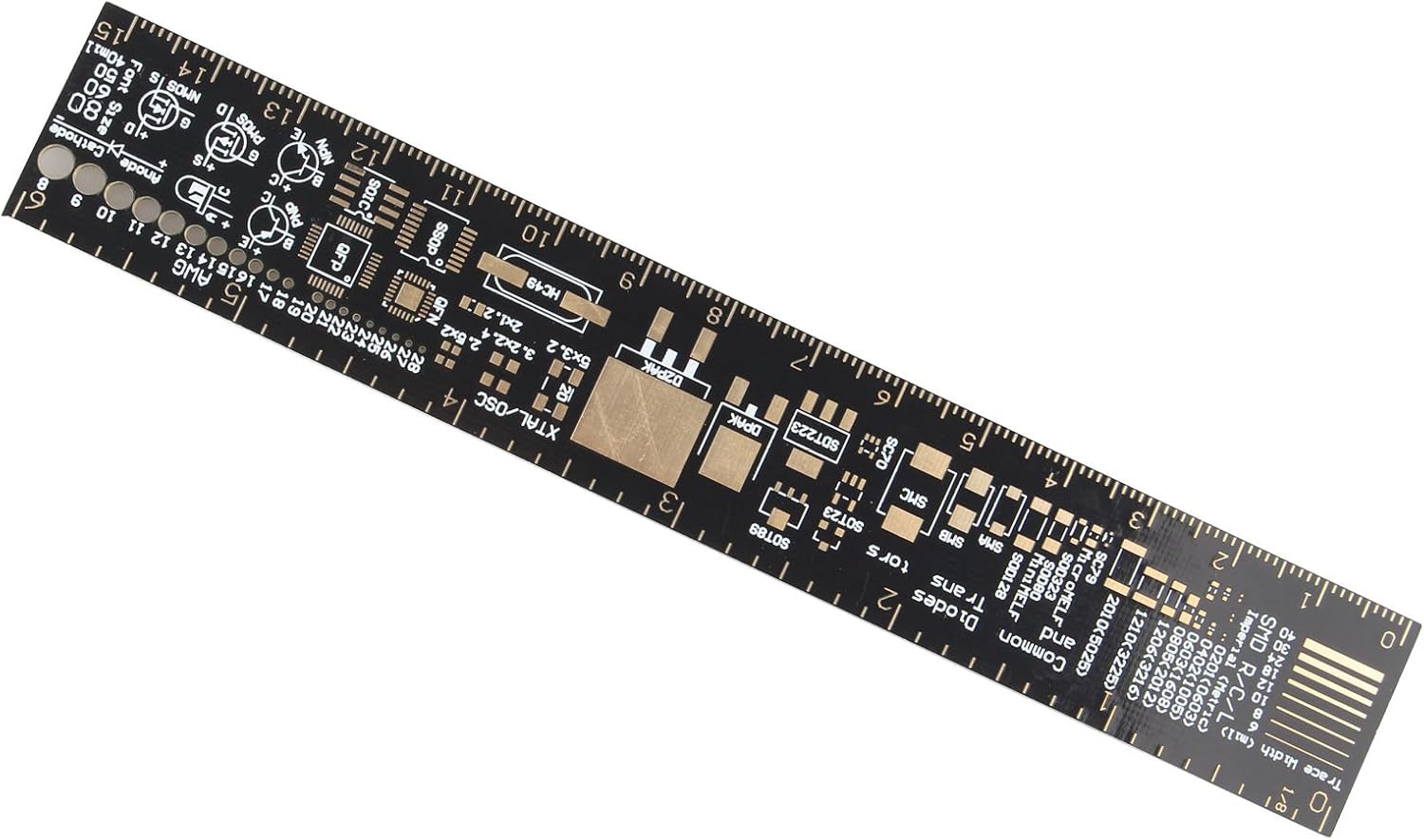

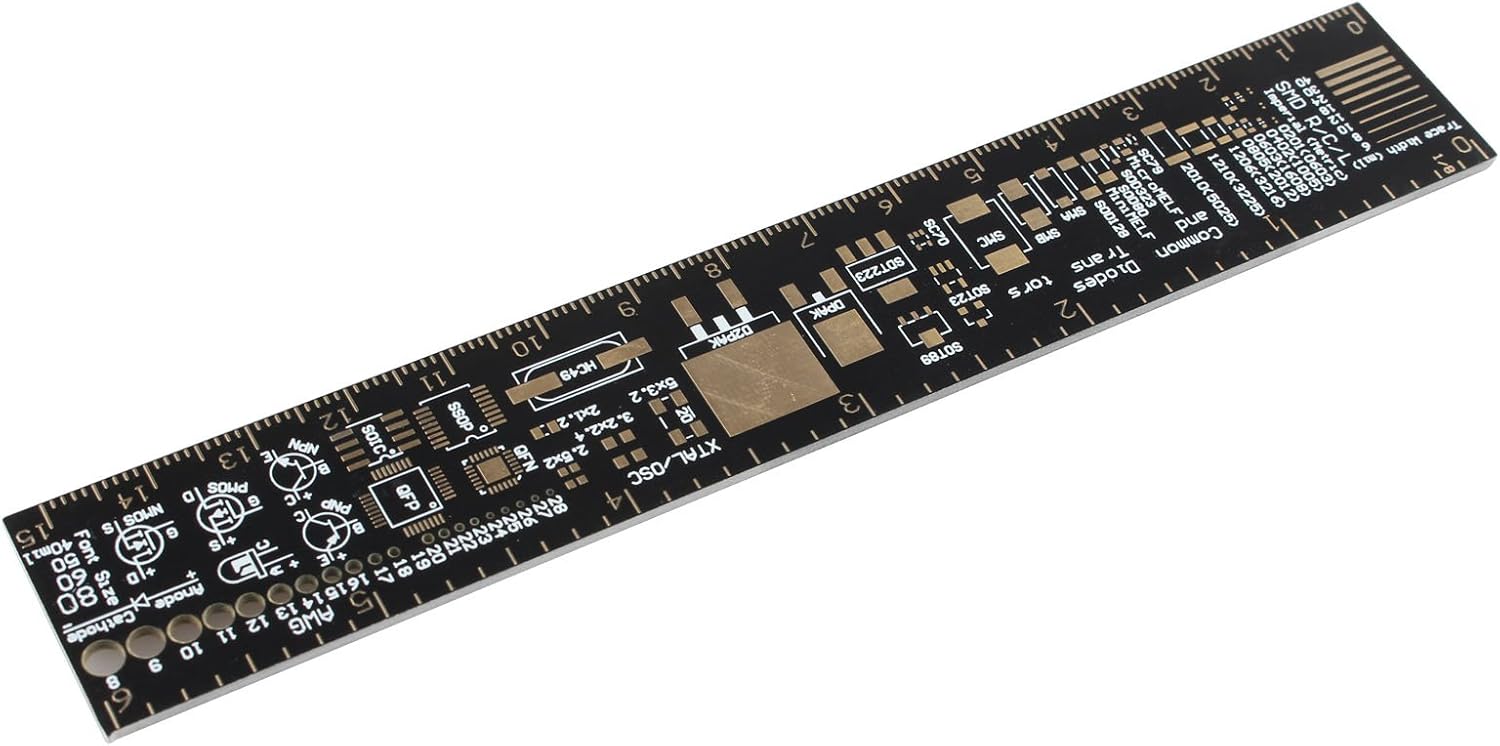

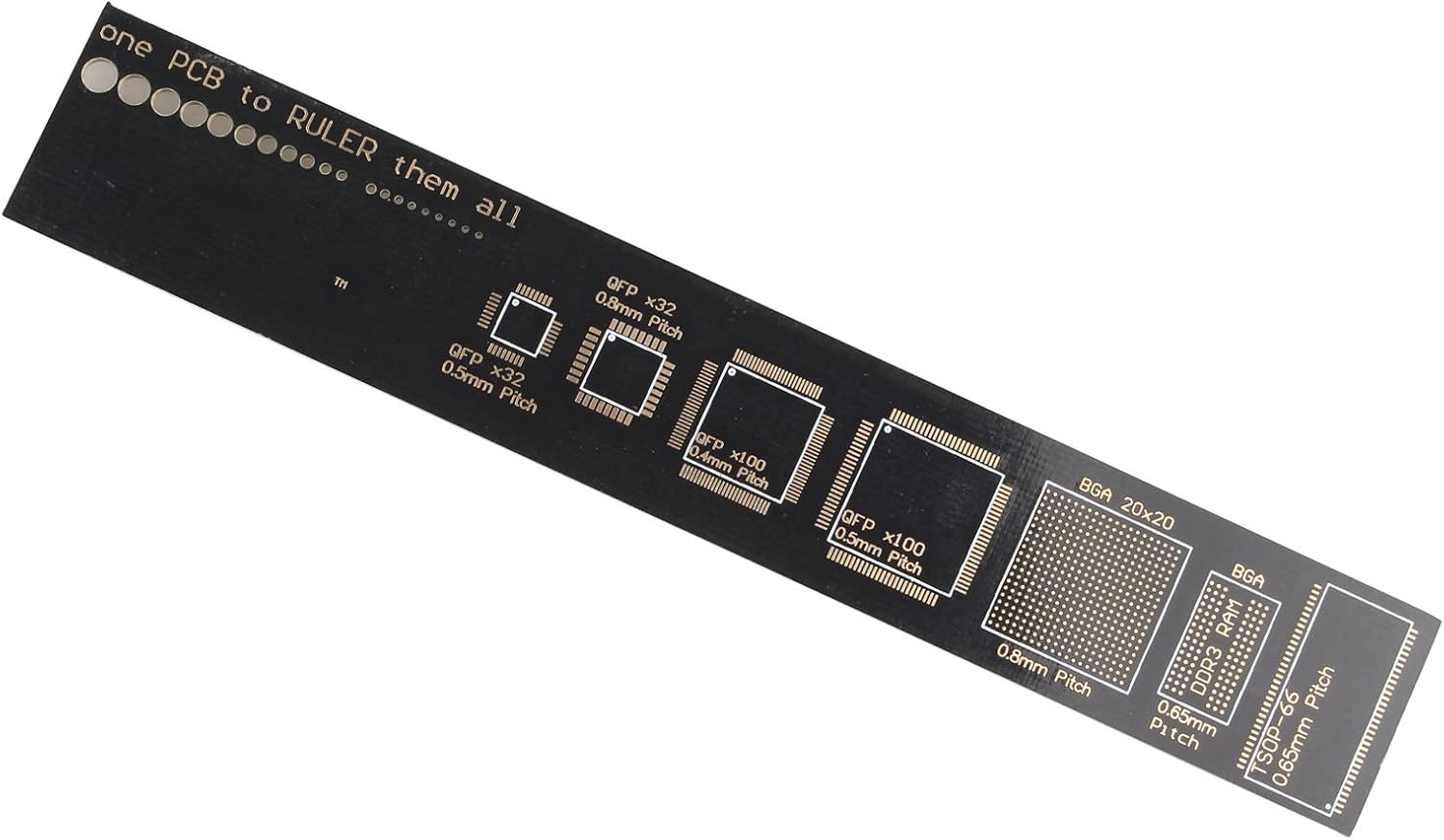

Features: Electronic enthusiasts in the design process in urgent need of a necessary functions measurement tool. Multifunctional PCB ruler, in addition to measuring the basic functions of millimeter and inch sizes. It also integrates relevant information for PCB design such as devices, IC pin spacing tables. Resistor and capacitor chip package, the commonly used diameter reference drill, line width size reference. We printed this information on FR-4 gold-plated PCBs, high hardness, wear resistanceifications: Front side: Measuring length: 15cm / 6″ AWG 28-8 wire diagram Commonly used resistance and capacitance patch package: 0201,0402,0603,0805,1206,1812,3216,3528,6032,7343. Commonly used IC package: SOT23, SOT223, SOT89, SMA/SMB/SMC, HC49, DPAK, D2PAK, SSOP16, QFN24, SOIC8, QFP32Backside package: QFP x32 (0.5mm / 0.8mm pitch), QFP x 100(0.4mm / 0.5mm pitch) BAG 20×20 0.8mm pitch, BGA (DDR3 RAM) 0.65mm pitch TSOP-66, 0.65mm pitchPacking List: 1*PCB Reference Ruler
HALJIA 15cm 6″ Multifunctional PCB Ruler EDA Electronic Reference Units Measuring Tool Compatible with Electronic Engineers/Geeks/Makers/Arduino Fans
$19.99
- Electronic enthusiasts in the design process in urgent need of a necessary functions measurement tool.
- Multifunctional PCB ruler, in addition to measuring the basic functions of millimeter and inch sizes.
- It also integrates relevant information for PCB design such as devices, IC pin spacing tables.
- Resistor and capacitor chip package, the commonly used diameter reference drill, line width size reference.
- We printed this information on FR-4 gold-plated PCBs, high hardness, wear resistance.
In stock
Additional information
| Weight | 0.02 kg |
|---|---|
| brand | HALJIA |
| dimensions | 18 x 6.5 x 0.2 cm; 20 Grams |
