The internal 1000 ohm half bridge strain gauge, the measuring range is 50kg weighing sensor, half bridge structure. Size: 34mm x 34mm This sensor is a group of half bridge strain gauge, using the method can have the following three: 1, using a sensor with the external resistance to form a full bridge measurement, the range of a sensor range: 50kg. External resistance requirements are higher. 2, the use of two sensors to form a full bridge measurement, measuring the range of two sensors and: 50kgx2=100kg 3, the use of four sensors to form a full bridge measurement, measuring range of four sensors and the range: 50kgx4=200kg Packing List: 4 x 50KG Weighing Sensor

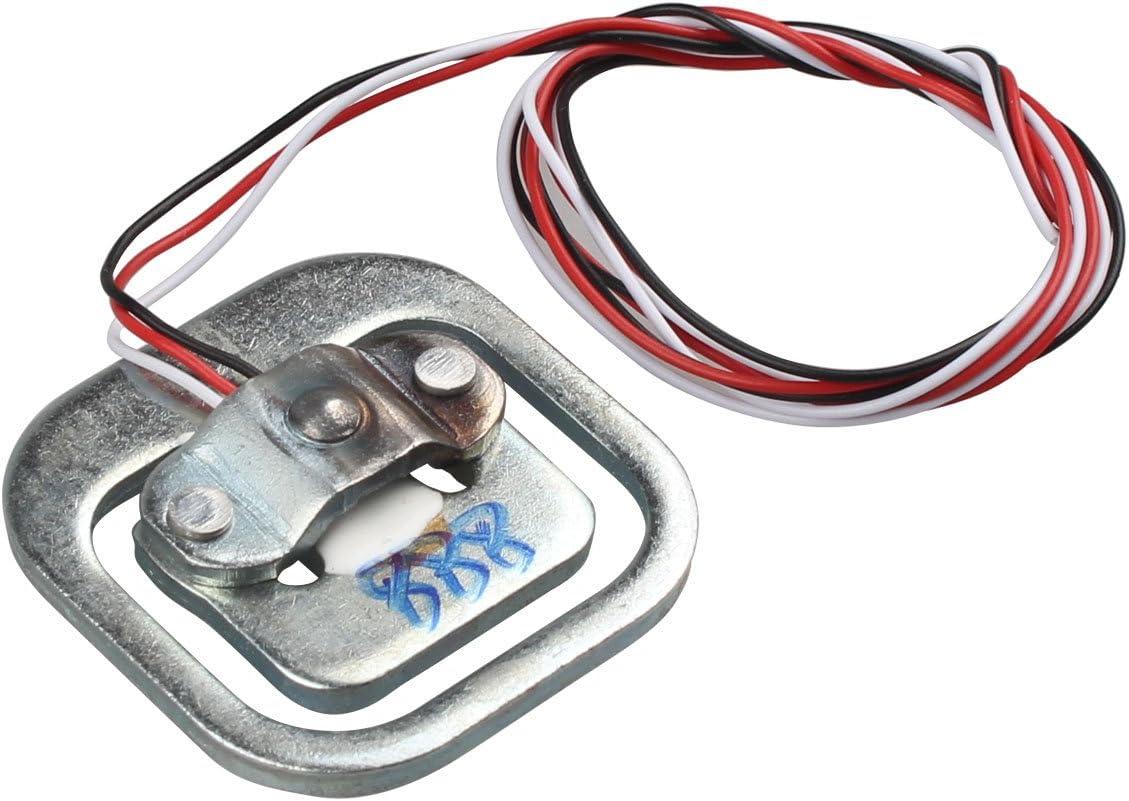

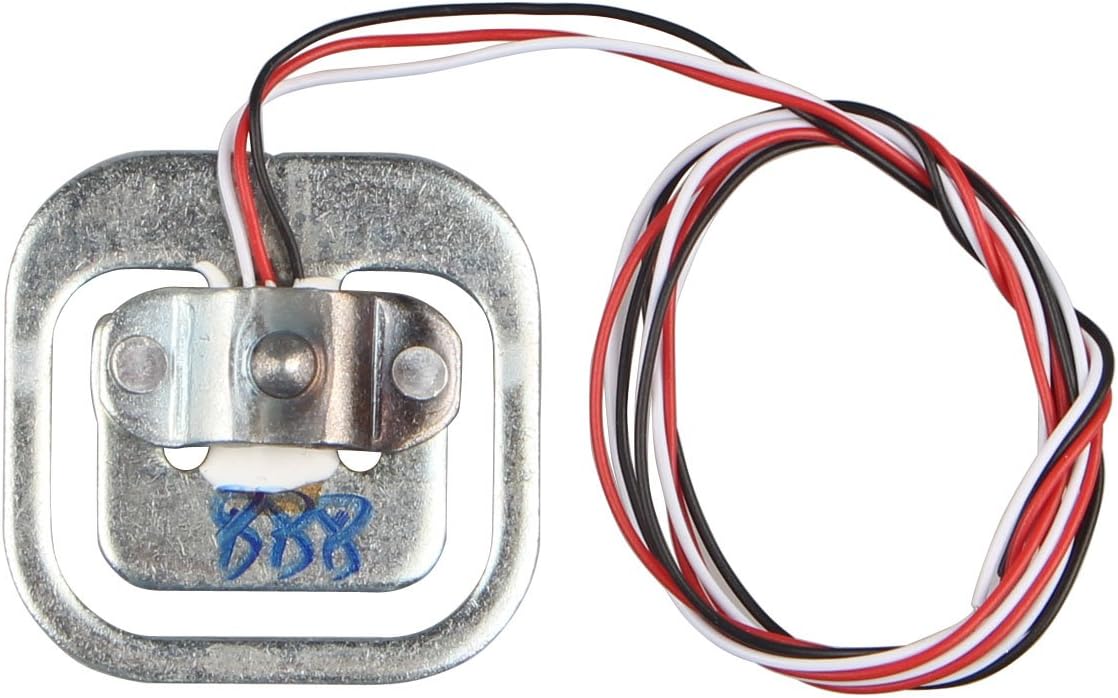

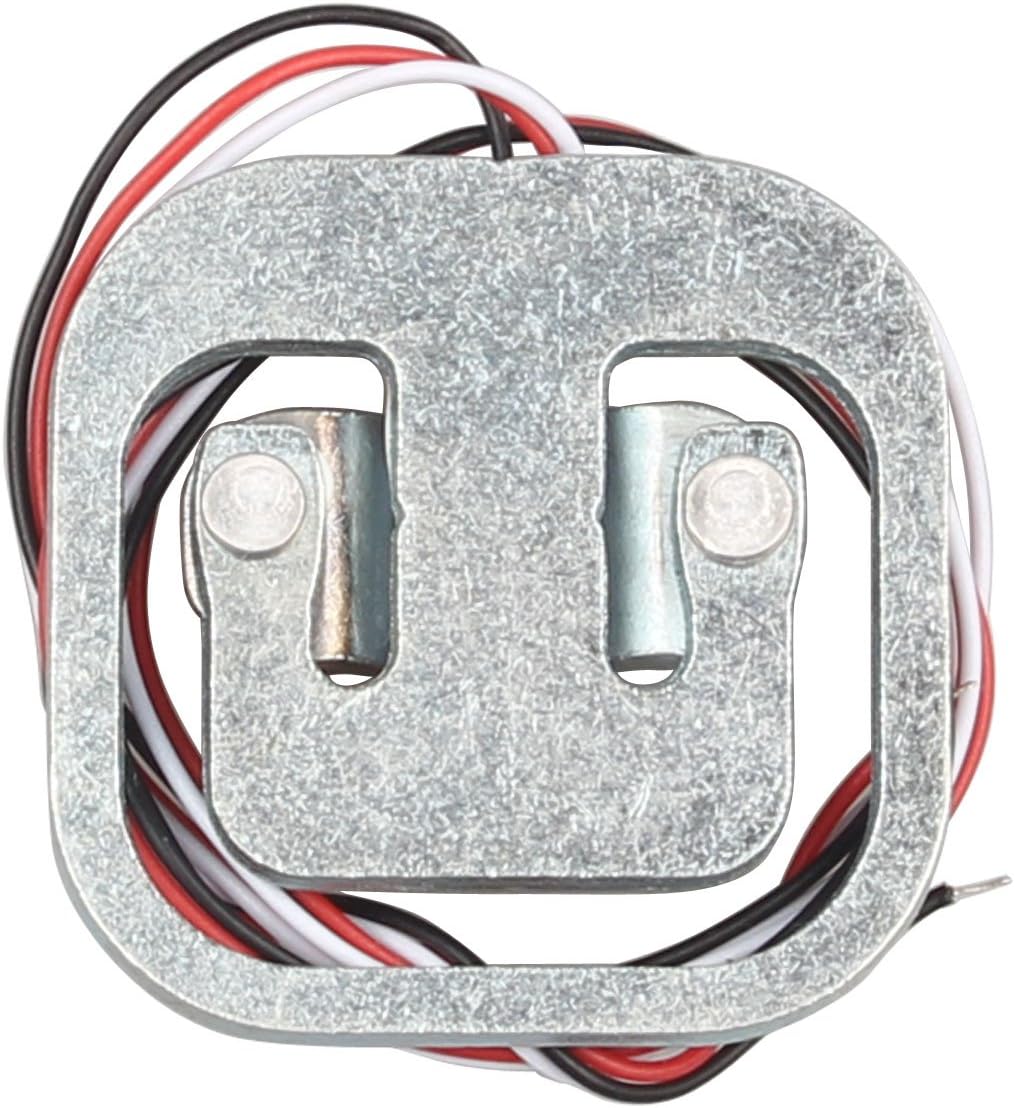

HALJIA 4PCS 50Kg Body Load Cell Weighing Sensor Resistance strain Half-bridge Original Compatible with DIY Arduino Etc
$22.99
- Make sure this fits by entering your model number.
- Total Rated Load : 4x50Kg /440 lb;Overall Precision : 1.0+/- 0.1;Working Temperature : -20C to +65C
- Compensated Temperature Range : -10C to +50C;Safety Overload : 120%F.S.;Recommend Excitation Voltage : DC 5V
- Max Excitation Voltage : DC 8V;Hole Dia : 3mm/0.12″;Hole Center Distance : 27mm/1″
- Total Size : 34 x 34 x 8mm /1.3″ x 1.3″ x 0.31″(L*W*T);Wire Length : 15cm/6″;Material : Aluminium Alloy
- Color : Silver Tone; Package Content : 4Pcs x Half Bridge Weight Sensor
In stock
Additional information
| Weight | 0.082 kg |
|---|---|
| brand | HALJIA |
| dimensions | 11 x 6.4 x 1 cm; 81.65 Grams |
