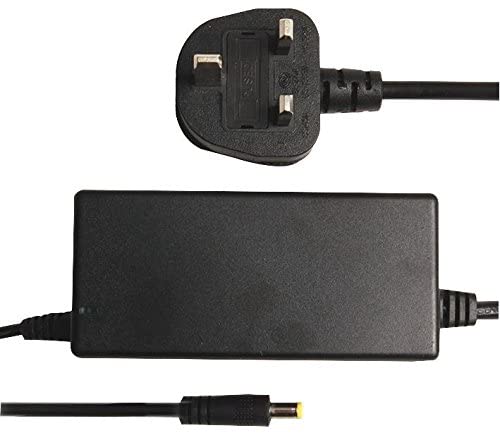

Haydon’s range of multi way metal cased PSUs use the latest technology PTC fuses, eliminating replacing fuses after overvoltage or short circuit occurst Range – 100 ~ 240 vacInput Frequency – 50/60HzInrush Current – < 20A at 240VACInput Current 3A MaxLeakage Current – < 0.25 mA at 50/60 Hz 240VAC InputRated Output Power – 12 WattsOutput Voltage – 12 V4% (11.52V ≤ V outputs ≤ 12.50V)Output Current – 1AOutput Load Efficiency – 70% nominalAdjustment Range – FixedHold-up Time – 30 ms at full load and 230 VAC nominal lineOL Protection – 96% to 104% above peak ratingRipple & Noise – ≤ 200mV at rated LoadEMI Test – EN55022 CLASS, EN6100-3-2.3, FCC CLASS BIsolation – AC3.0 KV/1 min (input to output)Safety Approval – UL, C-UL, CEOperating Temp – 0C to 50C ambient derate each output at 4.0% per degree from 50C to 60CStorage Temp – – 40C to 85COperating Humidity – 5% to 95% (non-condensing)MTBF – 50,000 hours at full load and 25C ambient conditions (demonstrated)Size – 77.5 x 46 x 28mmCable Length – 3.6mUK Plug & 2.1mm Socket – YES
1 x HAY- PSUINLINE1A
Additional information
| Weight | 0.24 kg |
|---|---|
| brand | Brand: Haydon |
