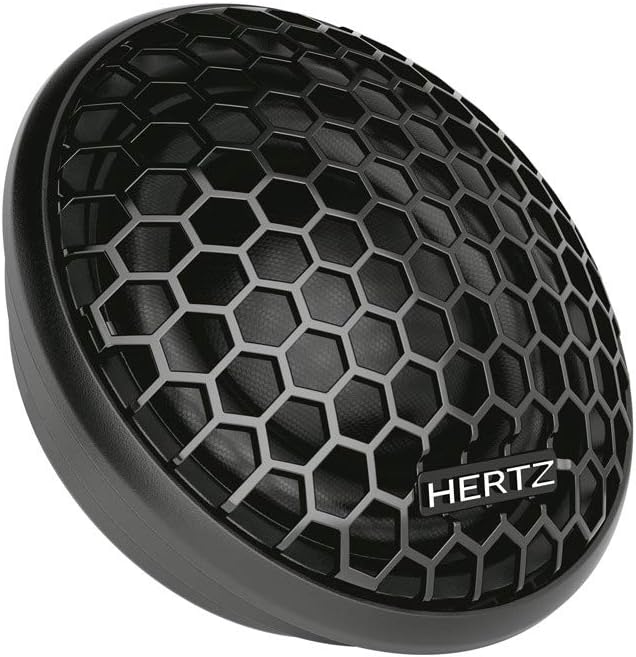

C 26 tweeter features to 26 mm (1 in.) Tetolon dome and 20 mm (2 cm.) voice coil for a detailed and natural reproduction of medium-high frequencies. The R&D team worked extensively to optimize the C 26 dispersion characteristics to maximize performance on the listening point, with a natural and progressive roll-off and a natural timbre that favors frequency linearity.
Size mm (in.) 26(1)
Power Handling – Peak W 120 (Hi-Pass filtered @ 2.5kHz – 12dB Oct.)
Impedance Ω 4
Frequency response Hz 1.8k ÷ 22.5k
Sensitivity dB SPL 92
Voice coil Ø mm (in.) 20(0.8)
Neodymium Magnet
Cone/Dome Tetolon

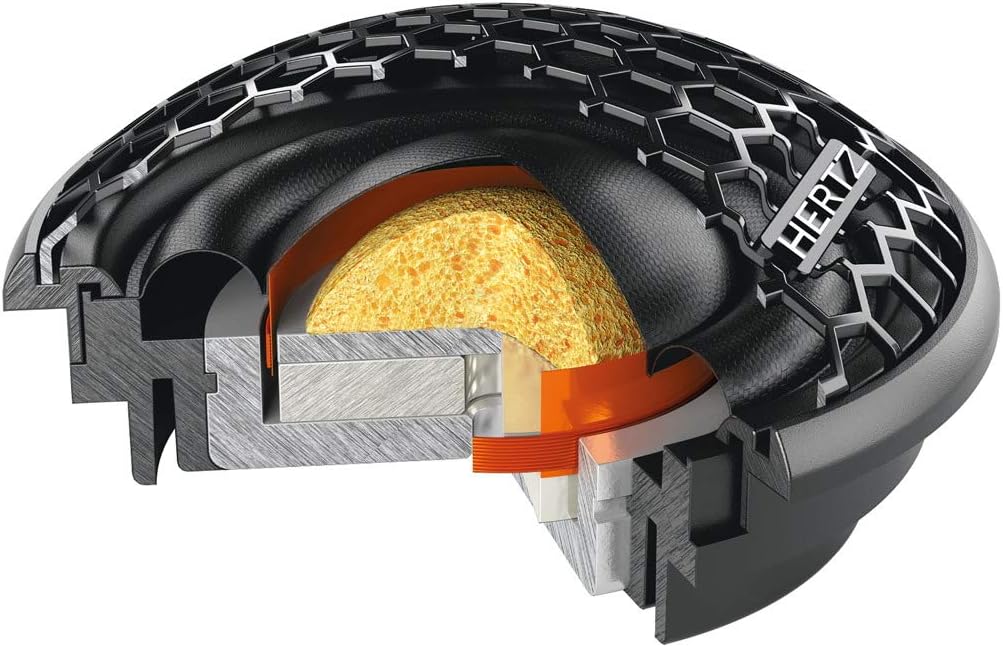

1. Soft Tetolon fiber 26 mm (1 mm.) dome and 20 mm (2 cm.) voice coil, for a natural and yet detailed reproduction of musical nuances.
2. Neodymium magnet with high-density magnetic flux, optimized for maximum control during high-energy dynamic transients in the mid-high frequency range.
3. Faceplate geometry optimized with FEM (Finite Element Modeling) technique for a linear frequency response in off-axis installations.
4. Wide range of accessories, for easy integration in OEM placements.
