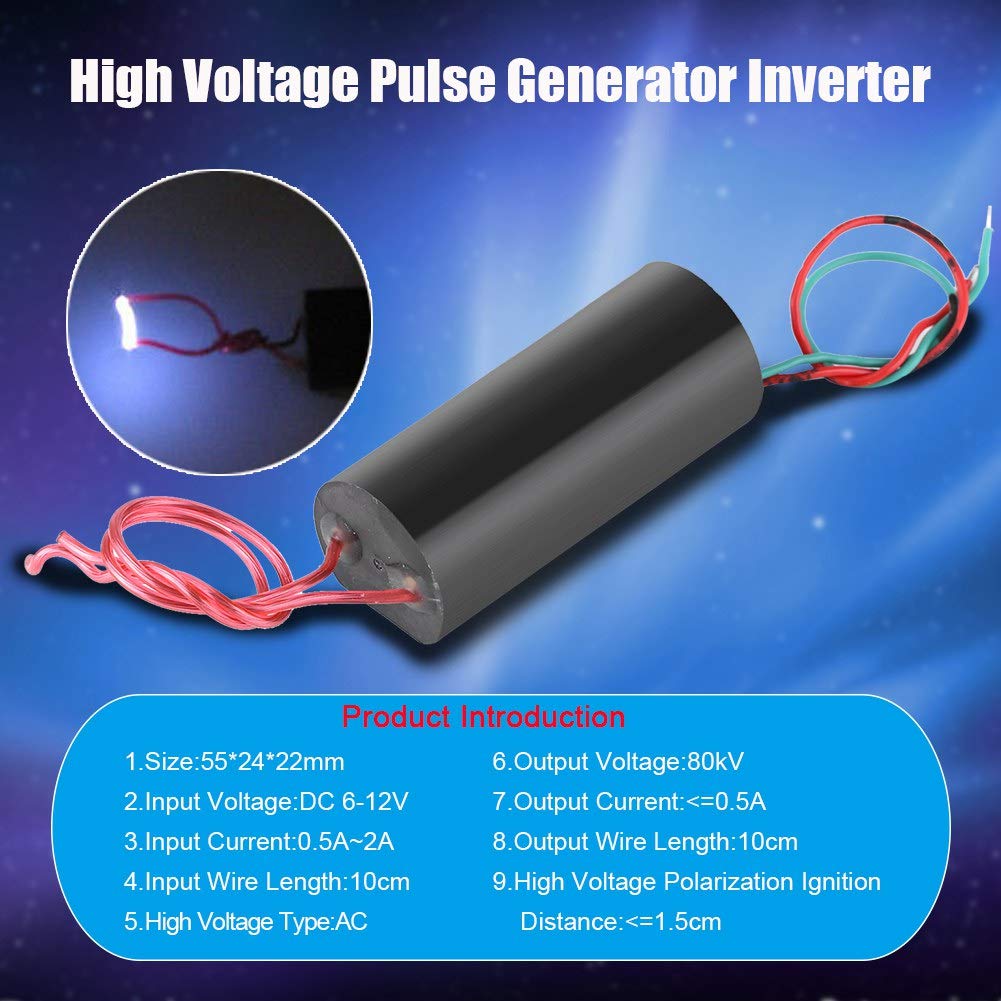

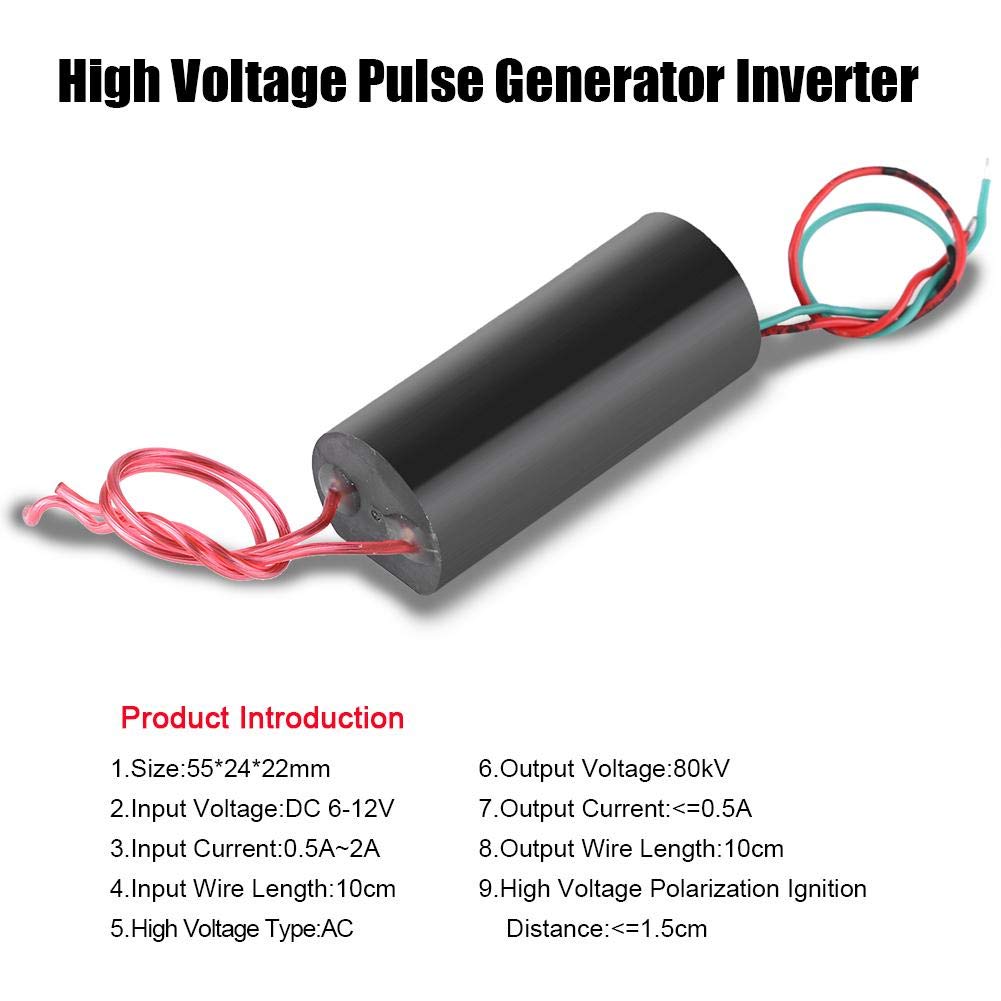

High Voltage Transformer, Fydun 80kV High Voltage Pulse Generator Inverter Super Arc Pulse Ignition Module 6-12V High Voltage Generator

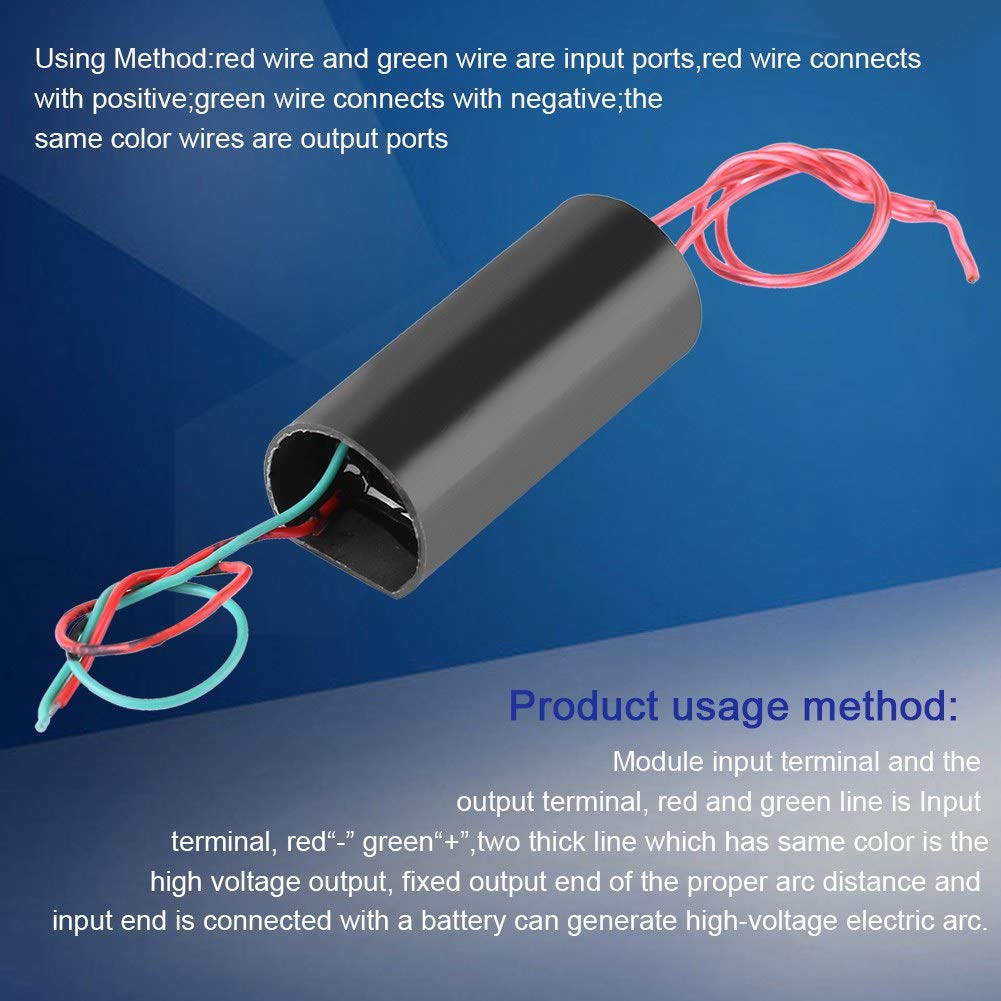

Specifications: Size: 55*24*22mm/2.17*0.94*0.87inch Input voltage: 6V-12V Input Current: 0.5A-2A(depending on the input voltage) Input line length: about 10cm/3.94inch High Voltage type: DC type Output voltage: about 80KV (please pay attention to safety when used) Output current: 0.5A Output line length: about 10cm/3.94inch High voltage poles ignition distance: ≤1.5cm(1.5cm is maximum distance, 1cm is better)Note: 1t the power of 6-12v, output two levels of terminal can produce 1.5cm length purple high temperature arc, instant ignition paper, single high voltage line can also discharge of any metal body, working without a crack sound. 2 the input power: 3.7-v lithium battery can be used in series, such as 18650 battery, idle cell phone battery (to remove the protection board,  recommended capacity above 2000mAh) or Nickel-cadmium/Nimh battery pack, 4V or 12V lead Acid batteries(12V battery works best) Module Usage Precautions: 1. Avoid power on when No load. You must adjust the appropriate distance for high-voltage terminal before power on, high-voltage line arc distance is proportional to the battery voltage and capacity. 2. The test arc distance from the short to long experimental, It is prohibited exceed the maximum arcing distance(<1.5cm,1cm is OK). Otherwise, energy can not be released due to high voltage, easily damaged modules. 3. The module power, the internal is not easy for heat dissipation, so it can not work for a long time. 4 determine whether the battery capacity can drive the maximum output power is the way to measure the battery voltage when in the arc stateage Included: 1 x High Voltage Pulse Generator
