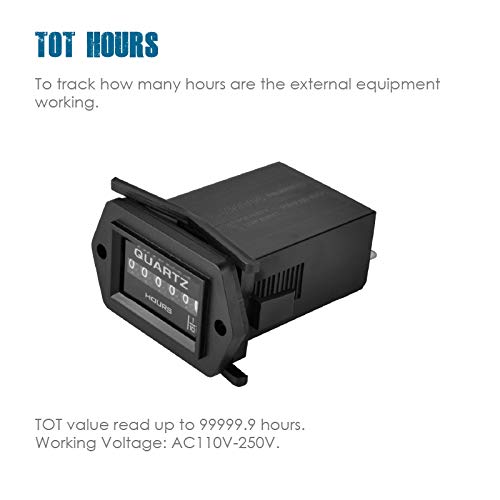

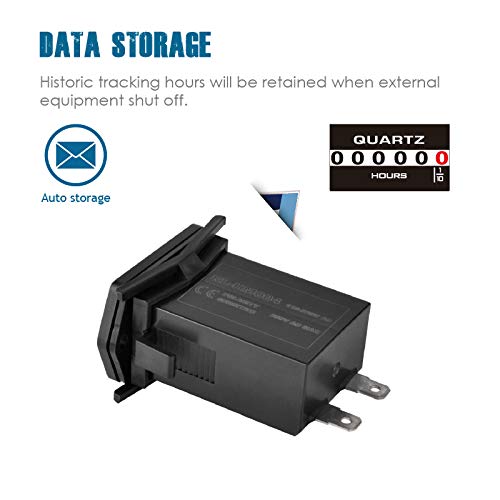

HonorMeet AL-HM004 Mechanical Hour Meter,Volt 110V to 250V,TOT Hours Accumulating, Mount by Plug-in, EEPROM for Data Storageuct Features:1 Hour Meter (TOT) Features—- Accumulate engine total running hours.￭Accumulate TOT hours when connect with external power device.￭Data is automatically stored when the external power is turned off2 Hour Meter Pin Connection￭Connect the pin “+” and pin “-” correctly which on back of hour meter and the meter starts working￭You can connect the key-switch,thermostat,automatic switch and manual switch to turn it on or off; 3 Specifications￭Operating Voltage: AC 110V to 250V￭Display Reading: 99999,9 with running indicator￭Resolution: 0.1 hours￭Accessories user manual,6.3mm insert spring and spring sheath,mounting bracket,rubber mat.
HonorMeet Quartz Hour Meter,AC 110V to 250V,Total Hours Accumulate for Maintenance,Data Storage for Lawn Mower Generator Tractor RV Motorhome Air Compressor. (AC110V-250V)
$41.99
- Hours Meter Gauge: It is a compact and useful device to log working hours to execute the maintenance schedule on any equipment to avoid the excessively runing,Timing range: 0 to 99999.9 hours with 0.1 hour accuracy.
- Application & Working Voltage: This solid hours meter can works on most of garden,agriculture and power machine such as mower, generator,tractor,motorhome compressor etc.; It run by wide and familar voltage range: AC 110VDC,120VDC,230VDC,240VDC.

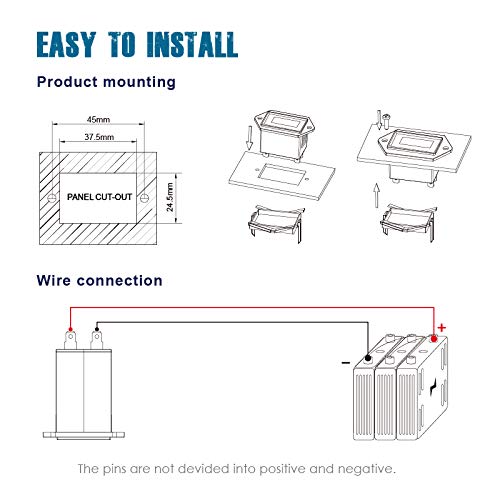

- How to mount: It came with a good set of hardware for mounting, which only requires drilling a mounting hole and simple hooking up; Mounting hole size:approx 37.5X24.5mm(1.5×1 inches).
- How to operate: Installation is easy as long as you can determine where to connect the “+” side of the meter. That connection must only have voltage when the engine is switched on – it doesn’t have to be running, just when the key is in the “on” position.
- Other Features: Favorable water resistence(IP65); EEPROM for data retain about 25+ years;Key or manual switch are all compatible;Reliable after-sales service and excellent technical support.
In stock
Additional information
| Weight | 0.059 kg |
|---|---|
| brand | HonorMeet |
| dimensions | 5.4 x 3.2 x 6 cm; 59 Grams |
