Additional information
| Weight | 2.581 kg |
|---|---|
| brand | Brand: Huanyu |
| dimensions |
Huanyu Hydrothermal Synthesis Autoclave Reactor with PTFE Lined Vessel for lab (Customizable) (100ml)
$369.99
- 【Material】Reactor: Stainless Steel; Liner: PTFE(Poly Tetra Fluoroethylene: Resistant to Acid and Alkali, and various organic solvents, it is almost insoluble in all the solvents. Meanwhile, PTFE is featured by high temperature resistance, its coefficient of friction（COF）is very low, easy to be cleaned.)

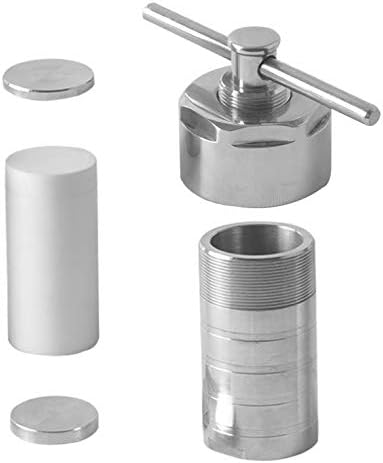

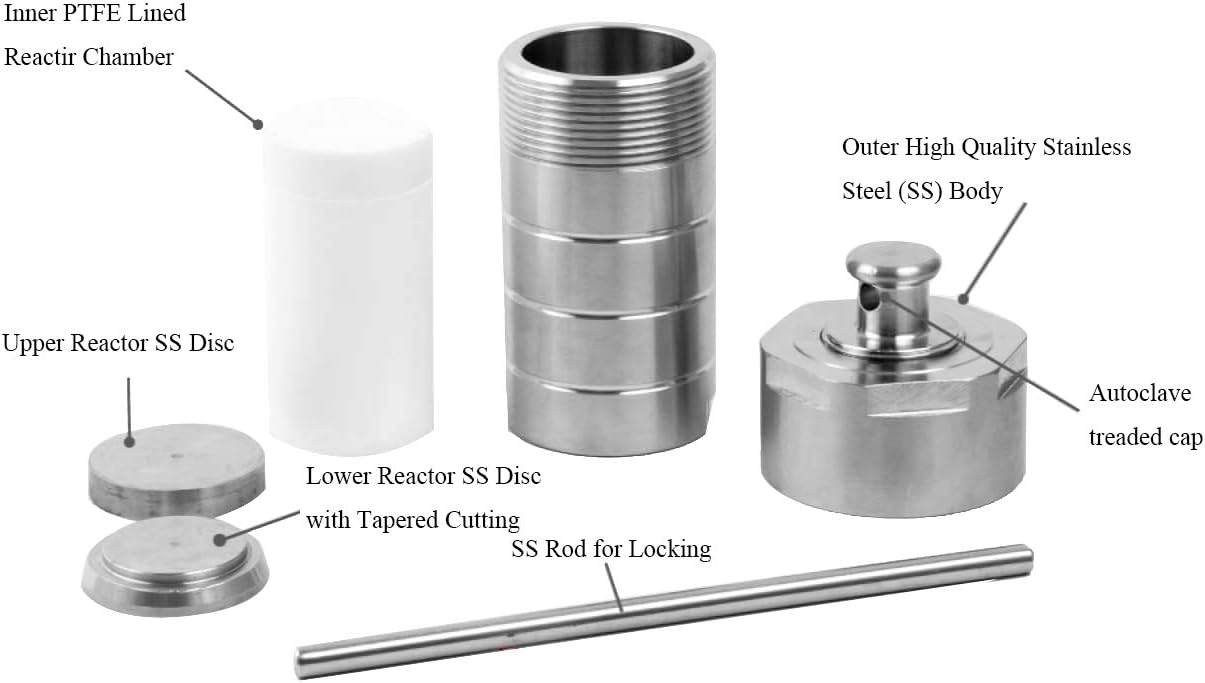

- 【6 Simple but Qualified Parts】: Reactor Body, Reactor Lid, Bottom Pad, Top Pad, Liner, Liner Lid. (Notes: Please use the matching liner if needed, products from different factory may result in poor leakproofness, the liner may be distorted under high temperature and pressure).
- 【Heat Noted】The inner temp will still increase to a degree when the outer temp is constant, a constant temperature needs to be adjusted to ease the heat shock. The hydrothermal synthesis reactor with external heating, to reduce the volume and more favorable reaction in the same reactor operating temperature (such as multiple reactor placed in an oven heated). So is the Security Pressure: 2Mpa.
- 【Professional Safe Data】At room temperature, the softening of PTFE generally occurs at around 240 ° C. Considering the pressure, we measured a safe temperature of 220 ° C. When we introduce it, we give the safe temperature of the inner liner is 200 ° C, and it is recommended to use it within 200 ° C. So this data is cautious and very safe.
- 【Liner Links】If you want the extra liner, please turn to: PPL lined vessel liner: B071XCQPNB or PTFE Lined Vessel Liner: B071GT8PQT
In stock
