HUYU IP68 Waterproof Junction box Flame Retardant Cable Connectors for cables with diameters 4-14mm. Junction box provides a fast, easy way to repair and extend power wires. 6-pin connector terminal, more stable and no short circuit. IP68 waterproof and dust-proof, UV protection and rain-resistant for long time use. Each ends with waterproof M20 and PG9 cable gland connectors waterproof rubber rings. 3 sets of different sizes waterproof sealed rubber rings, 5-9mm, 9-12mm, 4-8mm. It is applicable to the outdoor lamps and lanterns connection. Suitable for electrical installations, outdoor cabling and cable repairs or extends. It can be installed in outdoors and indoors, underwater and underground. Specifications: Materials: waterproof flame retardant PC material Colour: black Cable Gland Model: M20 + PG9 Waterproof: IP68 Max Depth: 4m Rated Voltage: AC 450V Rated Current: 24A Support Cables: 5-12mm, 4-8mm Total Length: 140mm/5.51” Total Width: 105mm/4.13” Box Length: 80mm/3.15” Box Width: 65mm/2.56” Height: 37mm/1.25” M20 Connectors: 23.5/ 0.92” PG9 Connectors: 19mm/ 0.74” Weight: 138g Notes: Please tighten the screws, or the water will leak in. Please use the correct diameters rubber rings for the cable entries. Package Contents: 1 x 6-way waterproof junction box 1 x 6-pin connector terminal 2 x 5-9mm waterproof rubber ring 2 x 9-12mm waterproof rubber ring 4 x 4-8mm waterproof rubber ring 2 x Waterproof stopper 2 x Set screws 2 x Plastic plug 6 x Sealing screws
IP68 Waterproof Junction Box, HUYU 6-Way Outdoor Cable Connectors with M20 PG9 Glands Electrical Junction Box for Ø 5-12mm Ø 4-8mm – H6
₪297.99

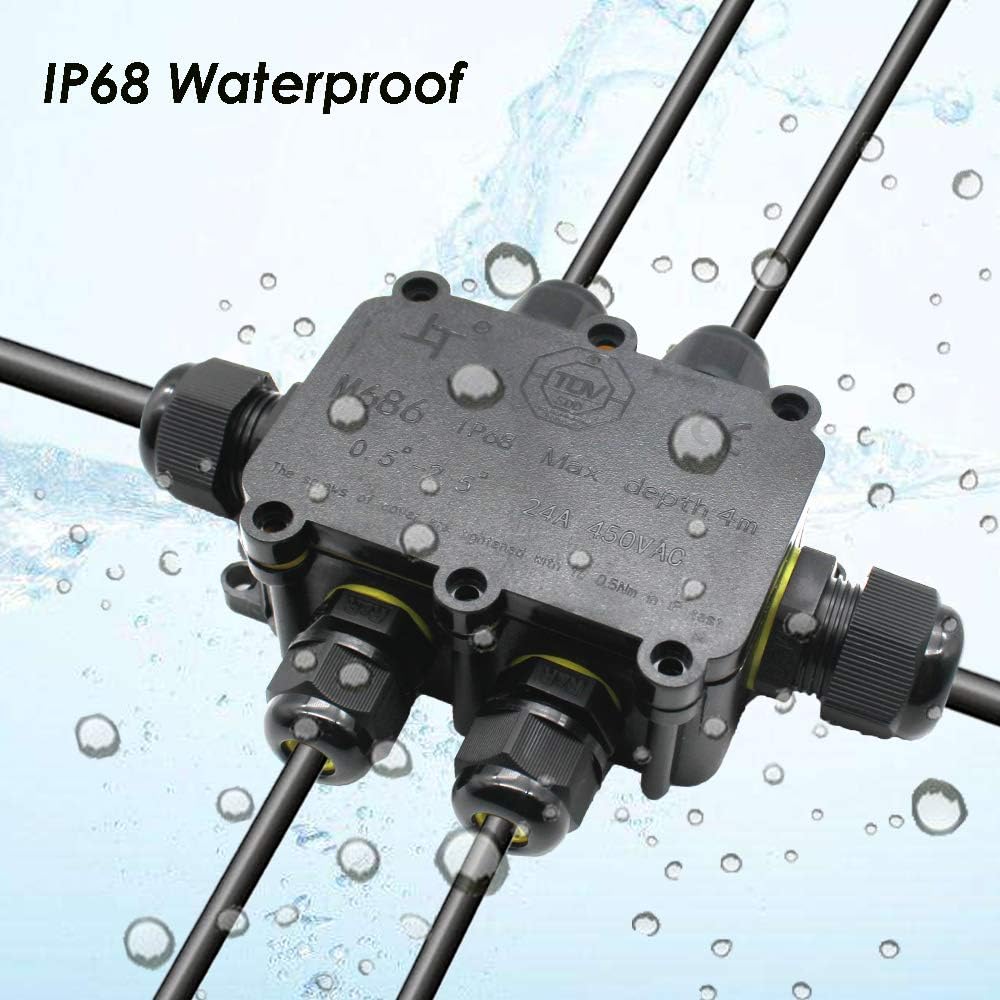

- IP68 WATERPROOF & DUST-PROOF __ HUYU junction box is certificated by CE, TÜV, CUL, ENEC and ROHS; professional waterproof grade is up to IP68, max depth can up to 4m. Dust-proof, anti impact, anti-UV and rain, these functions make sure it could be used under the sun or in rainy days.

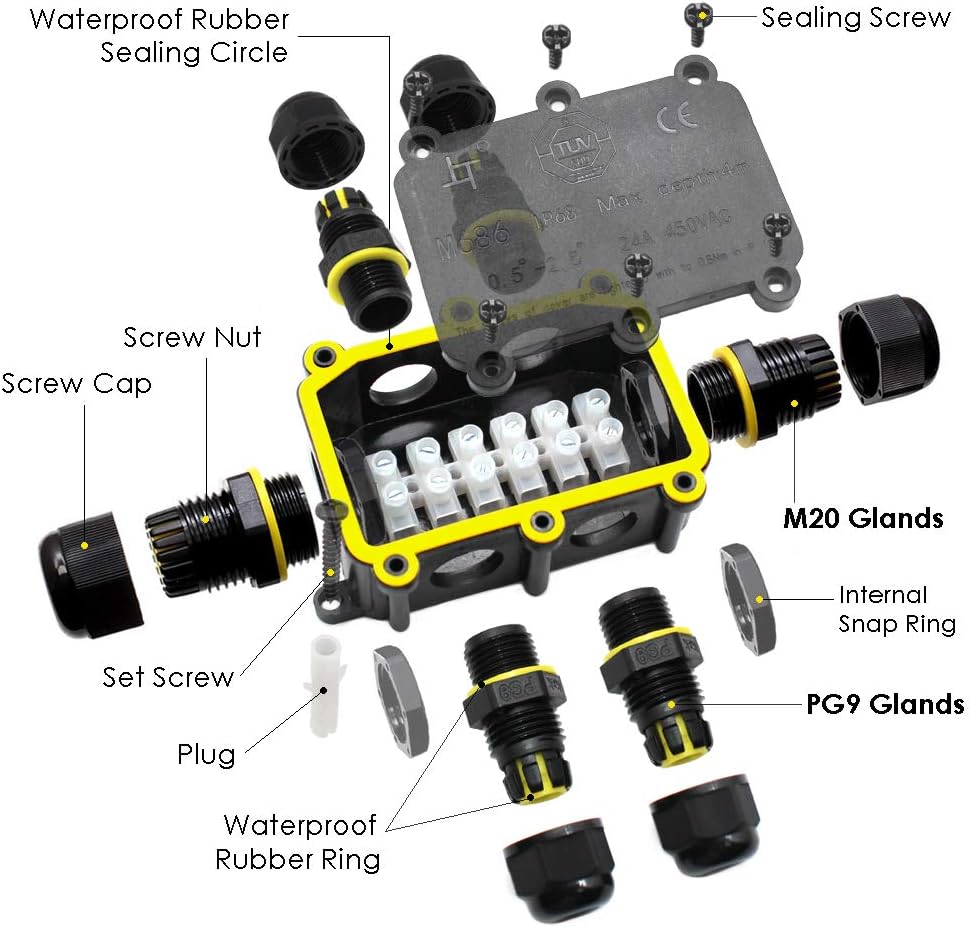

- GOOD SEALING PERFORMANCE __ Waterproof sealing rubber circle and M20 PG9 cable gland connectors to completely seal. 2 sets different sizes waterproof sealing rubber rings to support cables of 5-9mm, 9-12mm and another set ring for cables of 4-8mm; you can change by yourselves to suitable for different cables to prevent water entering.
- SUPERIOR OUTDOOR BOX __ Premium quality waterproof flame retardant PC material which is fireproof, dustproof, anti-impact, durable and won’t break. It is designed for home, garden and farm and also ideal for harsh industrial or outdoor environments. Rated voltage is 450V and rated current is 24A.

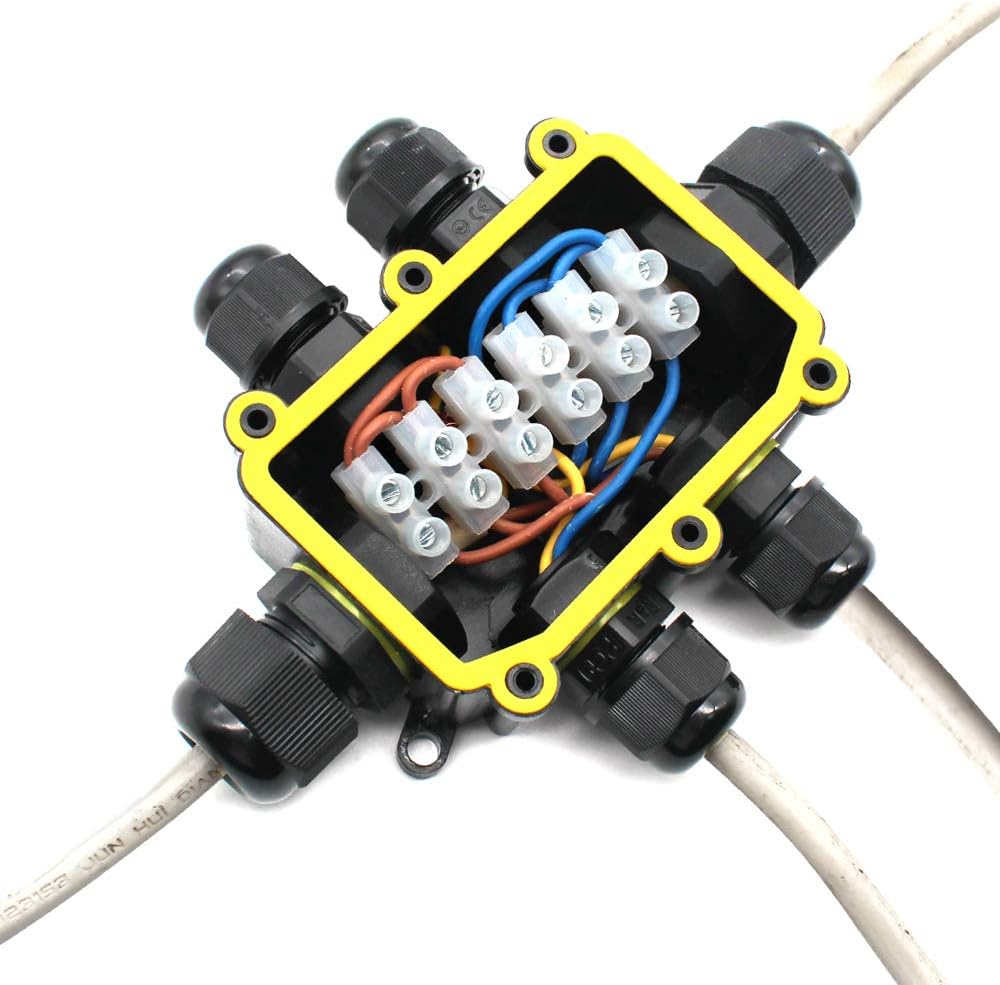

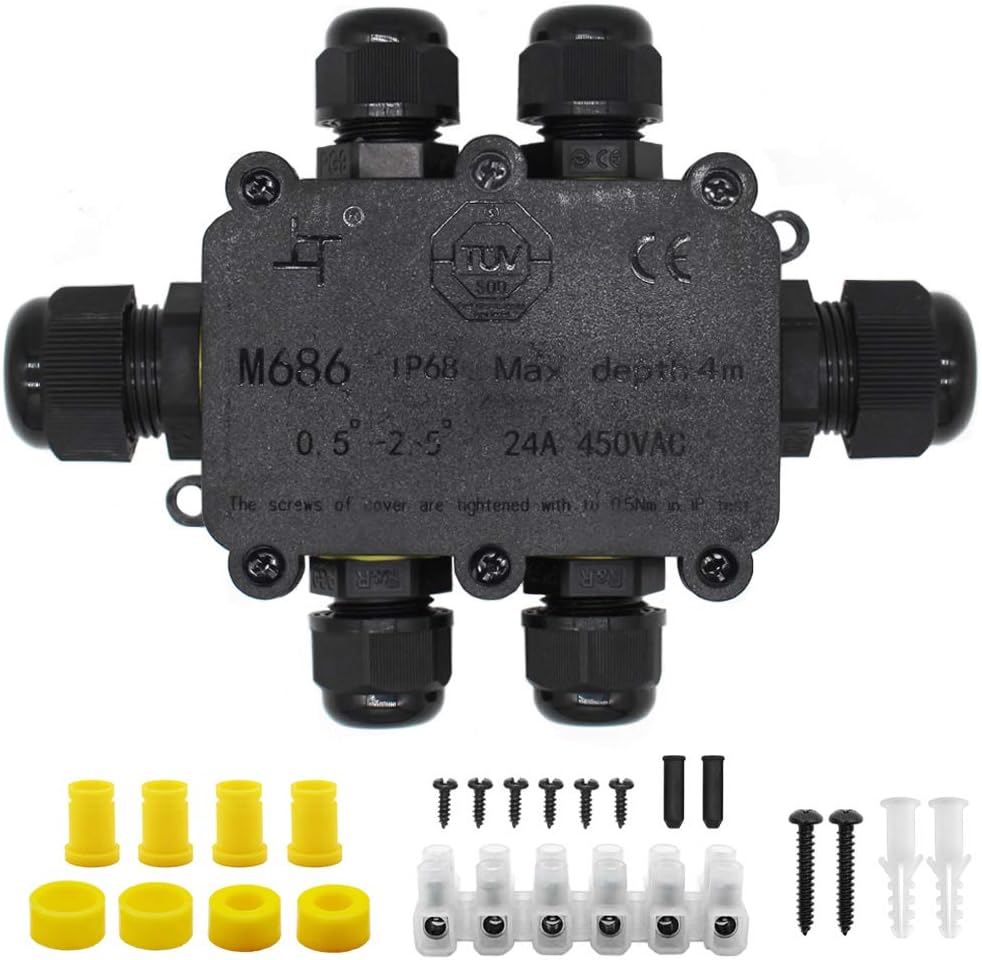

- EASY TO INSTALL __ HUYU junction box can be conveniently installed under the ground gives you full protection of the cable line. Equipped with 6 sealing screws and a 6-pin connector terminal for easily install. It also equipped with wall set screws and plugs that can be used on indoor and outdoor walls.
- WIDELY USED__ Suitable for electrical installations, outdoor cabling and cable repairs or extends. It can be installed in outdoors and indoors, such as wall, garden, yard, path, patio, road, street, swimming pool, pond, balcony, house, also widely applications in underwater engineering, underground engineering, and various industrial area.
In stock
Additional information
| Weight | 0.14 kg |
|---|---|
| brand | HUYU |
| dimensions | 12.45 x 11.68 x 3.81 cm; 140 Grams |
