NOTE:
1. Please confirm that the power supply voltage is the rated voltage and ensure that is higher than the power of water pump.
2. The power cord can’t be reversed, with red indicating the positive pole(red+) and black indicating the negative pole(black-).
3. Before cleaning, maintaining and operating the pump, please disconnect the power supply first.

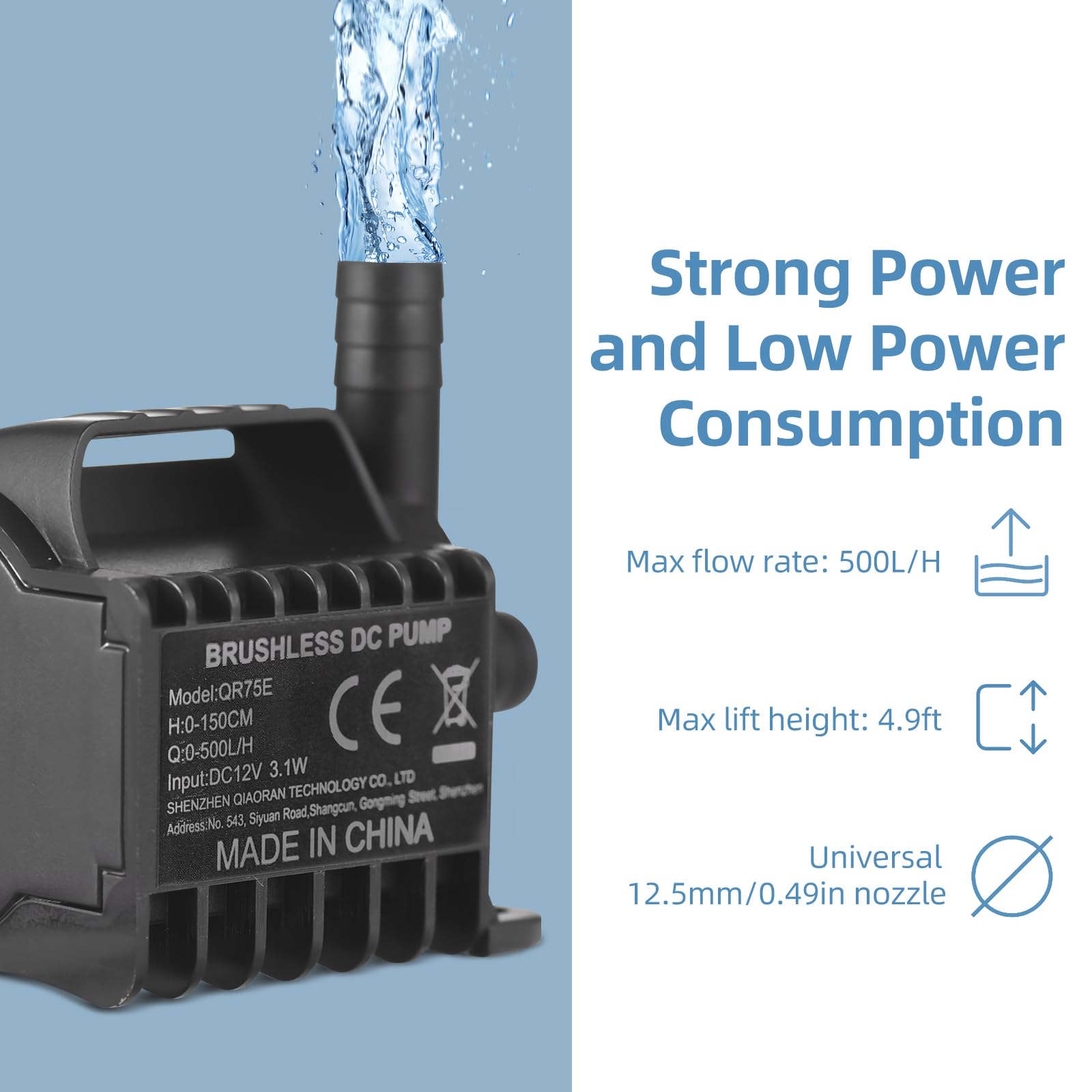

Specification:
Color: Black
Model: QR70E / QR75E (optional)
Material: ABS
Max power: 3.1W
Rated voltage: 12V
Max lift height: 1.5m / 4.9ft
Wire length(without plug): 50cm / 1.6in
Max flow rate: 500L/H
Water inlet and outlet outer diameter: 12.5mm
Centrifugal pump temperature: 0-60℃
Size: 66.9 * 53.3 * 31.8mm / 2.6 * 2.1 * 1.2in
Weight: 125g / 4.4oz
Package size: 100 * 65 * 65mm / 3.9 * 2.5 * 2.5in
Package weight: 132g / 4.6oz
Packing List:
1 * Water pump
1 * Filter
1 * Suction cup base
1 * Instruction
