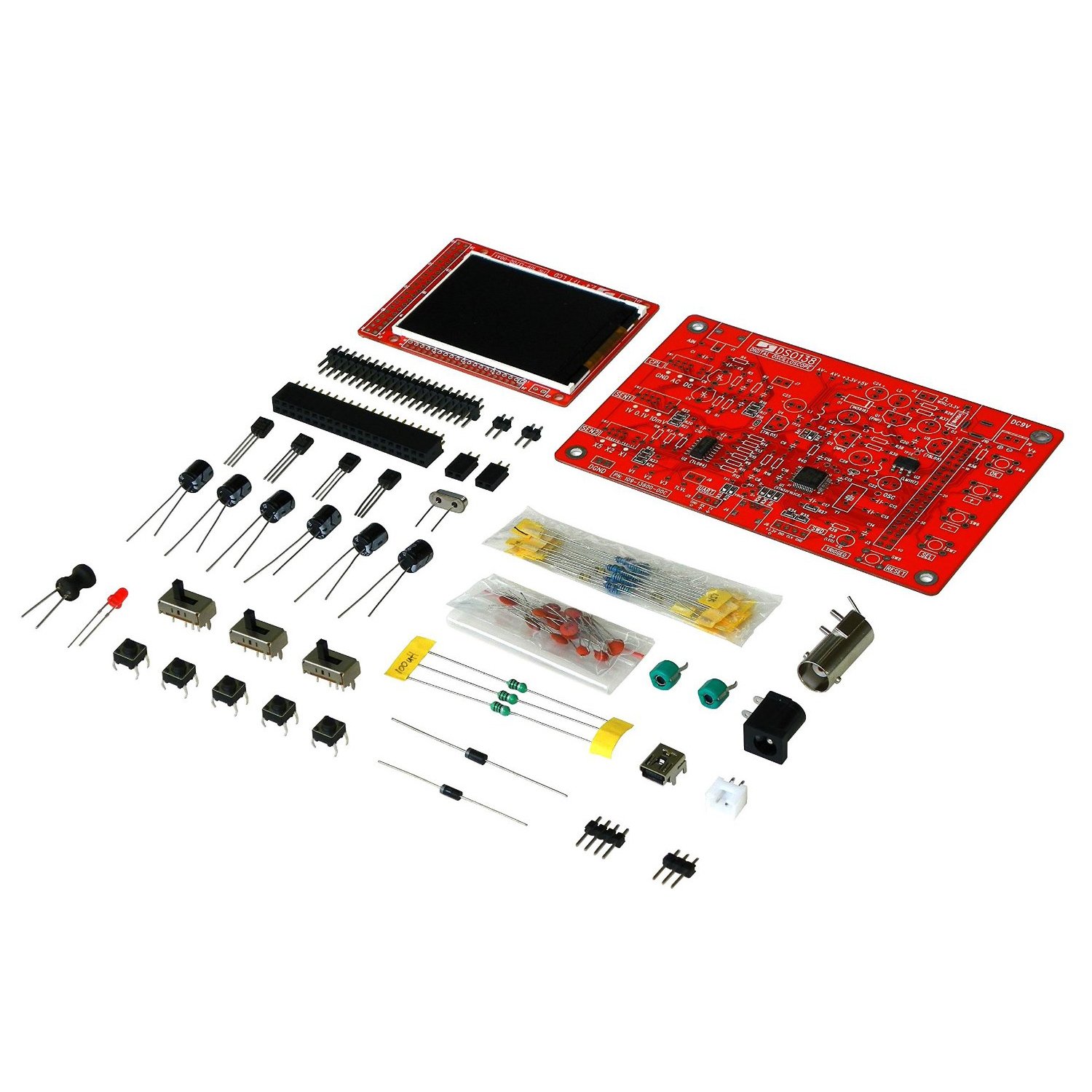

Included: ✔ DSO138 Oscilloscope circuit boards and parts kit ✔ 100MHz oscilloscope probe with 1x/10x feature ✔ Alligator clip oscilloscope probe ✔ ESD-safe, temperature-safe silicone soldering mat ✔ Printed assembly instructions, troubleshooting guide and schematic
Build your own functional oscilloscope for your bench. How cool is that??
DSO138 (DSO 138, 13803K) set, 100MHz oscilloscope probe, and ESD-safe silicone mat are included in your purchase. NooElec is the preferred authorized reseller of JYETech products.
Have a question? Contact us today in your language! We are always happy to assist.
DSO138 features: ✔ Analog bandwidth: 0 – 200kHz ✔ Sampling rate: 1Msps max ✔ Sensitivity: 5mV/Div – 20V/Div ✔ Vertical resolution: 12-bit ✔ Timebase: 10us/Div – 500s/Div ✔ Record length: 1024 points ✔ Built-in 1kHz/3.3V test signal ✔ Hold, save, recall functions
JYETech ‘DSO 138’ Oscilloscope DIY Kit w/100MHz Probe, Clip Probe & ESD-Safe Silicone Mat
$128.99
- Build your own color oscilloscope! Basic through-hole soldering skills are required (surface mount parts are pre-soldered to PCB)
- Purchase includes full oscilloscope kit with parts, 100MHz oscilloscope probe, additional alligator clip probe, and ESD-safe mat for protecting your desk while soldering
- Printed instructions, troubleshooting guide and schematic are also included
- Contains a 2.4″ color TFT LCD (320×240) display
- We speak your language! Need help? Contact NooElec for assistance!
In stock
Additional information
| Weight | 0.26 kg |
|---|---|
| brand | NooElec |
