Description: The driver board can drive brushless hard disk motors, CD-ROM brushless motors and other 3 or 4 wire brushless micro motor without hall sensor. Features: 1, supports reverse voltage protection. 2, support on current protection. 3, simple and very easy to use wiring. 4, suitable for hard brushless motor, brushless motor drive and other miniature 3 or 4 wire brushless motors without room. Technical features: Drive voltage range: DC 9 V-12 V Recommended voltage range: 9 V-12 V Current: ≤1.8 A (if more than 1.8 A, the chip could be burned) Working current: ≤1.2 A Speed control range: 0% -100% Phase Inversion Control: Support Reverse voltage protection: support Over Current Protection: support Weight: 24 g (approx.) The package includes: 1 x Motor Drive Board Note: the brushless motor cable must be firmly connected to the converter board. A wrong connection can cause the articles to burn. Please use large cables, due to the distance of the screw.

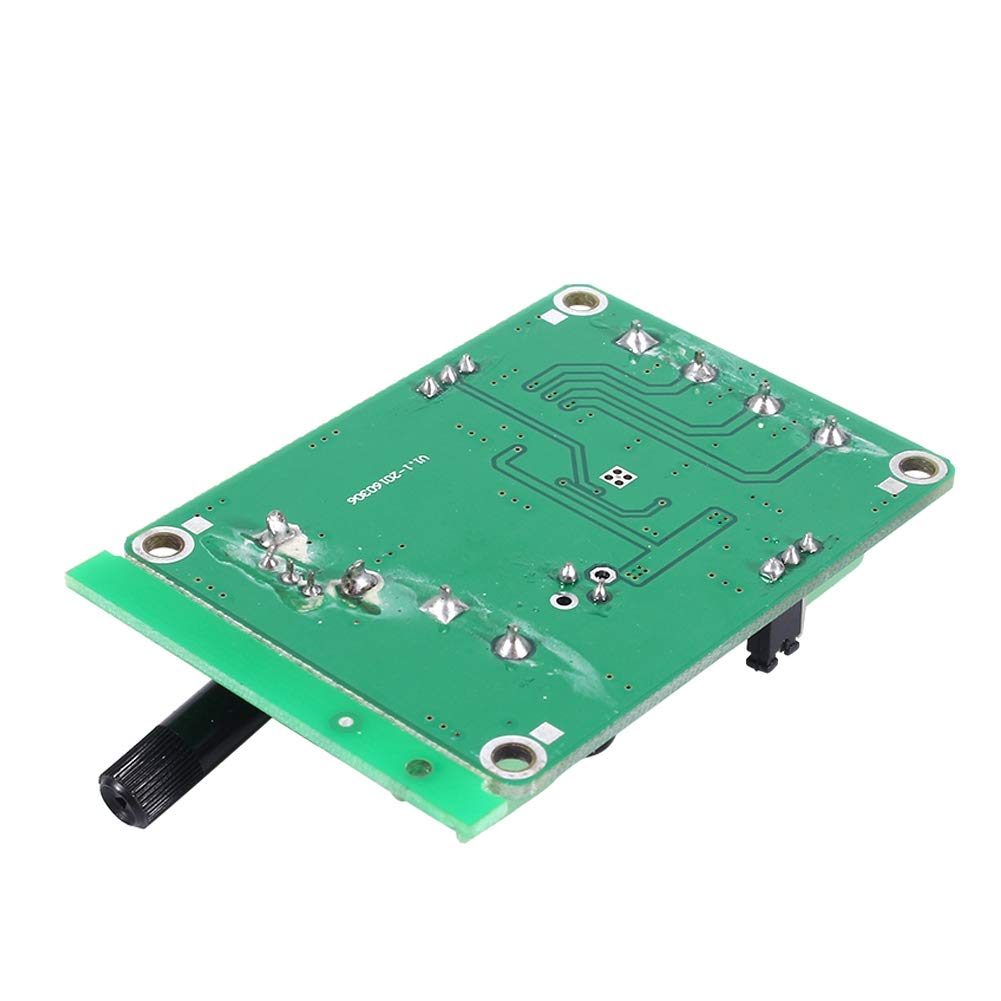

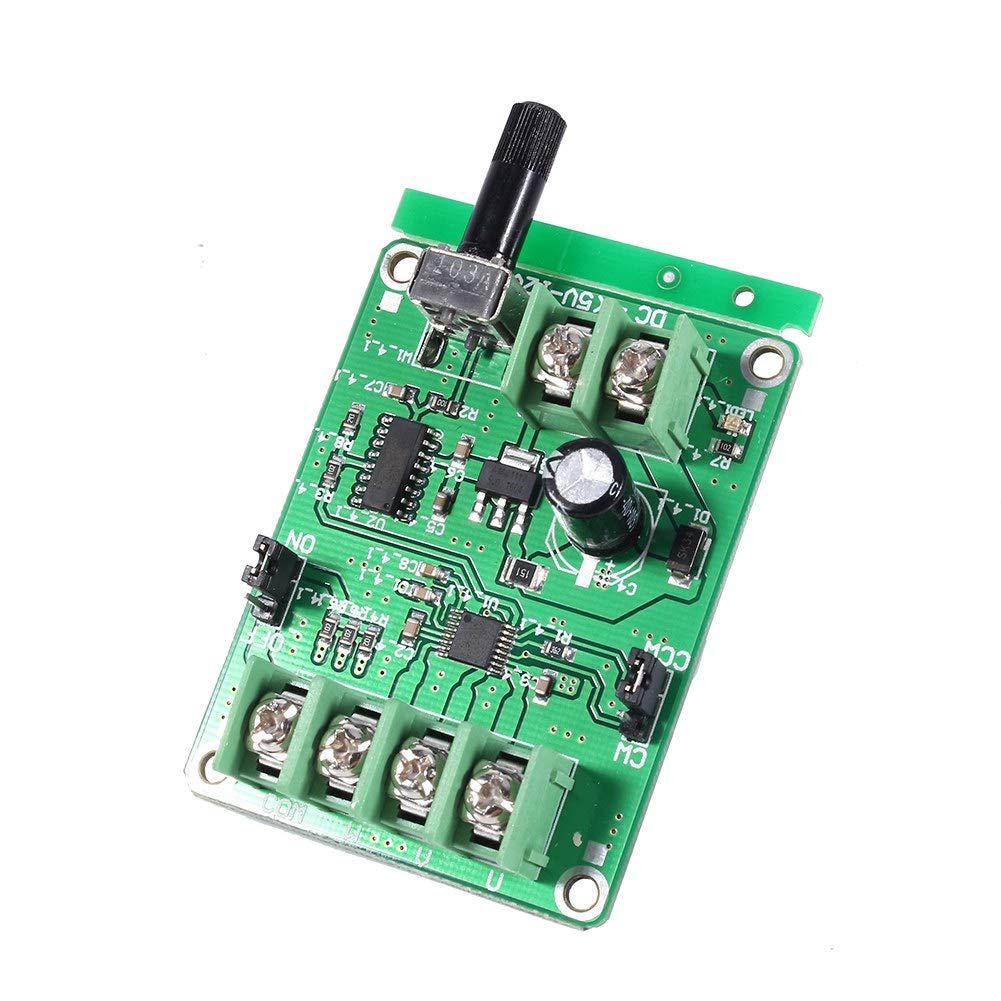

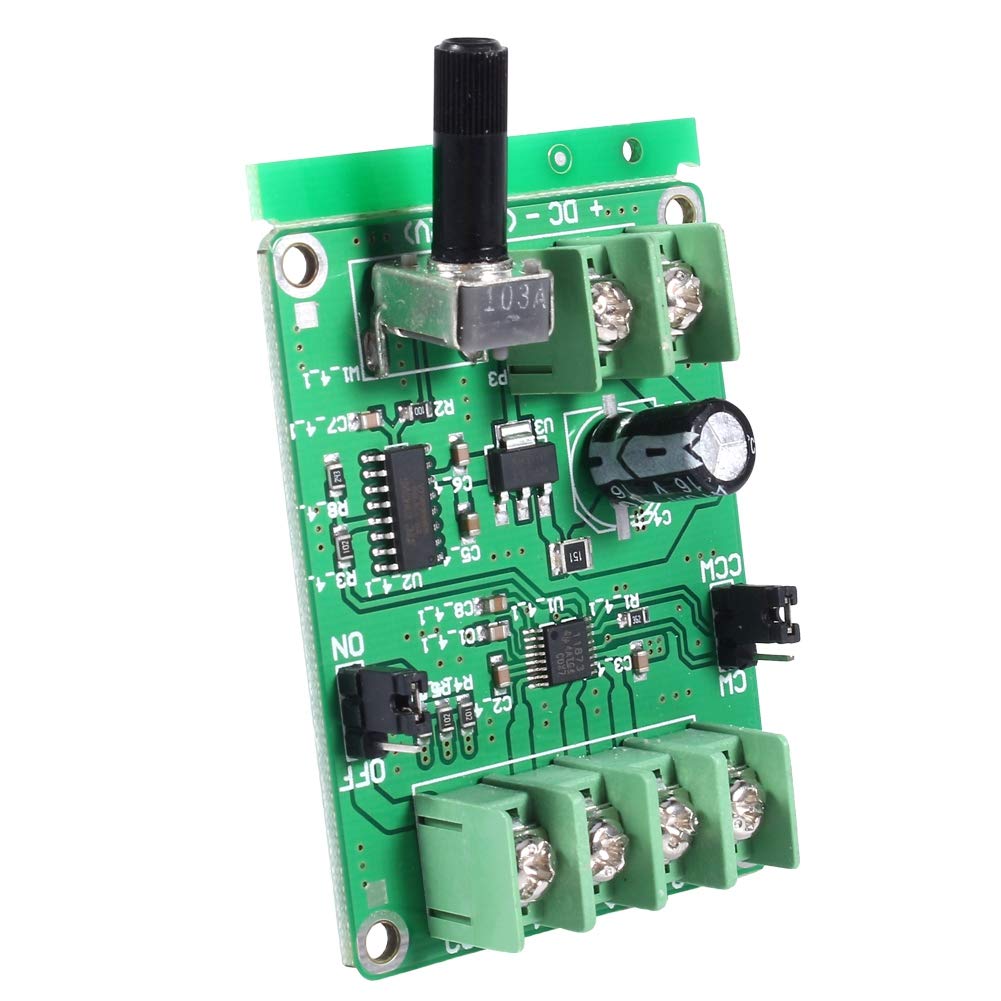

Keenso brushless motor driver board controller, 9 V to 12 V DC driver board controller for hard disk
$24.99
- 【Automatic protection】 The motor driver supports reverse voltage protection form will not be easily burned
- 【Overcurrent protection】 The converter board is less than 1.2 A working current, motors easy to operate, with overcurrent protection and short-circuit protection
- 【Easy to use】 Simple controller wiring and very easy to use driver cable of the driver board must be firmly connected to the frequency converter board
- 【Application】 Suitable for hard brushless motor, brushless motor drive and other miniature 3 or 4 wire brushless motors without room
- 【Strong Drive motore The motor controller board adopts the double bridge H, capable of driving two DC motors simultaneously
In stock
Additional information
| Weight | 0.022 kg |
|---|---|
| brand | Keenso |
| dimensions | 6.1 x 4.6 x 2 cm; 20 Grams |
