D Multimedia Interface KVM dual monitor switch can control up to 2 computers or laptops, 1 set of independent USB keyboard, mouse and monitor or 2 sets of expansion or duplication of monitors with dual head input.

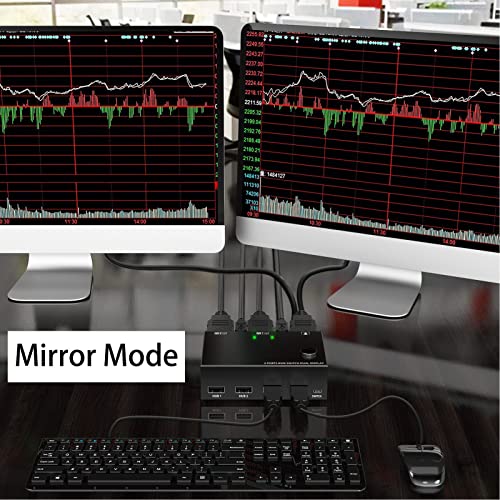

2. Mirrored Display Support: Dual monitor output supports extended and mirrored displays, HD Multimedia Interface 2.0 compatible input and output ports, supports video solutions up to 4K at 30Hz.
3. Switching Modes: The body panel buttons or wired external buttons can easily switch modes for your convenience.
4. HDCP 2.0 Standard: High bandwidth digital content protection technology, built in automatic adjustment system, make the image smoothly, clear and stable.
5. High Compatibility: High compatibility, can automatically match source and display device, plug and play, simple operation.
How to Use:
plug and play
Specification:
Item Type: 2 Port HD Multimedia Interface KVM Switch
Material: Metal
Model: For KC KVM202
Input: 2xPC (HD Multimedia Interface A+B), 2xUSB B (USB2.0)
Video Output: 2xHD Multimedia Interface (Monitor)
Downstream Input: 4xUSB A (Mouse and Keyboard)
HD Multimedia Interface Interface Version: HD Multimedia Interface 2.0
Supported Resolutions: 3840×2160 at 30Hz, 1920×1080 at 60Hz
Power Consumption: 4W
Package List:
1 x Switch
2 x HD Multimedia Interface Cables
2 x USB Cable
1 x Switch Control Wire
1 x User Manual
