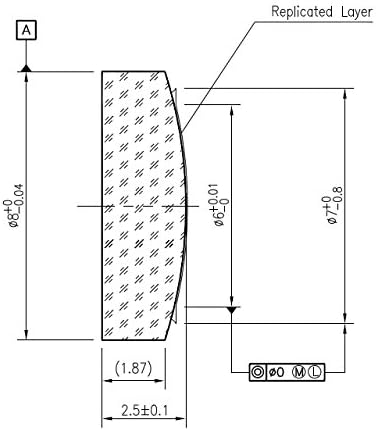

Parameters Lens Material : Hybrid aspherical polymer on glass lens Lens Diameter : φ8.0 mm Center Thickness : 2.5 mm Edge Thickness : 1.87 mm Design Wavelength : 650 nm Clear Aperture (CA) : φ6.0 mm Numerical Aperture (NA) : 0.13 Effective Focal Length (EFL): 23 mm (with BK7 t=0.25mm cover glass) Back Focal Length (BFL) : 21.45 mm Axis Wave front Error (RMS) : 0.03 λ Field Radius : 0.5 mm Transmittance : ≧97% Storage Temperature : -40 to 85 ℃
Laser Diode Collimator Lens-Anteryon AC405,1PCS (NA:0.13, EFL:23 mm)
$121.99
- Make sure this fits by entering your model number.
- AC405 is the Hybrid Aspherical Polymer on Glass lens, which is diffraction limited and have low wave front aberration.
- Long focus length (23mm) can provide more stable optical system.
- AC405 is the ideal choice for collimating or focusing the light of a laser diode.
In stock
Additional information
| Weight | 0.01 kg |
|---|---|
| brand | Quarton |
| dimensions | 0.8 x 0.25 x 0.8 cm; 0.1 Grams |
