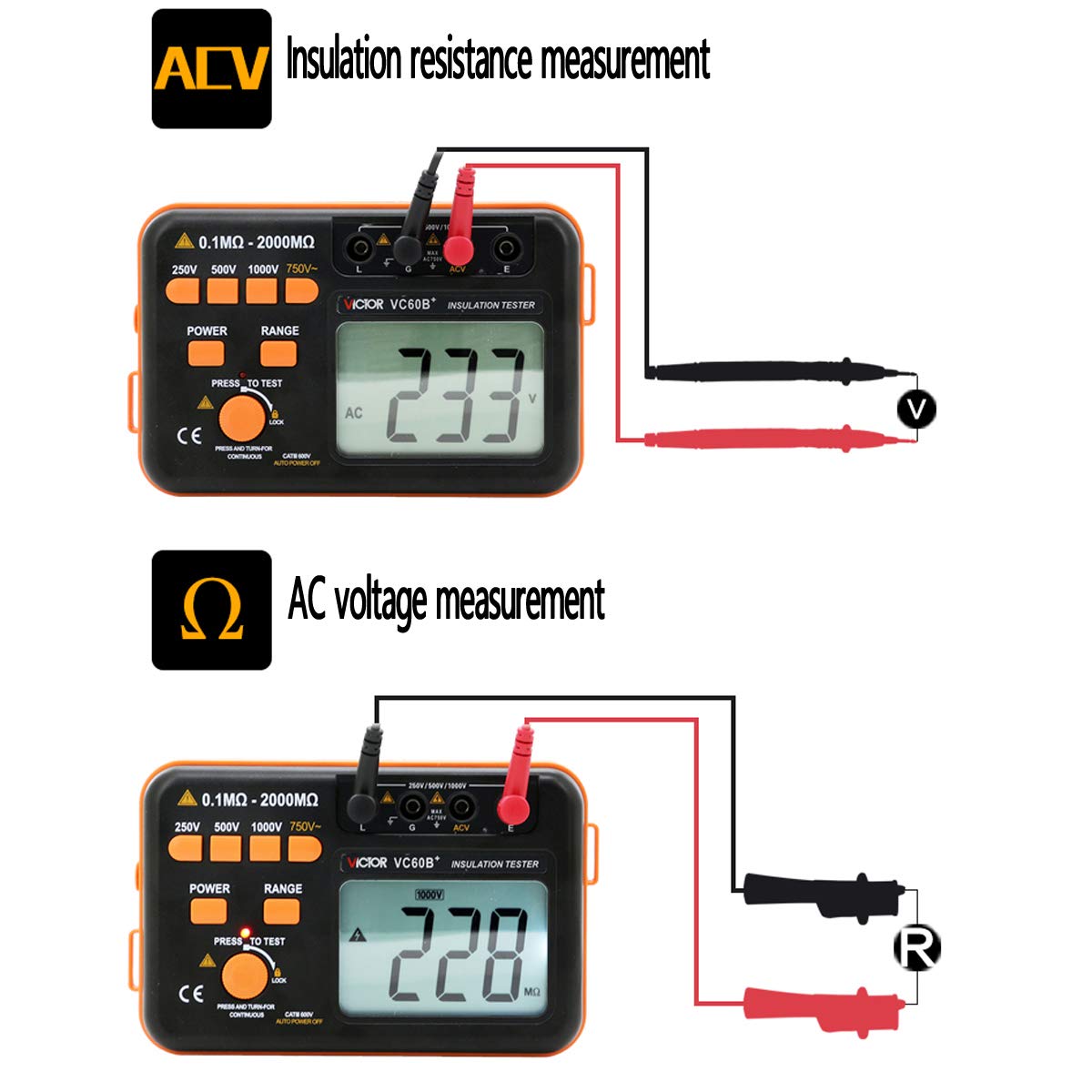

ntroduction: The whole instrument is stylish and superior grade in appearance and highly stable in performance. It can be operated by both hands through using a shoulder strap. It is most suitable for the needs of insulation resistance check, such as electric, cable, electrical and mechanical equipment, telecommunication equipment and electrical facilities. Specification: Model: VC60B+ Measuring Voltage: 50V±10% 500V±10% 1000V±10% Insulation Range: 0.1MΩ~20 MΩ 0.1MΩ~50 MΩ 0.1MΩ~100 MΩ 20MΩ~500 MΩ 50MΩ~1000 MΩ 100MΩ~2000 MΩ Accuracy: ±(4%+2) Current of Short Circuit: 1.8mA 1.8mA 1.6mA Median Resistance: 2MΩ 2MΩ 5MΩ Terminal Position: L & E Voltage Test(AC750V) Accuracy: ±(1.0% of reading + 6 digits) Input Impendance: 1MΩ Frequency Response: (50~200) Hz Terminal Position: ACV & G Alarm Function Red indicator light is illuminated Low Battery Indication: Yes Over Load Indication: Yes Unit Symbol Display: Yes Auto Power Off: Yes Max. Display: 1999 Over Range Display: “1” Operating Temperature: 0℃~40℃ Relative Humidity: 30%RH~85%RH Dimension: 105×164×70mm Weight: 900g Power: 9V,6 x AA/1.5V battery (Included) Package Include: 1 x Digital Insulation Tester 1 x 10A Test Leads 2 x Alligator Clip 1 x Shoulder Strap 1 x User Manual 6 x AA/1.5V battery

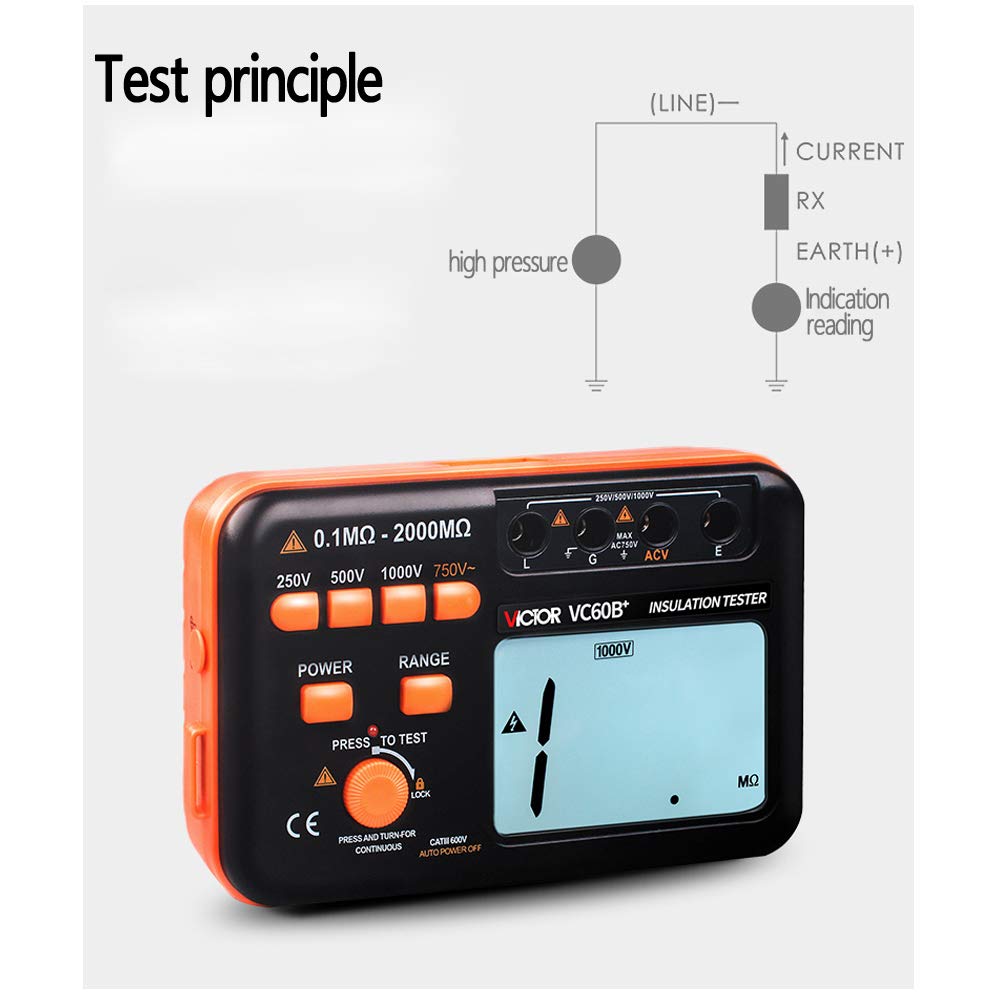

LEAGY VICTOR VC60B+ Digital Insulation Resistance Tester Megohm Meter DC250/500/1000V AC750V Orange with Black
£137.99
- 1, Measure Range up to 2000MΩ 1000V with Accuracy of ±(4% of reading +2 digits)

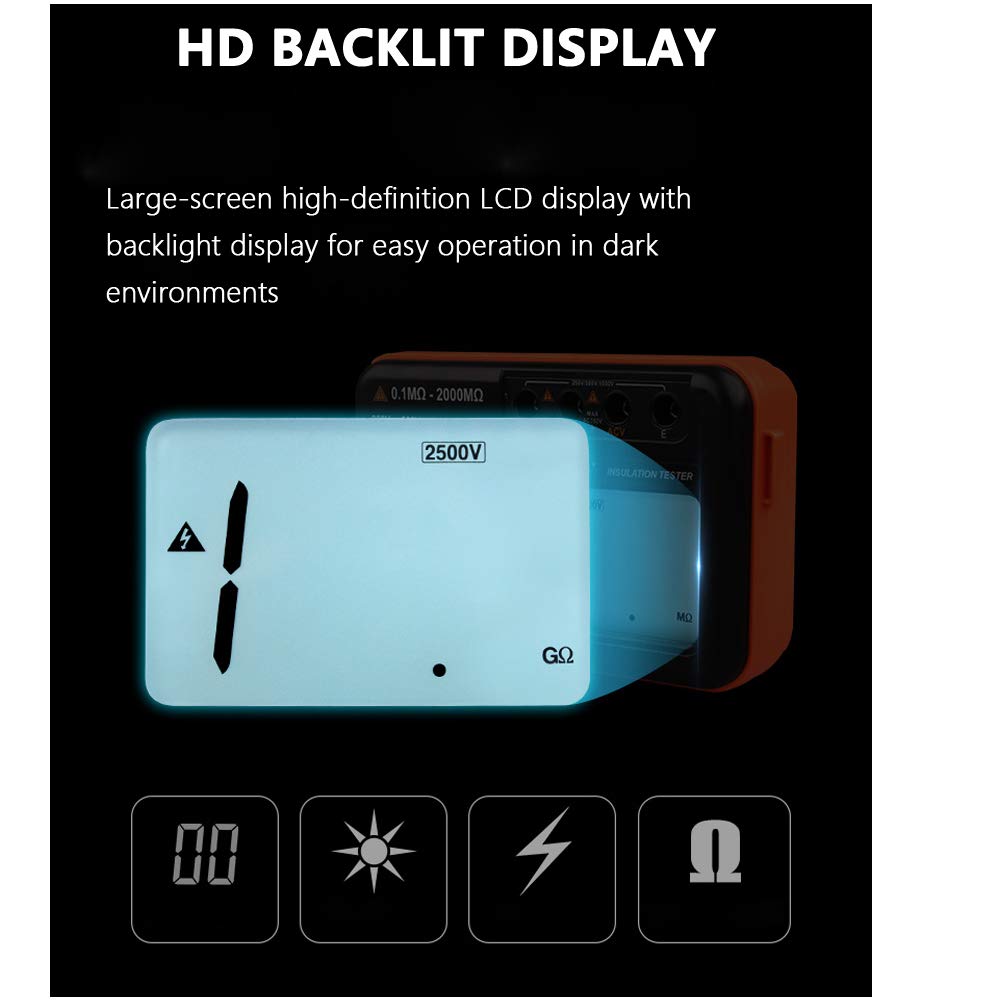

- 2, Large LCD display (84.8*59.8mm), with backlight, max display “1999”
- 3, Data hold and auto power off
- 4, Over Range indication: display “1”
- 5, Low power consumption: Less than 300mw at unload measurement
In stock
Additional information
| Weight | 0.798 kg |
|---|---|
| brand | LEAGY |
| dimensions | 10.4 x 7.1 x 16.5 cm ; 635 g |
